Waterproof Ip67 Built in Buzzer Alarm or Human Voice Alarm Car Parking Sensor
US$ 1 - 200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Parking Sensor System
Voltage:
DC 24V
Power:
less than 20W
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW FOB SZ/HK/GZ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.4-5m Detection Range Anti-collision Radar System With Big LED Display, Beep Alert or Voice Alarm in English OptionalUS$ 1 - 100MOQ: 10 Sets -
PS-7008 Truck Parking Sensor System, Bus Parking Sensor System, Heavy Duty Parking Sensor System With 0.4-5m Sensor DetectionUS$ 1 - 200MOQ: 1 Set
-
PS-5004 Wireless Car Parking Sensor System With 0.4-3.5m Sensor DetectionUS$ 50 - 100MOQ: 1 Set
-
PS-5001 Car Parking Sensor System With 0.4-3.5m Sensor DetectionUS$ 50 - 100MOQ: 1 Set
-
Car Anti-collision Parking Sensor System With 5 Inch LCD Monitor DisplayUS$ 1 - 200MOQ: 1 Set
Type
Parking Sensor System
Voltage
DC 24V
Power
less than 20W
Car Make
heavy duty vehicles
Place of Origin
Guangdong, China
Brand Name
OEM&ODM welcome
Model Number
PS-7016F
Warranty
1 Years
Product Description

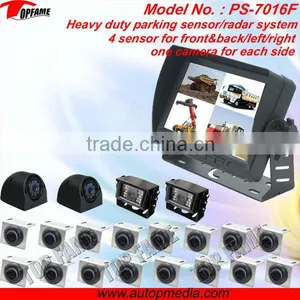

Waterproof Ip67 built in buzzer alarm or human voice alarm car parking sensor
- Waterproof Ip67 built in buzzer alarm or human voice alarm car parking sensor
- with 4 high resolution camera for four side of the vehicle

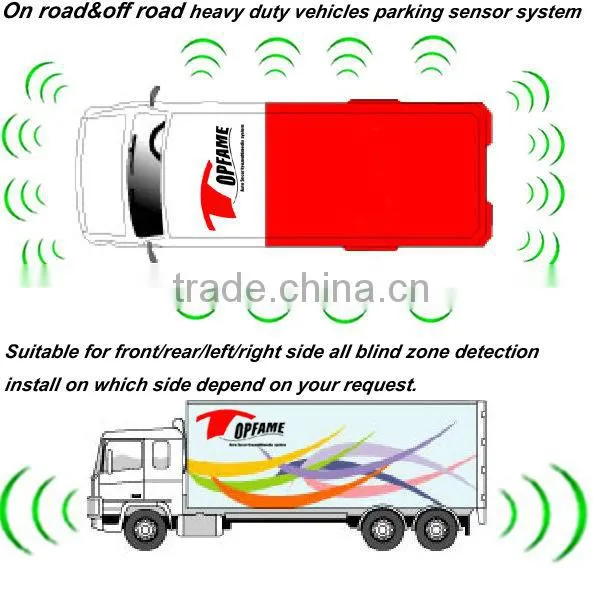

- with 4sensor for front & back & left & right side blind zone detection
- 7inch digital LCD monitor with split screen can help driver see all blind zone.
- Ideal for heavy duty vehicles safe parking, safe driving.
System Feature:
- -- high sensitive sensor with 0.4-5m range detection

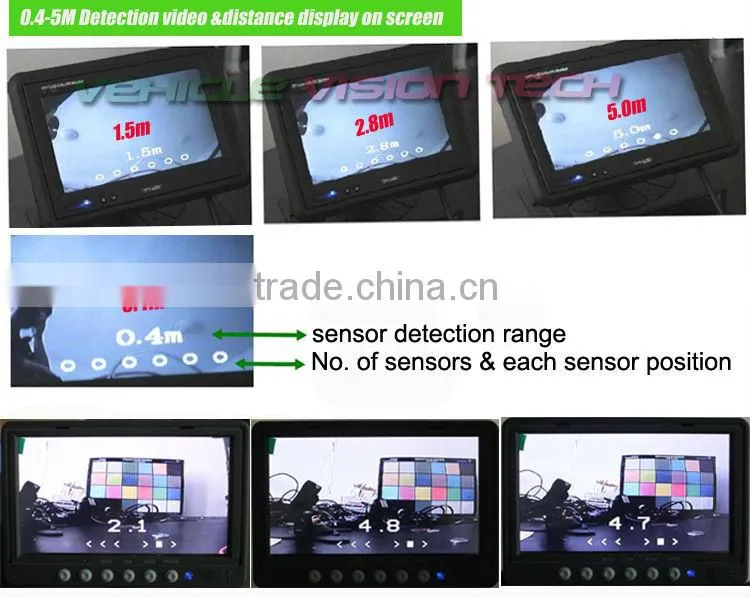

- -- each sensor corresponds to a point and display on screen
- -- industrial design metal housing control box with waterproof, anti-shock, anti-interference
- -- 7inch TFT LED monitor display clear rear vision and distance of the vehicle on screen

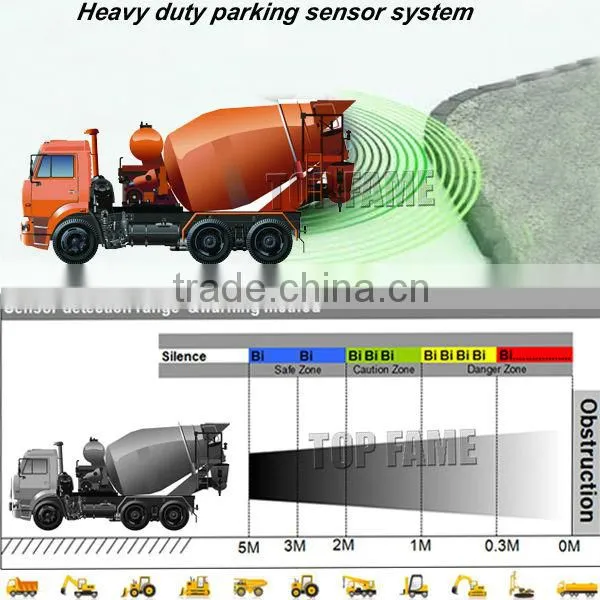

- -- built in buzzer alarm or human voice alarm indicate step by step
- -- waterproof, day&night vision camera provide clear picture
- -- DC12-24V wide operation voltage for all vehicles
- -- sensor with rubber or metal bracket optional
- -- full set waterproof, anti-shock, anti-interference can work in harsh environment

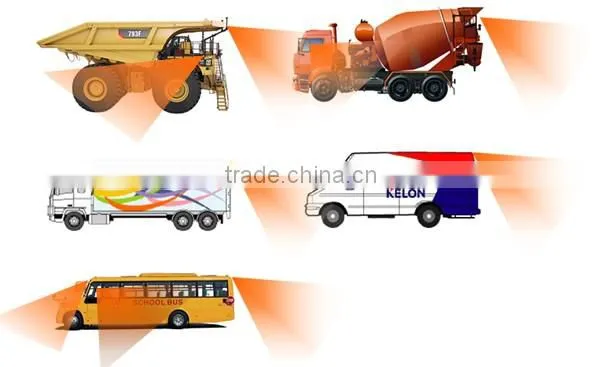

- -- Ideal for various vehicles for back side blind zone detection
Optional:
- -- 0.4-10m range detection optional
- -- with beep, beep,,,, alarm control optional
- -- with cam mic, beep alarm together optional
- -- with different length video cable or sensor cable optional

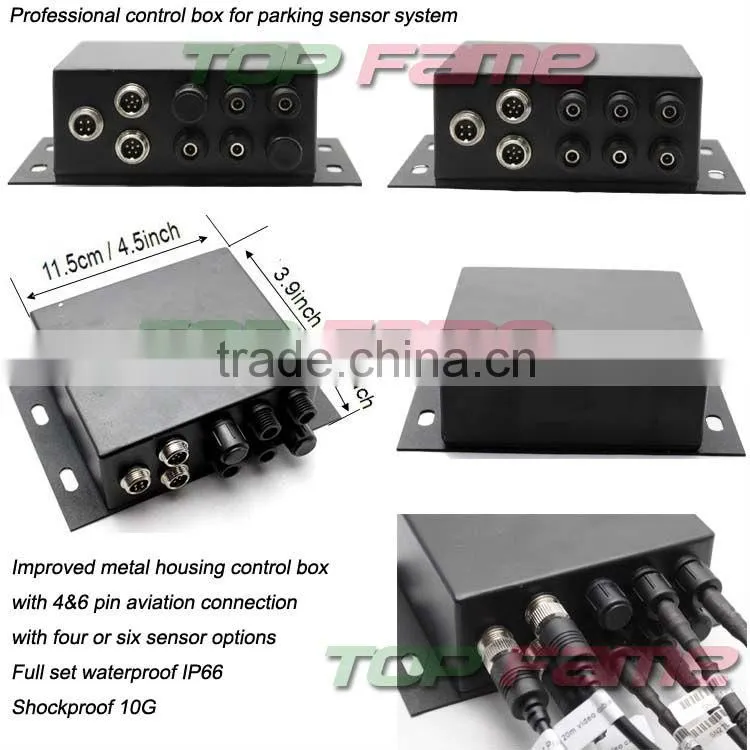

Control Box spec
- -- Rated voltage: 24V
- -- Rated Power: <20W
- -- detection range: 0.4 ~ 5m
- -- Display Resolution: 0.1m
- -- Detection angle: single angle 70 ° ± 15 °
- -- Supply 12V power to monitor, camera
- -- Operating Temperature: -40 ° C ~ +80 ° C
- -- Waterproof: IP66
- -- Shockproof: 10G
-

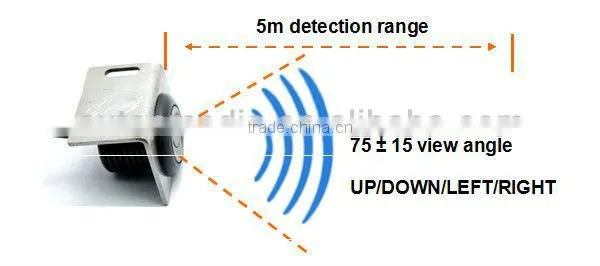

Sensor detection distance:
- -- Concrete wall: 16.4ft(5m)
- -- Vehicle: 6.6-5ft(2m-1.5m)
- -- Person: 5ft(1.5m)
- -- Post(75mm diameter): 6.6ft(2m)
- -- Single Sensor detection angle: 80 ° ± 15 ° U/D/L/RM
- -- Waterproof rate: IP67
- -- Sensor installation height: .6M--1.3M
- -- Sensor installation space between two sensors: 0.2M--0.3M
- -- vehicle width ≥3M can install 6 sensors
- -- Sensor with metal bracket/rubber bracket optional
-
Monitor Spec
- -- 7" digital panel MONITOR
- -- Ratio: 16:9 /4:3
- -- Pixel: 800*480
- -- System: PAL/NTSC auto switch
- -- Video input: 2 way
- -- Audio input: 1 way optional
- -- Backup: V2 auto reverse
- -- View angle: U/D/L/R
- -- Adjustable image brightness/color/contrast
- -- With remote control and OSD menu
- -- Power supply: DC12V
- -- Current: 0.7A
- -- Luminance: 300-400/m2
- -- Operating temp.:-10°C ~ 60°C
- -- Device size:171*125*19mm(W/H/D)
- -- weight: 550g
-
Camera Spec
- -- ImageSensors: 1/4" Sharpe 1/3"Sharpe CCD
- -- -1/3"SonyCCD OR 1/4", 1/3" CMOS
- -- TV System:PAL / NTSC
- -- waterproof rate:Ip67
- -- Effective Pixels:512 x 582 pixels / 512 x 492 pixels
- -- 752x582 pixels / 768×494 pixels
- -- Resolution:420TV lines
- -- Minimum Illumination:1.0Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
- -- Pin Lens:f=2.8mm / F = 2.0
- -- Lens Angle:90/120/170°
- -- Vertical Sync. Frequency:50Hz / 60Hz
- -- Video Output:1.0vp-p, 75Ohm
- -- Power Supply:DC12V
- -- Current Consumption:≤300mA
- -- Electronic Shutter:1/60 ~ 1/10,000 Seconds
- -- Gamma Consumption:0.45
- -- S/N Ratio:Better than 48Db
- -- Scanning System:2:1Interlace
- -- Operating Temperature:-20°C~70°C ,RH95% MAX
- -- Storage Temperature:-40°C~85°C ,RH95% MAX
-

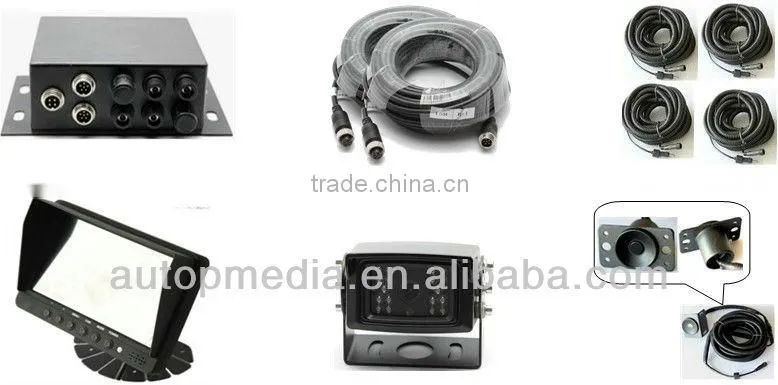

Packaging included:
- -- 7inch DIGITAL LCD MONITOR x 1
- -- 1/4" CCD Camera x 4
- -- Infrared LED light: 18pcs x 1
- -- 5m aviation camera cable x 4
- -- 2.25m aviation sensor cable x 16
- -- High sensitive parking sensor (0.4m-5m detect distance) x16
- -- Beeper built in

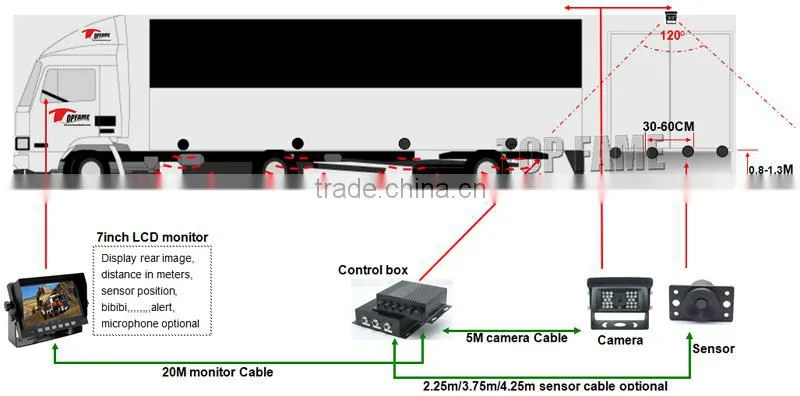

Parking sensor/radar system connection

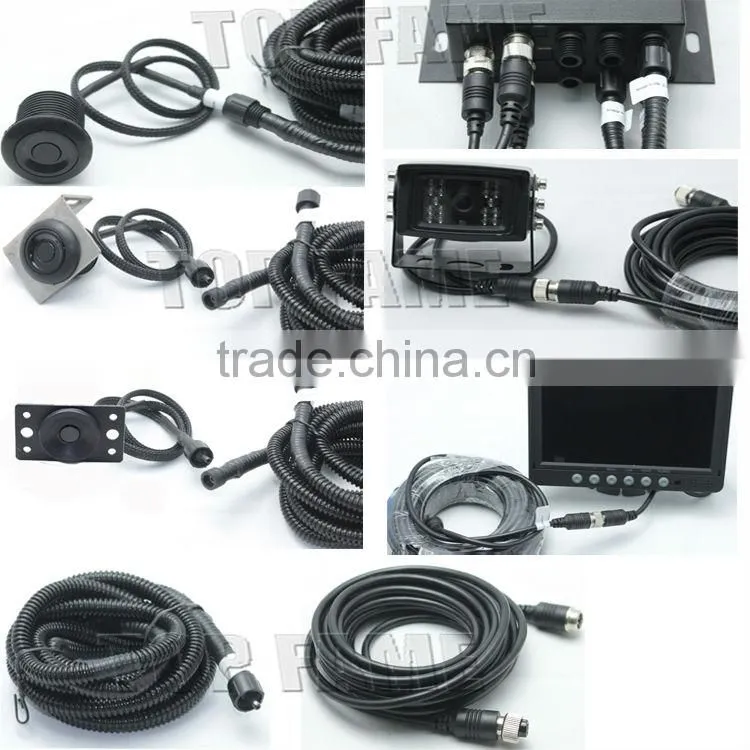

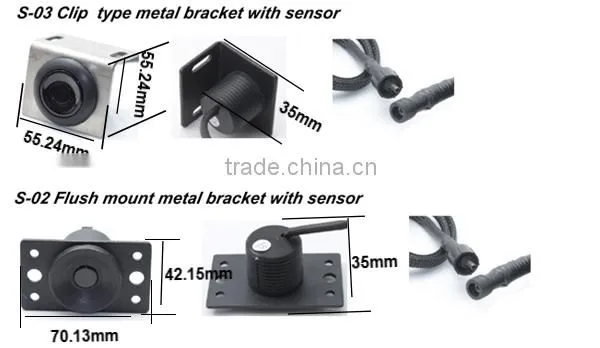

Sensor with different bracket optional
Camera work with sensor together display distance and iamge, audio(optional) on screen in the cab.
