Help Center0.4-5m Detection Range Anti-collision Radar System With Big LED Display, Beep Alert or Voice Alarm in English Optional
Related Products
-
PS-7008 Truck Parking Sensor System, Bus Parking Sensor System, Heavy Duty Parking Sensor System With 0.4-5m Sensor DetectionUS$ 1 - 200MOQ: 1 Set -
PS-5004 Wireless Car Parking Sensor System With 0.4-3.5m Sensor DetectionUS$ 50 - 100MOQ: 1 Set
-
PS-5001 Car Parking Sensor System With 0.4-3.5m Sensor DetectionUS$ 50 - 100MOQ: 1 Set
-
Car Anti-collision Parking Sensor System With 5 Inch LCD Monitor DisplayUS$ 1 - 200MOQ: 1 Set
-
PS-7008-2 Heavy Duty Anti-collision Parking Sensor System With LCD Monitor DisplayUS$ 1 - 200MOQ: 1 Set

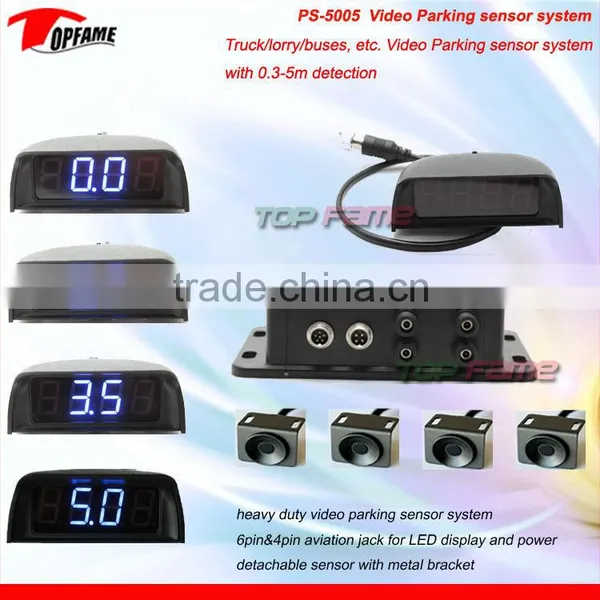

PS-5005 professional car parking sensor system for various vehicles.
Truck/Bus/Lorry/Vans, etc. Parking Sensor System
A, 0.4m-5m detection parking sensor system suitable for all kinds of trucks, large vehicles, buses, construction
machinery, off-road machinery etc. With body within 10 meters.
B, LED monitor display Time while driving forward, and detect obstacles distance and direction precisely and display on the LED monitor automatically while reversing
C, Control box with PCABS casing, with waterproof/anti-shock/anti-interference design
D, LED display monitor with built in buzzer alarm or human voice alarm
E, Detachable sensor with water resistant connector, with anti-collision design, with rubber/metal sensor bracket optional
F, Cable: 6PIN waterproof, anti-shock, anti-interference design
Optional:
with 0.3-5m sensor detection range optional
with 0.3-10m sensor detection range optional
with beep alarm or lady voice alarm optional
Sensor with rubber or clip or embed metal bracket optional

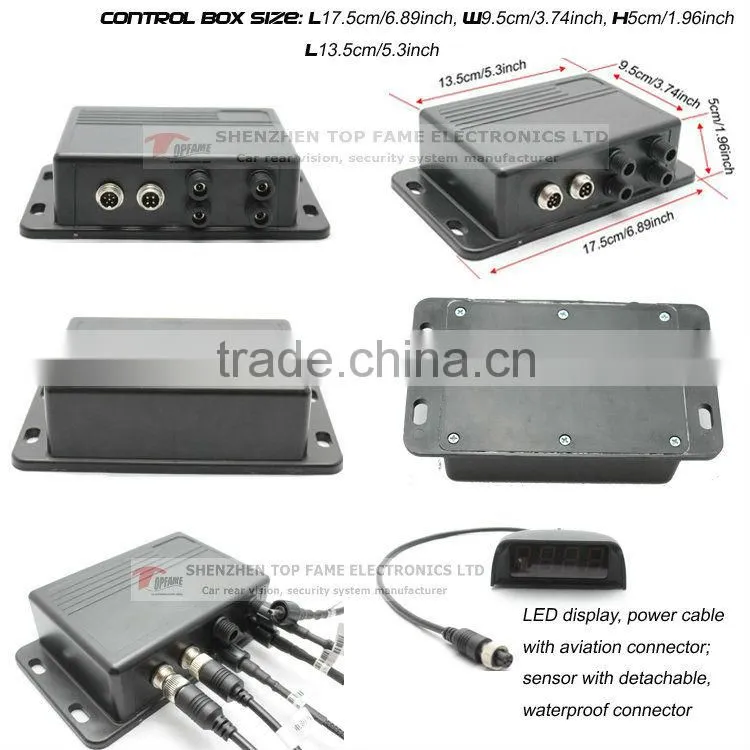

Control Box spec
Rated voltage: 24V
Rated Power: <8W
detection range: 0.4 ~ 5M Max.
Display Resolution: 0.1m
Detection angle: single angle 70 ° ± 15 °
Operating Temperature: -40 ° C ~ +80 ° C
Waterproof: IP66
Shockproof: 10G

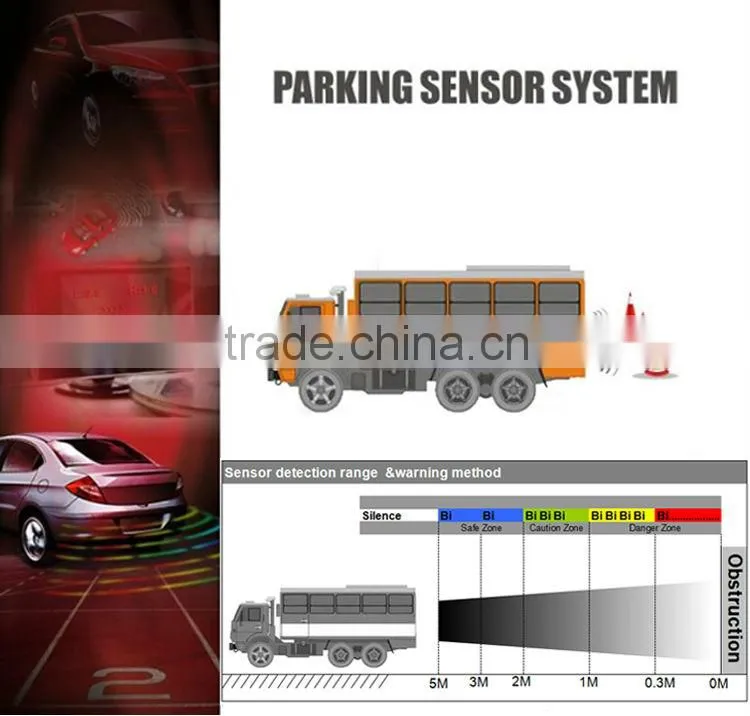

Sensor detection distance:
Concrete wall: 16.4ft(5m)
Vehicle: 6.6-5ft(2m-1.5m)
Person: 5ft(1.5m)
Post(75mm diameter): 6.6ft(2m)
Single Sensor detection angle: 80 ° ± 15 ° U/D/L/R
Waterproof rate: IP67

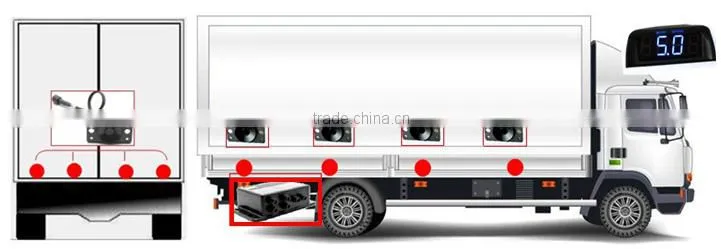

Sensor installation height: .6M--1.3M
Sensor installation space between two sensors: 0.2M--0.3M
Sensor with metal bracket/rubber bracket optional

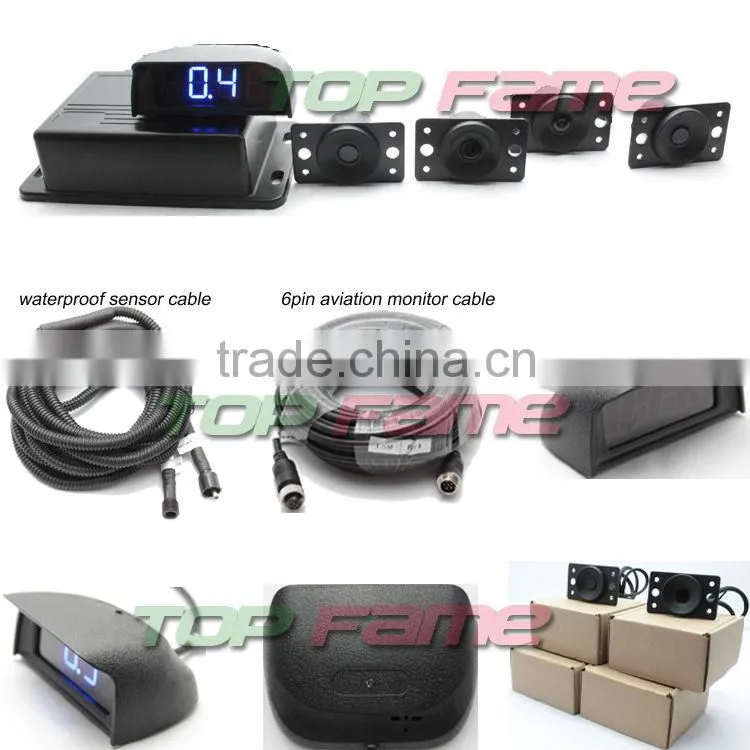

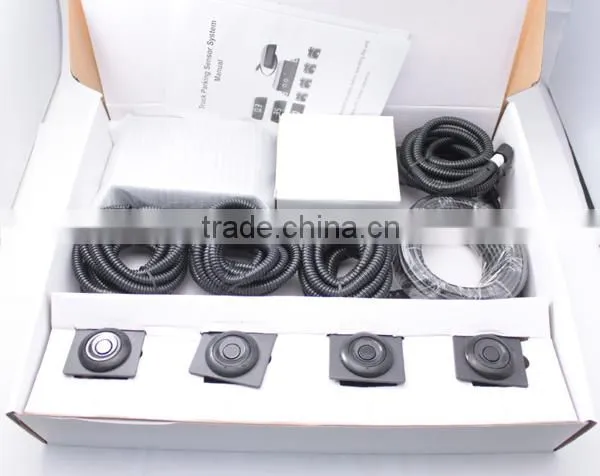

Packaging included:
Control box x 1
Detachable Sensor x 4
2.25m sensor cable x 4 (3.75m/4.25m optional)
LED display x 1
10m LED display monitor cable x 1 (10m, 15m, 20m optional)
0.5m power cable x 1
Cooperated heavy duty vehicles company&fleet
With different type of sensor bracket optional
