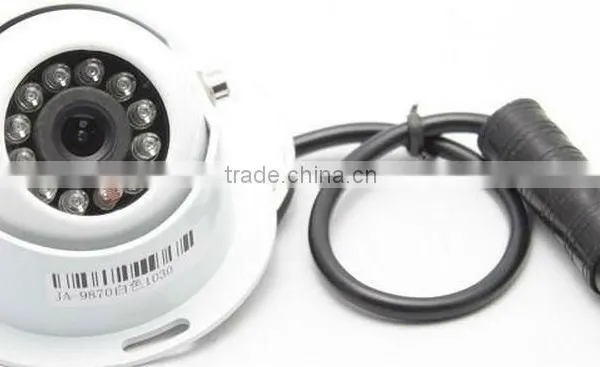

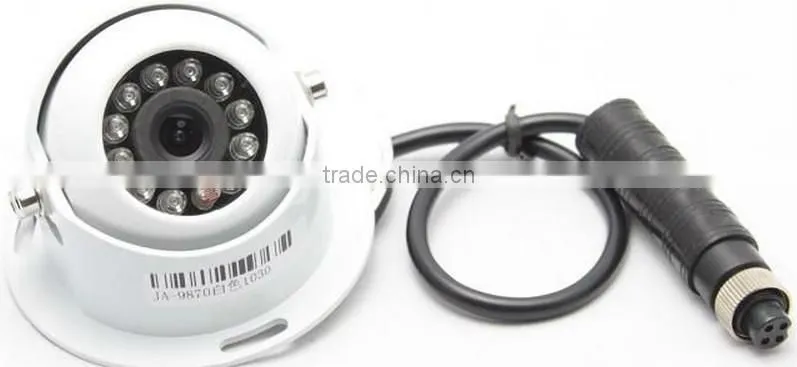

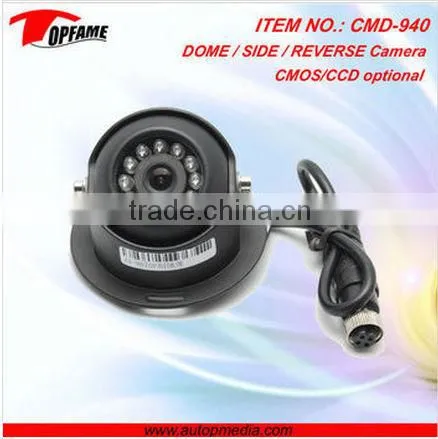

CMD-940 truck side view camera for truck /mini bus /school bus reversing

Specifications

CMD-940 truck side view camera
with night vision
infrared LED light : 18pcs
90/120degree field view

CMD-940 waterproof ir truck side view camera for truck /mini bus /school bus



Image Sensors: OV7950 /OV7949/1030

TV System:PAL / NTSC

waterproof rate:Ip67

Effective Pixels:628x582 pixels / 656×492 pixels

Resolution:420TV lines

Minimum Illumination:1.0Lux / F1.2

Pin Lens:f=3.6mm / F = 2.0

Lens Angle:90/120°

Vertical Sync. Frequency:50Hz / 60Hz

Video Output:1.0vp-p, 75Ohm

Power Supply:DC12V

Current Consumption:≤200mA

Electronic Shutter:1/60 ~ 1/10,000 Seconds

Gamma Consumption:0.45

S/N Ratio:Better than 48Db

Scanning System:2:1Interlace

Operating Temperature:-20°C~70°C ,RH95% MAX

Storage Temperature:-40°C~85°C ,RH95% MAX



1/4" 1/3" SHARP /SONY CCD specification

Image Sensors: 1/3" 1/4" SHARP, SONY CCD

TV System:PAL / NTSC

waterproof rate:Ip67

Effective Pixels:512 x 582 pixels / 512 x 492 pixels

Resolution:420TV lines

Minimum Illumination: 0.8Lux / F1.2 (0Lux IR ON)

Pin Lens:f=2.8mm / F = 2.0

Lens Angle:120°

Vertical Sync. Frequency:50Hz / 60Hz

Video Output:1.0vp-p, 75Ohm

Power Supply:DC12V

Current Consumption:≤300mA

Electronic Shutter:1/60 ~ 1/10,000 Seconds

Gamma Consumption:0.45

S/N Ratio:Better than 48Db

Scanning System:2:1Interlace

Operating Temperature:-20°C~70°C ,RH95% MAX

Storage Temperature:-40°C~85°C ,RH95% MAX



Packaging included:

1/3" 1/4" CMD/CMOS /CCD camera x 1



6m video cable x 1



1.5m power cable x 1



5M, 10M, 15M, 20M, 25M extension cable optional



different type of camera optional
