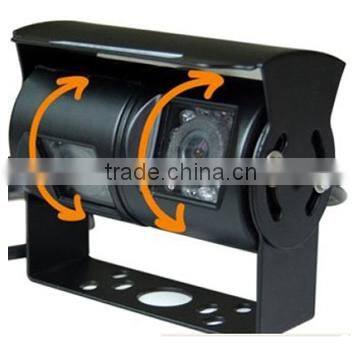

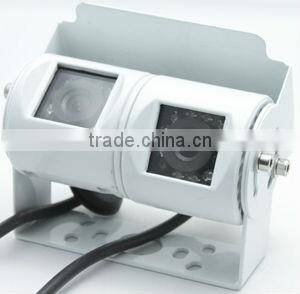

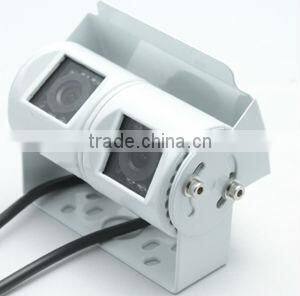

CMD-1000 2 Lens Truck/bus CMD/CMOS /CCD Camera With Night Vision, 90/120field View

CMD-1000 2 Lens Truck/bus CMD/CMOS /CCD Camera With Night Vision, 90/120field View thumbnail-1
CMD-1000 2 Lens Truck/bus CMD/CMOS /CCD Camera With Night Vision, 90/120field View photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Reverse Camera
Voltage:
DC 12V
Power:
≤200mA
Contact Supplier Request Quote Chat Now
Shenzhen Top Fame Electronics Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
EXW / FOB SZ/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Reverse Camera
Voltage DC 12V
Power ≤200mA
Car Make universal
Place of Origin Guangdong, China
Brand Name OEM/ODM
Model Number CMD-1000
Warranty 1 Years

Specifications

CMD-1000 truck reverse camera with night vision
vision 10M distance
90/120 field view
With aluminum alloy shell

CMD-1000 double LENS truck camera with CMD/CMOS, night vision, waterproof

 CMD-1000 2 lens truck/bus CMD/CMOS /CCD camera with night vision, 90/120field view

Image Sensors: OV7950 /OV7949/1030

TV System:PAL / NTSC

waterproof rate:Ip67

Effective Pixels:628x582 pixels / 656×492 pixels

Resolution:420TV lines

Minimum Illumination:1.0Lux / F1.2

Pin Lens:f=3.6mm / F = 2.0

Lens Angle:90/120°

Vertical Sync. Frequency:50Hz / 60Hz

Video Output:1.0vp-p, 75Ohm

Power Supply:DC12V

Current Consumption:≤200mA

Electronic Shutter:1/60 ~ 1/10,000 Seconds

Gamma Consumption:0.45

S/N Ratio:Better than 48Db

Scanning System:2:1Interlace

Operating Temperature:-20°C~70°C ,RH95% MAX

Storage Temperature:-40°C~85°C ,RH95% MAX



1/4" 1/3" SHARP /SONY CCD specification

Image Sensors: 1/3" 1/4" SHARP, SONY CCD

TV System:PAL / NTSC

waterproof rate:Ip67

Effective Pixels:512 x 582 pixels / 512 x 492 pixels

Resolution:420TV lines / 520lines

Minimum Illumination: 0.8Lux / F1.2 (0Lux IR ON)

Pin Lens:f=2.8mm / F = 2.0

Lens Angle:120°

Vertical Sync. Frequency:50Hz / 60Hz

Video Output:1.0vp-p, 75Ohm

Power Supply:DC12V

Current Consumption:≤300mA

Electronic Shutter:1/60 ~ 1/10,000 Seconds

Gamma Consumption:0.45

S/N Ratio:Better than 48Db

Scanning System:2:1Interlace

Operating Temperature:-20°C~70°C ,RH95% MAX

Storage Temperature:-40°C~85°C ,RH95% MAX



Packaging included:

1/3" 1/4" CMD/CMOS /CCD camera x 1

6m video cable x 1

1.5m power cable x 1

5M, 10M, 15M, 20M, 25M extension cable optional

different type of camera optional



CMD-1000 2 lens truck/bus CMD/CMOS /CCD camera with night vision, 90/120field viewCMD-1000 2 lens truck/bus CMD/CMOS /CCD camera with night vision, 90/120field view

CMD-1000 2 lens truck/bus CMD/CMOS /CCD camera with night vision, 90/120field view

CMD-1000 2 lens truck/bus CMD/CMOS /CCD camera with night vision, 90/120field view
