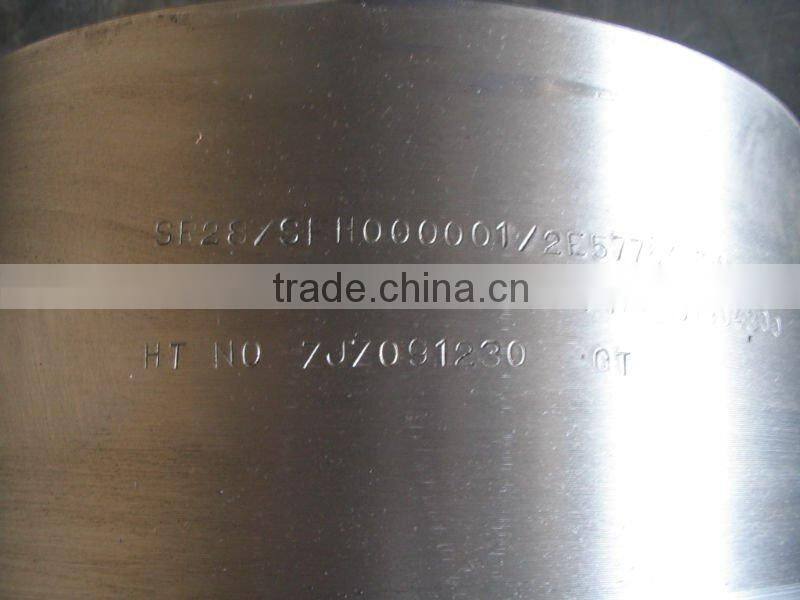

Help CenterTrunnion Plate Forging
Related Products
Specifications
Focus on process quality & stage inspection.The third-part inspection(TPI)
Integral test bars are taken from forgings.
1. 24"FB(600NB) TRUNNION PLATE(RM)
2. Material: ASTMA182 Grade F316
3. OD: 618mm / ID: 425mm / H: 78mm
4. Net Weight: 119.5kg
5. Hardness: 154HB
6. Forging confirm to NACE MR 0175 2003
7. State Of Heat Treatment: Solution Treated + Quenched
8. Ultrasonic Testing carry out Criteria: ASTM A338 with ASME B16.34
9. C=0.024%
10. IGC as per ASTM A 262 "E"
Our company is ISO9001:2000 Cetified for the production & Sevice of forging steel parts of valves & flanges and design & production and service of fuel gas parts.
All procedures of forging and heat-treatment and machining are completed in our own fored shop ,heat-treatment shop and machining shop.
All the procedures of production are recorded, so it is very easy to trace.
We have carried out the International Third-Party Inspection (TPI) on products and have got EN10204 3.2 Certificate.
