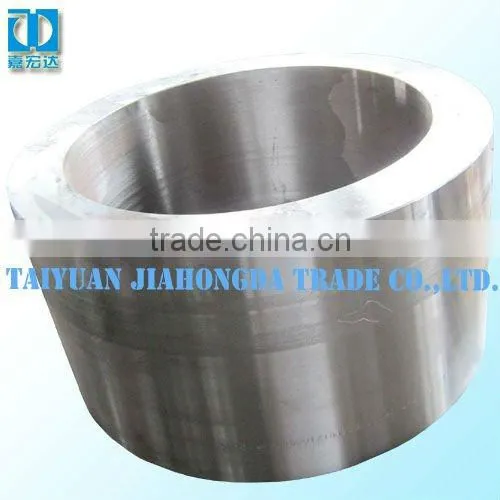

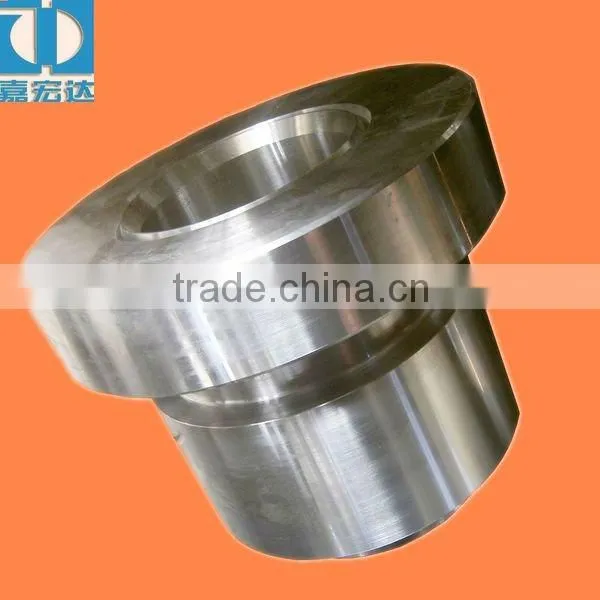

ANSI LF2 stem housing forging parts

Specifications

1 ISO9001:2008
2 LF2 stem housing
3 application:oil production
4 International Third Party Inspection
5 test block

Detail Information

Chemical composition:

C=0.19%       Mn=1.00%     P=0.01%     S=0.006%      Si=0.29%     Cr=0.03%   Ni=0.01%     Mo=0.01%    Cu=0.01%

V=0.01%       Cb=0.01%      CE=0.37%

Mechnical properties:

Yield strength=393Mpa    Tensile strength=588Mpa    Elongation=30.0Mpa   Reduction of area=74.8Mpa

Hardness=148HB

Heat treatment:

Quenched:910°c x 3.42HRS & AIR COOLED

Tempered:600°c x 3.33HRS & AIR COOLED

Weight=53KGS

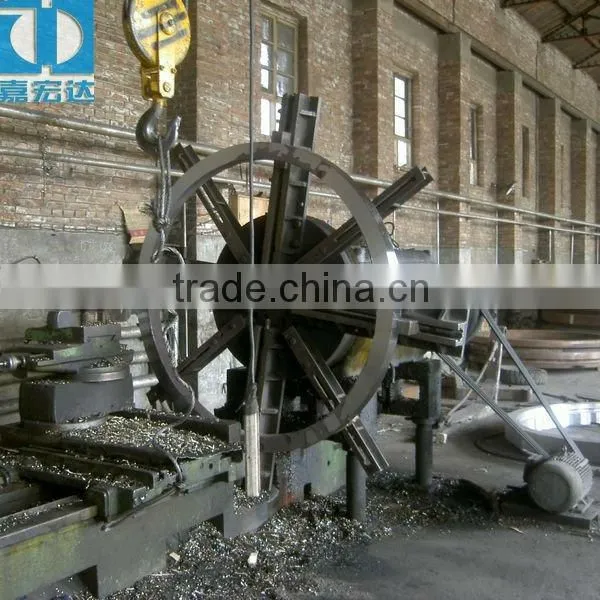

We have our own forging shop,machining shop & heat treatment shop.

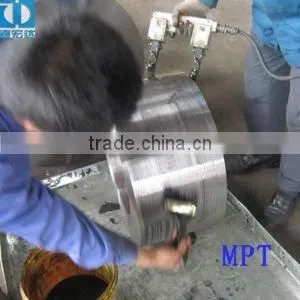

We focus on progress quality & stage inspection!

Test block taken from the forging for chemical & physical test is submitted along with consignment.



Other products for your choice!

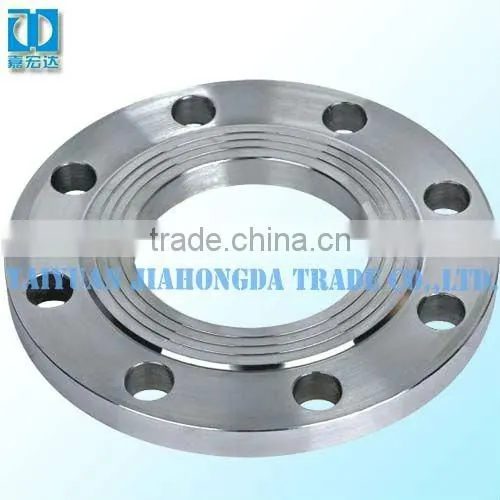

Main products:forged flange(slip-on flange,welding neck flange,socket welding flange,threaded flanged,lap joint flange,blind flange,ring joint flange,long welding neck flange) & free forgings(body,body adapter,stem housing,trunning plate,seat ring…) & hot rolled ring , hot rolled  flange,elbow,pipe fittings,tee,cross,cap...

 Packing:
