Help CenterASTM A105 Multi-purpose Stem Housing Free Forging
Related Products
-
A105 Carbon Steel in Many Industries Stem Housing Free ForgingUS$ 35 - 35MOQ: 5 Pieces -
Carbon Steel in Many Industries Stem Housing Free ForgingUS$ 35 - 35MOQ: 5 Pieces
-
Carbon Steel With Oil Industry Stem Housing Free ForgingUS$ 185 - 195MOQ: 5 Pieces
-
Steel With Oil Industry Stem Housing Free ForgingUS$ 185 - 195MOQ: 5 Pieces
-
A105 Stem Housing Free ForgingUS$ 105 - 110MOQ: 5 Pieces
Specifications
Focus on process quality & stage inspectionMaterial:ASTM A105
Hardness:148HB
Heat-treatment:N+T
Guarantee period:One year
SERVICE
1.Best quality
2.Professional service
3.Full set quality control
4.Competitive price
PROMISE
Within a year of products appear non-artificial and non-natural disaster damage,free replacement.
PRODUCT INFORMATION

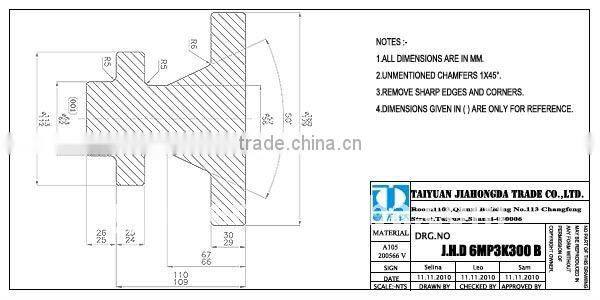

DRAWING
Certificate contains:
1.Chemical composition
C% |
Mn% |
P% |
S% |
Si% |
Cb% |
0.19 |
1.00 |
0.01 |
0.006 |
0.29 |
0.01 |
Cr% |
Ni% |
Mo% |
Cu% |
V% |
|
0.03 |
0.01 |
0.01 |
0.01 |
0.01 |
2.Mechanical properties
Yield=339Mpa |
Tensile=507Mpa |
Elongation=38.8Mpa |
Reduction=74.0Mpa |
Minimum reduction ratio of product is 4:1 |
|
3.Heat treatment
Heat-treatment:N+T
4.Hardness:148HB
Complies with NACE MR 0175
5.100% Ultrasonic examination
As per ASME A355&ASME B16.34

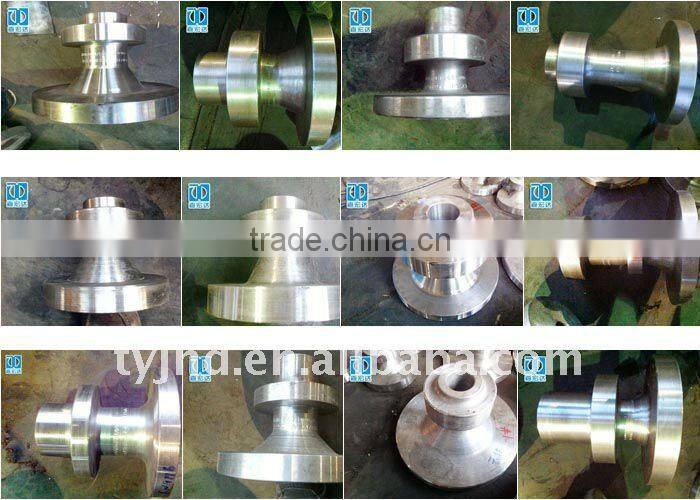

Finished product

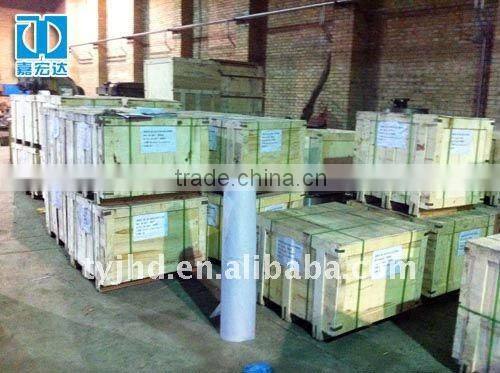

Rustproof packaging
1.Products surface brush anticorrosive oil.
2.Package plastic film.
3.Plywood case suited to sea shipping.
About us
Our company is ISO9001:2008 Certified for the production and service of foring steel parts of valves and flanges and design.
Manufacture of large-scale forgings and large high neck flange in technology and performance is superior to the same industry.
1.Two hundred people high skill of forging machining team to ensure the accuracy of machining process.
2.Three big professional inspection team to ensure that the quality products.
3.All the procedures of production are recorded and traceability and offer the EN10204 3.1 Certificate.
4.According to the customer request can be third-party inspection(TPI).
Look forward to contact us to know more product information.
