Specifications
1.ISO9001:20082.International Third Party Inspection(TPI)
3.Test block/bar
4.Hardness:150-187
5.EN10204:3.1/3.2,MPT/UT
Focus on process quality & stage inspection
Full set quality control
Professional service
Competitive price
Best quality
About us
For the forging,the material of our capability include all kinds of steel(like CC/CS/Martensitic Steel/Duplex SS)
Our company is ISO9001:2008 Certificate for the production and service of forging steel parts of valves and flanges and design.Manufacture of large-scale forgings ang large high neck flange in technology and performance is superior to the same industry.
1.The visual & dimension & hardness on component are inspected & tested.
2.All procedures of production are recorded & traceability and offer the 3.1 certificate.
3.According to customer demand,we would carry out the intermational Third-Party Inspection(TPI) and offer EN10204 3.2 Certificate.
4.The integral test bars for mechanical property are taken from location of forings.

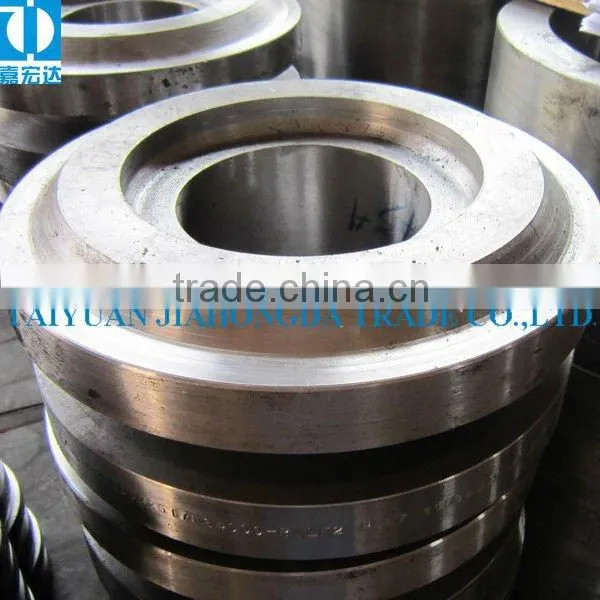

Details about this piece in the picture
1.Chemical composition
C%=0.171 Mn%=0.830 P%=0.009 S%=0.007 Si%=0.214 Cr%=0.012 Ni%=0.001 Mo%=0.003 Cu%=0.009 V%=0.002
2.Mechanical properties
Y.S.=349Mpa T.S.=548Mpa E%=35.5% R.A.%=71.0% Hardness=156/154HB
3.Heat treatment:Q+T
4.UT: As per ASME B16.34 Appendix IV
5.Impact testing :In accordance with ASTM A370
6.Material certification : 3.2 certification
7.Material must conforms to NACE MR 0175/ISO 15156-2009
Our basic concern is customer satisfaction with price, quality and delivery times first!
Welcome to your enquiry!
