Help CenterSeamless Oil Industry With Body Adapter Free Forging
Related Products
-
Seamless Industrial Valves With Body Adapter Free ForgingUS$ 170 - 180MOQ: 5 Pieces -
ANSI Carbon Steel Open Die Forgings With Magnetic Partial TestingUS$ 1,716 - 1,785MOQ: 2 Pieces
-
ANSI Carbon Steel Open Die Forgings DrawingUS$ 1,615 - 1,785MOQ: 2 Pieces
-
ANSI Carbon Steel Hot Free ForgingsUS$ 135 - 145MOQ: 2 Pieces
-
ANSI Carbon Steel Hot Free ForgingsUS$ 135 - 145MOQ: 2 Pieces
Specifications
Focus on process quality & stage inspection.Material:ASTM A350 LF2
Hardness:150HB
Heat-treatment:Q+T
About us
Our company is ISO9001:2008 Certified for the production and service of foring steel parts of valves and flanges and design.
Manufacture of large-scale forgings and large high neck flange in technology and performance is superior to the same industry.
1.Two hundred people high skill of forging machining team to ensure the accuracy of machining process.
2.Three big professional inspection team to ensure that the quality products.
3.All the procedures of production are recorded and traceability and offer the EN10204 3.1 Certificate.
4.According to the customer request can be third-party inspection(TPI).
Service
1.Best quality
2.Professional service
3.Full set quality control
4.Competitive price
PRODUCT INFORMATION

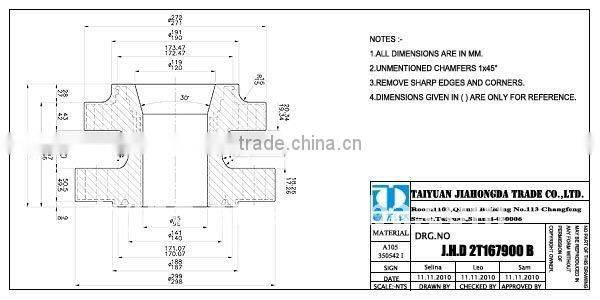

DRAWING
Certificate contains:
1.Chemical composition
C% |
Mn% |
P% |
S% |
Si% |
Cb% |
0.20 |
0.98 |
0.02 |
0.004 |
0.27 |
0.01 |
Cr% |
Ni% |
Mo% |
Cu% |
V% |
|
0.03 |
0.01 |
0.01 |
0.01 |
0.01 |
2.Mechanical properties
Yield=336Mpa |
Tensile=522Mpa |
Elongation=35.8Mpa |
Reduction=72.7Mpa |
Minimum reduction ratio of product is 4:1 |
|
3.Heat treatment
Heat-treatment:Q+T
4.Hardness:150HB
Complies with NACE MR 0175

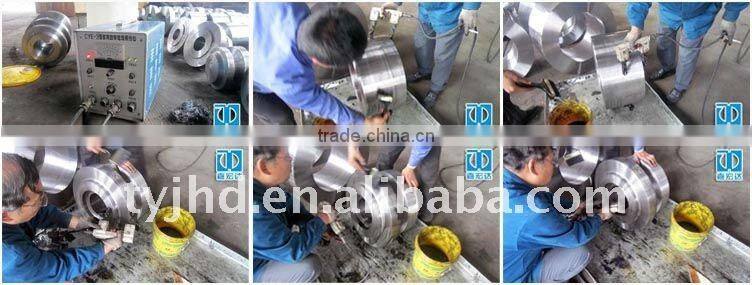

5.Ultrasonic examination report
As per ASME A355&ASME B16.34
6.Magnetic particle examination
As per ASME B16.34-2004 APPENDIX II
TYPING
Rustproof packaging
1.Products surface brush anticorrosive oil.
2.Package plastic film.
3.Plywood case suited to sea shipping.
Look forward to you contact to us to know more product information.
