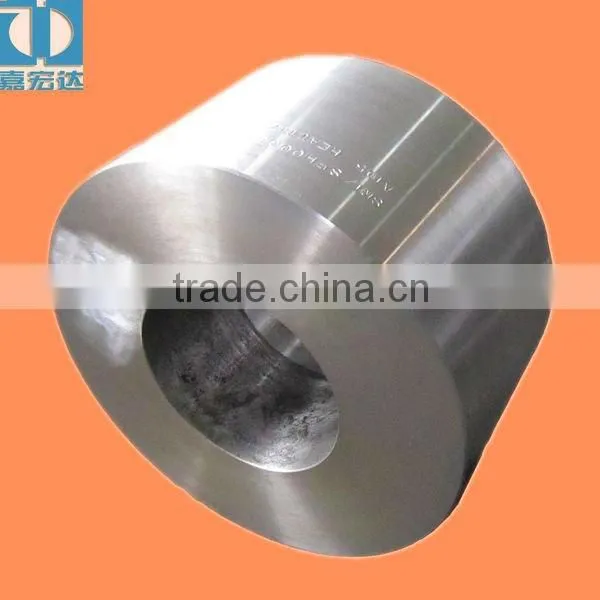

ANSI A105 cylinder body of valve forging parts
- 200 Piece / Pieces per Month
- tianjin
- T/T
Product Details
Place of Origin: | Shanxi, China | Brand Name: | JHD | Model Number: | ANSI B16.5 class900 |
Application: | flow control | Material: | Steel | Dimensions: | 3"FB(80NB) |
Product Description
Specifications
1 ISO9001:20082 A105 cylinder body of valve
3 application:flow control
4 International Third Party Inspection
5 test block
Detail Information
Chemical composition:
C=0.20% Mn=0.98% P=0.02% S=0.004% Si=0.27% Cr=0.03% Ni=0.01% Mo=0.01% Cu=0.01%
V=0.01% CE=0.37%
Mechnical properties:
Yield strength=337Mpa Tensile strength=556Mpa Elongation=31.6Mpa Reduction of area=74.6Mpa
Hardness=164HB
Heat treatment:
Normalized:900°c x 4.25HRS & AIR COOLED
Tempered:600°c x 4.92HRS & AIR COOLED
Weight=51KGS OD=271mm ID=128mm
We have our own forging shop,machining shop & heat treatment shop.
We focus on progress quality & stage inspection!
Test block taken from the forging for chemical & physical test is submitted along with consignment.
Other products for your choice!
Main products:forged flange(slip-on flange,welding neck flange,socket welding flange,threaded flanged,lap joint flange,blind flange,ring joint flange,long welding neck flange) & free forgings(body,body adapter,stem housing,trunning plate,seat ring…) & hot rolled ring , hot rolled flange,elbow,pipe fittings,tee,cross,cap...
Packing:
Contact Us
- Taiyuan Jiahongda Trade Co., Ltd.
- Contact nameWenping Zhao
- Phone86-351-7593199
- AddressRoom1103,Qianxi Building,Changfeng Street,Xiaodian District,Taiyuan City,Shanxi Province,CHINA-030006 Taiyuan,Shanxi
