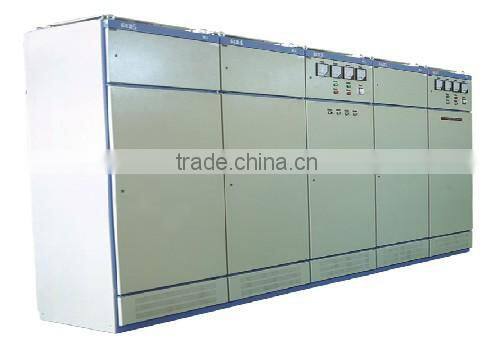

Description of GGD switchgear
circuit breaker of switchgear The GGD AC low-colt distribution cabinet is applied to certain distribution system of AC 50HZ,
rated work volt 380V, rated work current being 3150A or lower in power plant, transformer substation, mining enterprise etc, this product is mainly used for power transforming, distributing and controlling of power equipment, lighting and distribution equipment.
The GGD AC lowvolt distribution cabinet is one new low-volt distribution cabinet elaborately designed in the light
of safety, economical, reasonable and reliable principle for meeting the higher demand of energy-source ministr
y and majority of electrical customers. This product owns many advantages as high breaking capacity, well dynamic, thermal stability, flexible electric plan, upgraded product for low-volt completes set switch equipment.
The GGD AC low-volt distribution cabinet conforms with techinique demand of IEC439 <low-volt complete
set switch equipment and control equipment> and GB7251.1 <low-volt complete set switch equipment> etc.
Technical specification of MNS switchgear
Normal service conditions of switchgear as follows:
Ambient temperature: | |
Maximum |
+40℃ |
Maximum 24 hour average |
+35℃ |
Minimum (according to minus 15 indoor classes) |
-15℃ |
Ambient humidity: | |
Daily average relative humidity |
Less than 95% |
Monthly average relative humidity |
Less than 90% |
Height above sea level at site |
Less than 1000m |
Earthquake intensity |
Less than 8 degree |
Height above sea level |
Less than 2000m |
This product should not be used under conditions of fire, explosion, earthquake and chemical corrosion environments.
Item |
Unit |
Technical Data |
Rated voltage |
V |
380/660 |
Rated insulation voltage |
V |
660/1000 |
Rated frequency |
HZ |
50/60 |
Rated main bus bar max. current |
A |
3150 |
Rated short time withstand current of main bus bar (1s) |
KA |
50/80 |
Rated short time peak withstand current of main bus bar |
KA |
105/176 |
Rated distribution bus bar current |
A |
1000 |
Degree of protection |
|
IP30,IP40 |

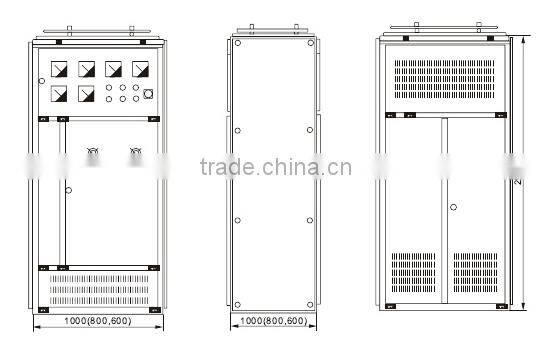

Structural drawing of GGD switchgear
Our promises
Quality assurance:All the products will go through the detailed quality inspection during production.
Manufactuer's price:Factory direct sale,competitive price.
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4. Good after-sale service offered, please get back if you got question.
5. Protection of your sales area, design drawing and all your private information.
