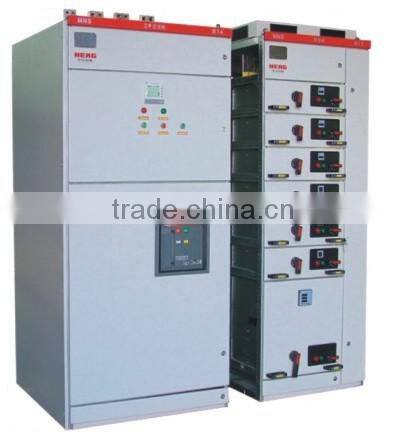

Description of MNS switchgear
wenzhou The product is a kind of modularized and multifunctional low voltage distributing switchgear. It is used in the low voltage systems below 4000A that need highly reliable operation such as metallurgy petroleum chemical industries mine enterprise, infra structures and so on.
Its body structures are flexible. It can install components of different types and specifications in the cubicle according to customers' demands or various service occasions; various kinds of feed units can be fixed in one cubicle or a row of cubicles according to different consumer. E.g. the feed circuit can be installed with the motor control circuit.
Performance Standard: IEC60439 GB7251.1.
Technical specification of MNS switchgear
Normal service conditions of switchgear as follows:
Ambient temperature: |
|
|
|
|
Maximum |
+40°C |
|
|
Maximum 24 hour average |
+35°C |
|
|
Minimum (according to minus 15 indoor classes) |
-15°C |
|
Ambient humidity: |
|
||
|
Daily average relative humidity |
less than 95% |
|
|
Monthly average relative humidity |
less than 90% |
|
|
Height above sea level at site |
less than 1000m |
|
Earthquake intensity |
less than 8 degree |
||
Height above sea level |
less than 2000m |
||
This product should not be used under conditions of fire, explosion, earthquake and chemical corrosion environments.
Item |
Unit |
Data |
Rated voltage |
V |
380 / 660 |
Rated insulation voltage |
V |
660 / 1000 |
Rated frequency |
Hz |
50 / 60 |
Rated main bus bar max. current |
A |
5500(IP00),4700(IP30) |
Rated short time withstand current of main bus bar(1s) |
kA |
100 |
Rated short time peak withstand current of main bus bar |
kA |
250 |
Rated distribution bus bar current |
A |
1000(IP30) |
Rated short time peak withstand current of distribution bus bar |
kA |
95 |
Degree of protection |
|
IP30,IP40 |

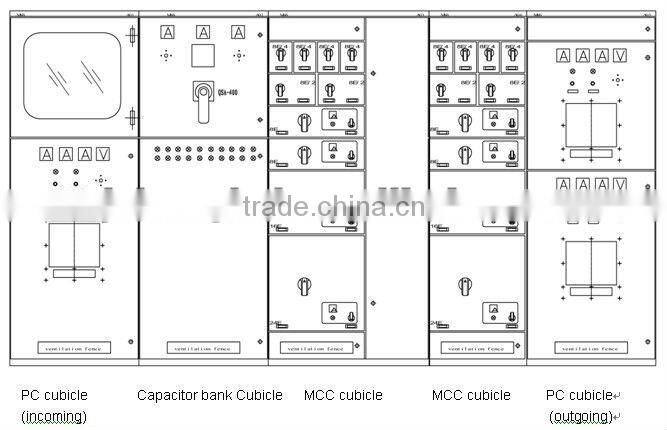

Structural drawing of MNS switchgear
Outline dimension of MNS switchgear
Dimension of motor control center (MCC) cubicle
Height H(mm) |
Width(mm) |
Depth(mm) |
Remarks |
||||
B |
B1 |
B2 |
T |
T1 |
T2 |
||
2200 |
1000 |
600 |
400 |
1000/800/600 |
400 |
600/400/200 |
Front operating |
2200 |
800 |
600 |
200 |
1000/800/600 |
400 |
600/400/200 |
|
2200 |
600 |
600 |
0 |
1000/800 |
400 |
600/400 |
|
2200 |
1000 |
600 |
400 |
1000 |
400 |
200 |
Front and rear operating |
2200 |
800 |
600 |
200 |
1000 |
400 |
200 |
|
