SMA Female Bulkhead Crimp Coaxial Connector for RG174 RG316 LMR100
1. Fast delivery
2. Low MOQ
3. ODM&OEM welcomed
4. High quality
5. Competitive price
Features
RoHS Compliant
Low V.S.W.R. / Low Loss Design / High Gain
High Efficiency and Sensitivity
Low Loss RF Coaxial Connector Cable Feed
Matching Free Design
Specification
A. Electrical Characteristics
Frequency: <= 12GHz
Impedance: 50 Ohm
S.W.R.: <= 1.3
Voltage (breakdown): > 500V
Insulation Resistance: >= 500 M ohm
Center Conductor Contact Resistance: <= 25 m ohm
Outer Conductor Contact Resistance: <= 15 m ohm
B. Material & Mechanical Characteristics
Material of Conductor: Brass (Cu)
Pull Test (Retention): >= 27 Kg (270N)
for Screw Type Pull-Engagement Force: <= 2.7 Kg (27N)
for Plug Type Pull-Separation Force: 1~2 Kg (10 ~ 20 N)
for Plug Type Mating Cycles: > 500
C. Environmental Operation Temperature: - 40 °C ~ + 65 °C
Storage Temperature: - 40 °C ~ + 80 °C

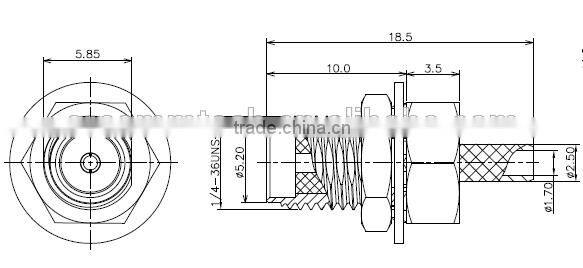

Size
10 pcs per PE bag, 1000pcs per carton. The carton size is 42*30*27cm
