N Male Connector Crimp Type

N Male Connector Crimp Type

1. Fast delivery

2. Low MOQ

3. ODM&OEM welcomed

4. High quality

5. Competitive price

Features

RoHS Compliant

Low V.S.W.R. / Low Loss Design / High Gain

High Efficiency and Sensitivity

Low Loss RF Coaxial Connector Cable Feed

Matching Free Design

Specification

A. Electrical Characteristics

Frequency:  <= 12GHz

Impedance: 50 Ohm

S.W.R.: <= 1.3

Voltage (breakdown): > 500V

Insulation Resistance: >= 500 M ohm

Center Conductor Contact Resistance: <= 25 m ohm

Outer Conductor Contact Resistance: <= 15 m ohm

B. Material & Mechanical Characteristics

Material of Conductor: Brass (Cu)

Pull Test (Retention): >= 27 Kg (270N)

for Screw Type Pull-Engagement Force: <= 2.7 Kg (27N)

for Plug Type Pull-Separation Force: 1~2 Kg (10 ~ 20 N)

for Plug Type Mating Cycles: > 500

C. Environmental Operation Temperature: - 40 °C ~ + 65 °C

Storage Temperature: - 40 °C ~ + 80 °C

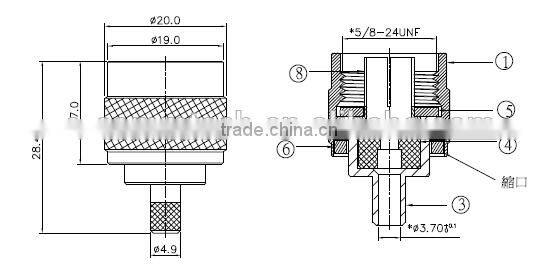

Size

10 pcs per PE bag, 1000pcs per carton. The carton size is 42*30*27cm

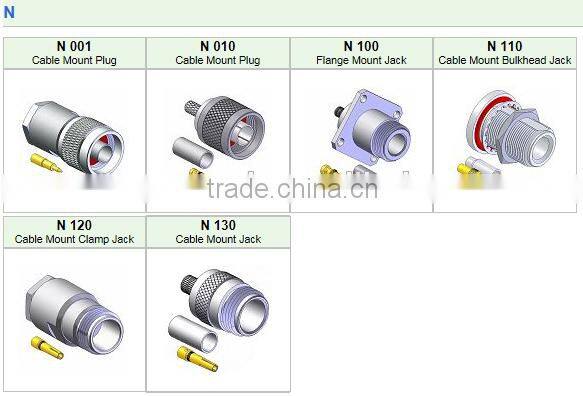

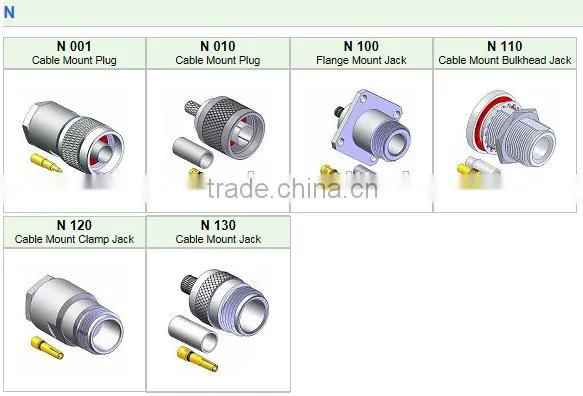

Other N Connectors
