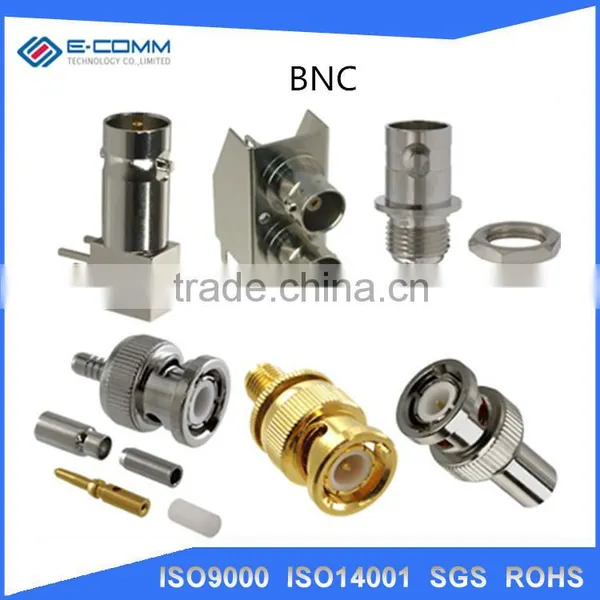

Help CenterBNC Straight Connector Waterproof BNC Electrical Compression Connector
Related Products
-
RF Connectors BNC/F/N/SMA/TNC/UHF Connectors for PCB Mount or Coaxial Cable BNC ConnectorsUS$ 0.4 - 1.5MOQ: 100 Pieces -
RG6 BNC Compression ConnectorUS$ 0.4 - 1.5MOQ: 100 Pieces
-
MMCX Male Right Angle Crimp Type RF ConnectorUS$ 0.5 - 2MOQ: 100 Pieces
-
MMCX Female Straight PCB RF Micro Coaxial ConnectorUS$ 0.5 - 2MOQ: 100 Pieces
-
SMB Crimp Jack Female Straight RF Connector for LMR195 RG58 RG400 RG142 CableUS$ 0.5 - 2MOQ: 100 Pieces
1. Fast delivery
2. Low MOQ
3. ODM&OEM welcomed
4. High quality
5. Competitive price
Features
Electrical Specifications
Impedance: 50 Ω nominal Or 75 Ω nominal
Frequency Range: 0-4 GHz with low reflection
Voltage Rating: 500 volts peak
Dielectric Withstanding Voltage: 1,500 volts rms
VSWR :Straight connectors: 1.3 max 0-4 GHz
Right angle connectors: 1.35 max 0-4 GHz
Contact Resistance
Center contact: 1.5 mΩ;
Outer contact: 0.2 mΩ
Insulation Resistance: 5,000 MΩ
Braid to Body: 0.1 milliohm
RF Leakage: -55 dB min at 3 GHz
Insertion Loss: 0.2 dB min at 3 Ghz
Material
Male Contact: Brass
Female Contact: Beryllium copper or phosphorous bronze,silver or gold-plated
Other Metal Parts: Brass, nickel finish
Insulator: TFE
Crimp Ferrule: Copper/brass

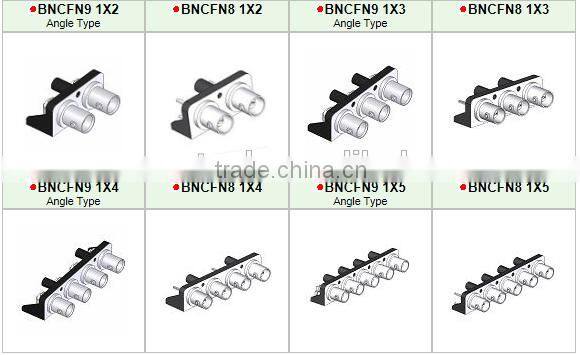

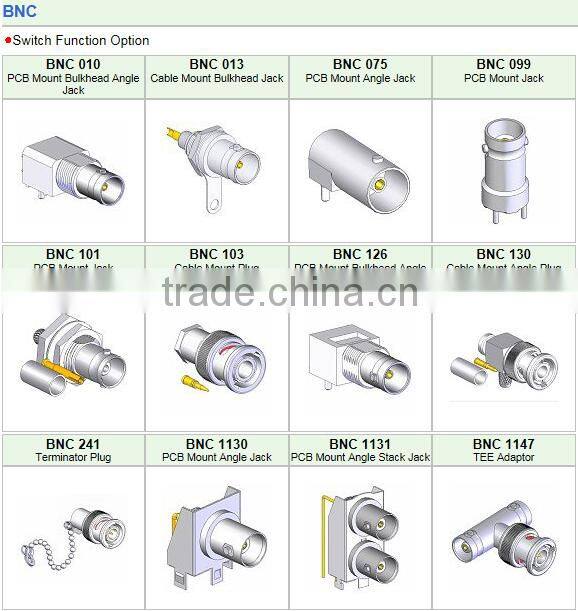

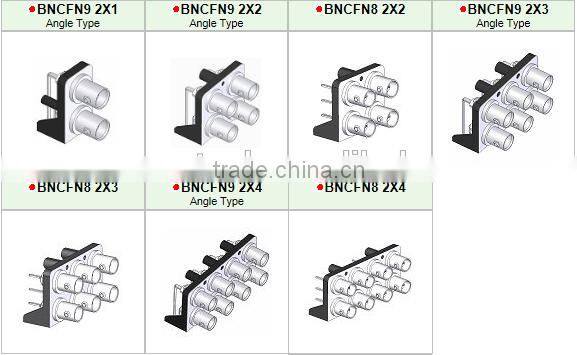

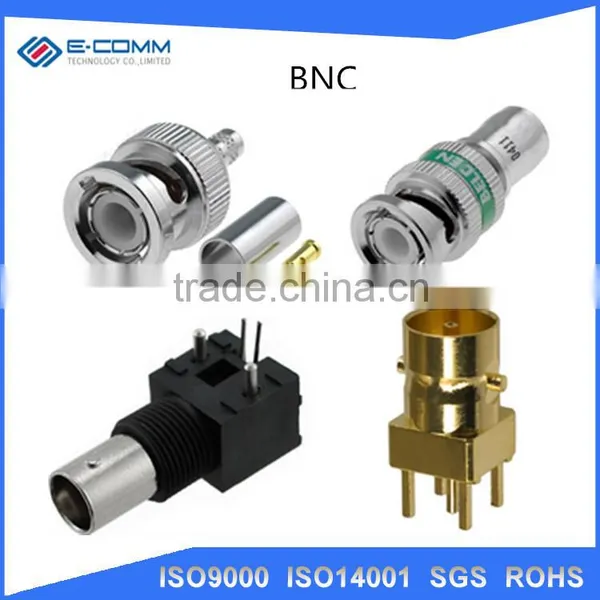

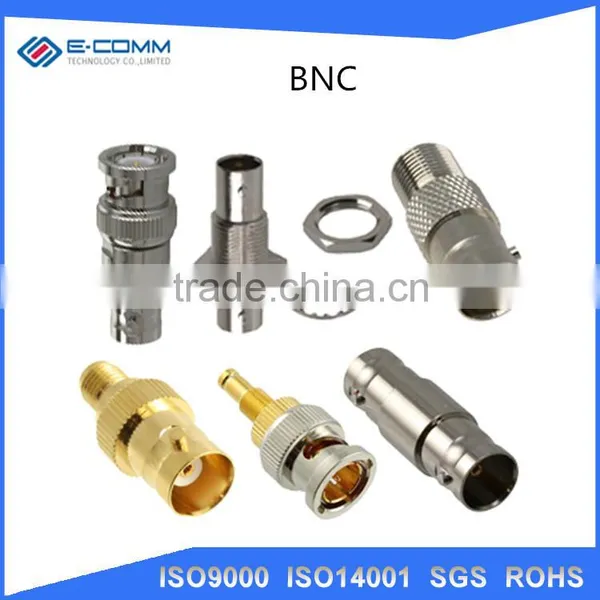

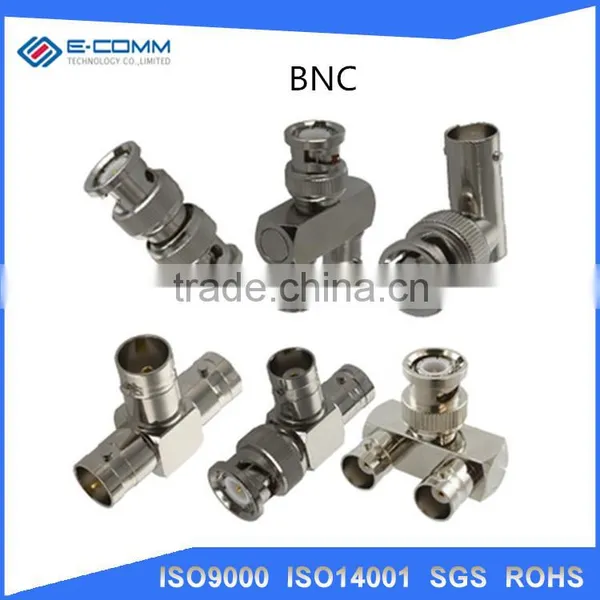

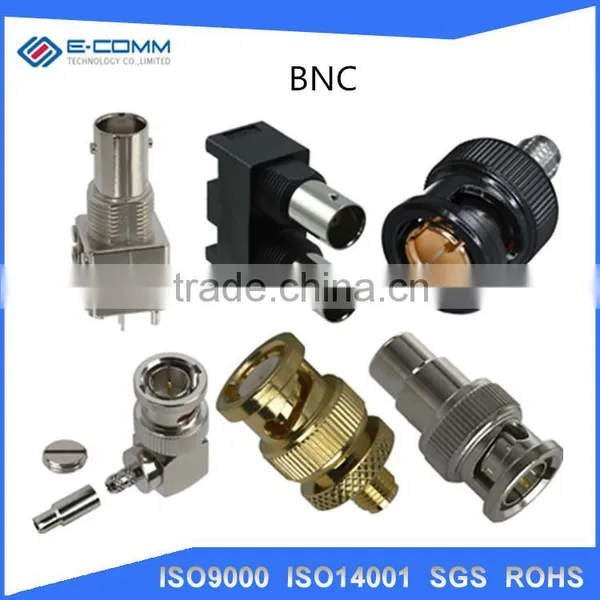

Product shows:
Packing and Shipping:
1.Standard packing : 1pc/polybag for inner packing ,Carton for outer packing or as customers' requirements.
2.Express delivery: UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.
Ours main test device:
We can offer you all the accurately date about ours all product from ours lab.
Include all these following items.
And make sure all the proseccing reject ratio is 0.
<This is ours promise for all ours customers.>
FAQ :
1,Q:what is you brand ?
A: E-comm antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost ,there we can free for two samples to you
3,Q: how much the shipping cost will be for sample ?
A :That depends on the weight and packing size of the package.
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can offer you the latest price.
Pls click here back to ours home page!
