MMCX Female Straight PCB RF Micro Coaxial Connector

1. Fast delivery

2. Low MOQ

3. ODM&OEM welcomed

4. High quality

5. Competitive price



Features



Electrical Specifications:
1.Impedance:50Ω
2.Frequency Range: DC - 6 GHz
3.VSWR: 1.06 max. @ DC - 2.5 GHz (straight)
1.1 max. @ DC - 2.5 GHz (right angle)
4.RF-Leakage :60 dB Min. @ 1 GHz (flexible cable)
70 dB Min. @ 1 GHz (semi-rigid cable)
5.Voltage Rating (at sea level):335 Vrms Min.
6.Contact Resistance:Center Contact: 5 mΩ Max.
Outer Contact:2.5 mΩ Max.
7.Insulation Resistance:10,000 MΩ Min.
8.Insertion Loss Max.: 0.10 dB @ 1 GHz
9.Dielectric Withstanding Voltage: 1,000 Vrms (at sea level)

Mechanical:
1.Mating:Snap-on coupling
2.Braid/Jacket Cable Affixment:Hex crimp
3.Center Conductor Cable Affixment:Solder
4.Contact Captivation:2.3 lbs (10N) Min.
5.Engagement Force :5.6 lbs (25N) Max.
6.Disengagement Force:2.3 lbs (10N) Min.
7.Durability (matings) 500 cycles Min.
8.Temperature Range -55°C to +155°C

Material:
1.Male Contact:Brass, 30μ gold plated
2.Female Contact:Beryllium copper, 30μ gold plated
3.Crimp Ferrule:Copper or brass, nickel plated
4.Other Metal Parts: Brass, nickel or gold lated
5.Insulator:PTFE
6.Gasket :Silicone rubber

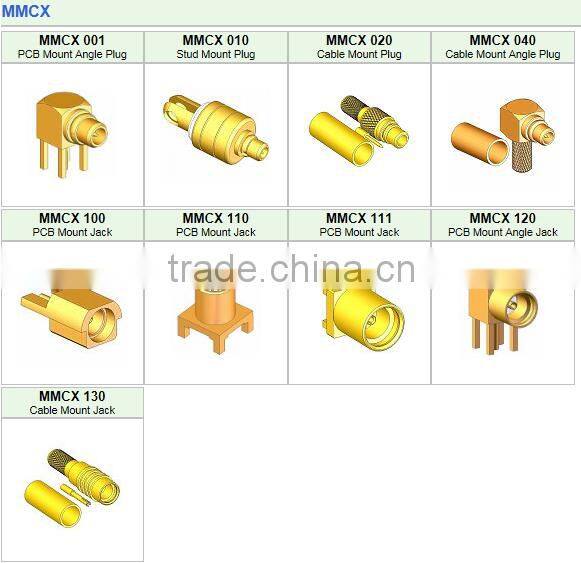

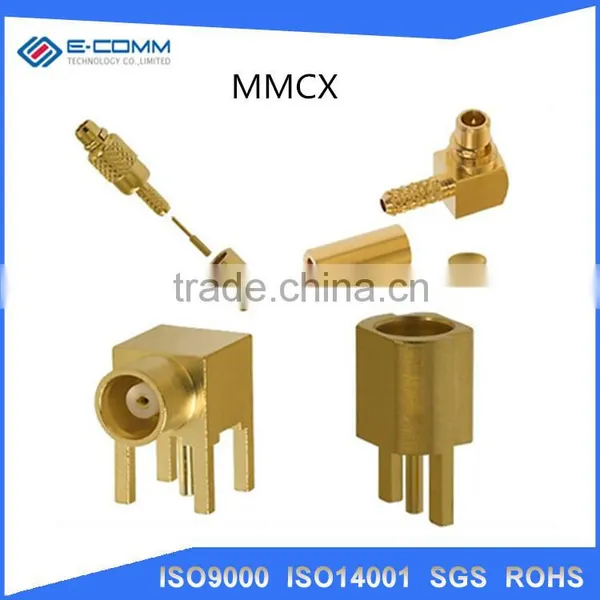

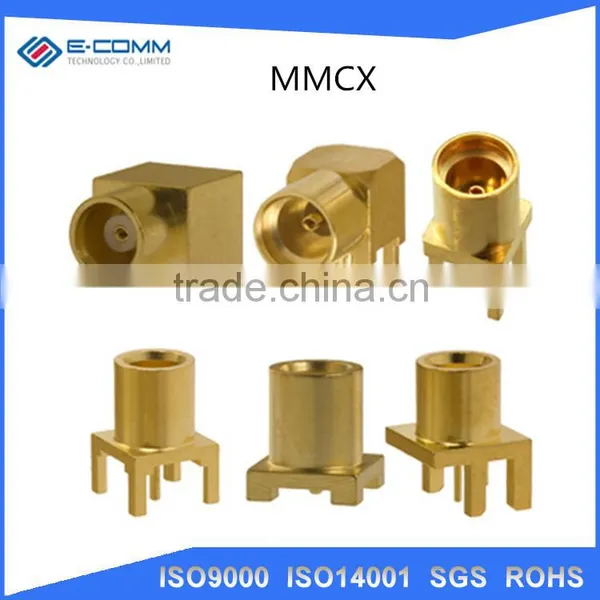

 Product shows:

















Packing and Shipping:

1.Standard packing : 1pc/polybag for inner packing ,Carton for outer packing or as customers' requirements.

2.Express delivery:  UPS / DHL / TNT / FEDEX / EMS/Air freight /Shipping to meet customers' need.















Ours main test device:



We can offer you all the accurately date about ours all product from ours lab.

Include all these following items.

And make sure all the proseccing reject ratio is 0.



<This is ours promise for all ours customers.>





FAQ :

 1,Q:what is you brand ?

 A: E-comm antennas



 2,Q:how can i get the sample ?

 A: if you need sample to test ,please pay for the shipping cost ,there we can free for two samples to you



 3,Q: how much the shipping cost will be for sample ?

 A :That depends on the weight and packing size of the package.



 4, Q :how can i get the price list ?

 A :please send the  email and order information  for us , so we can offer you the latest price.
