DAB Car Antenna, DAB Car Aerial, DAB/AM/FM Antenna

Application

This high performance DAB car antenna, DAB car aerial, DAB/AM/FM antenna provides broad coverage and 2dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for 98~162MHz ISM band applications as well as car applications.  Measuring 192mm long.

Features

RoHS Compliant

Low V.S.W.R. / Low Loss Design / High Gain

High Efficiency and Sensitivity

Low Loss RF Coaxial Connector Cable Feed

Matching Free Design

Specification

A. Electrical Characteristics

Frequency: 98 ~ 162 MHz S.W.R. <= 2.5@ 98 MHz / <= 2.0@ 162 MHz

Polarization:  Linear

Impedance: 50 Ohm

B. Material & Mechanical Characteristics

Material of Radiator: Spring Steel

Material of Plastic Body: TPEE

Connector Pull Test >= 3 Kg

C. Environmental Operation Temperature:  - 40 °C ~ + 65 °C Storage Temperature - 40 °C ~ + 80 °C

Antenna Color Storage life < 2 year

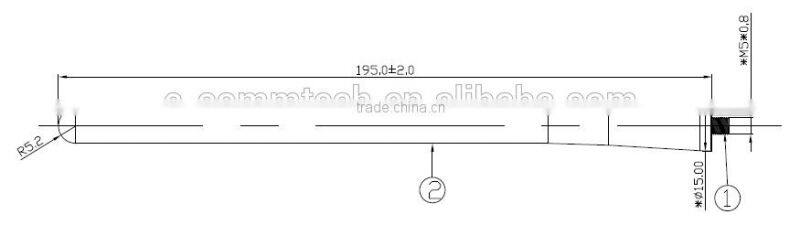

Size

20 pcs per PE bag, 200pcs per carton with size 25*25*25
