China manufacturer 4g lte flat patch directional satellite antenna with SMA,N female connector
Features:
1. - Light weight,small size,nice appearance
2. - Good appearance
3. - Durable ,corrosion resistance
4. - Provide with mount kits
5. - Optimized dimension
6. - Designed by board band technology
1.Specification
Product Name |
lte mimo 1800mhz antenna |
Frequency Range-MHz |
698-960/1710-2700 |
Bandwidth-MHz |
262/990 |
Gain-dBi |
7/9 |
Horizontal beamwidth-° |
75 |
Vertical beamwidth-° |
65 |
VSWR |
≤2 |
Input Impedance-Ω |
50 |
Polarization |
±45° |
Maximum Power-W |
50 |
Connector-type |
2*N-K |
Dimension-mm |
237*229*50 |
The conenctor have SMA male,N female and N male.you can choose anyone you need.

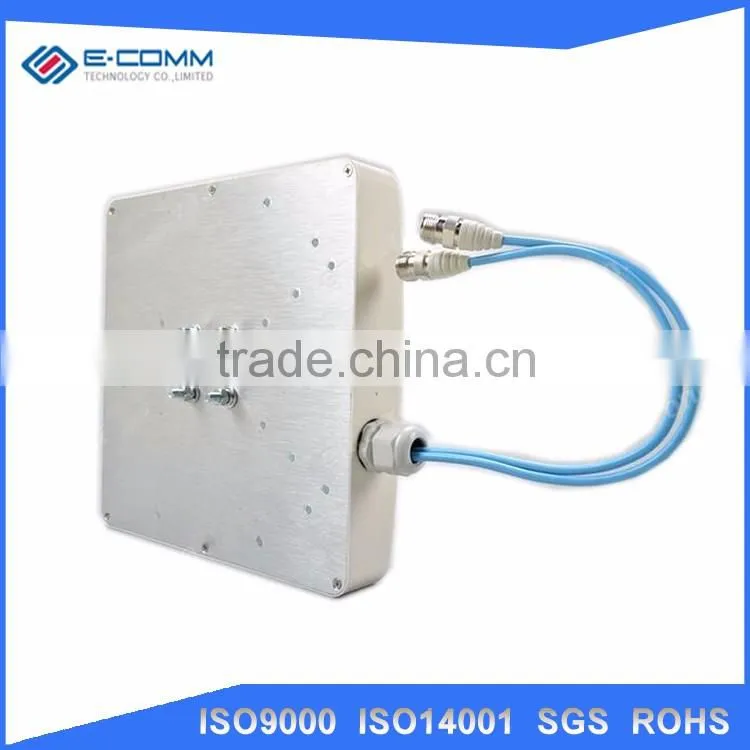

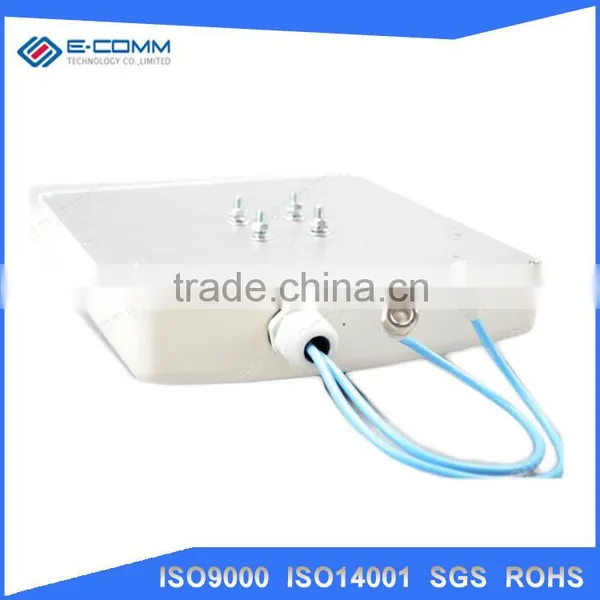

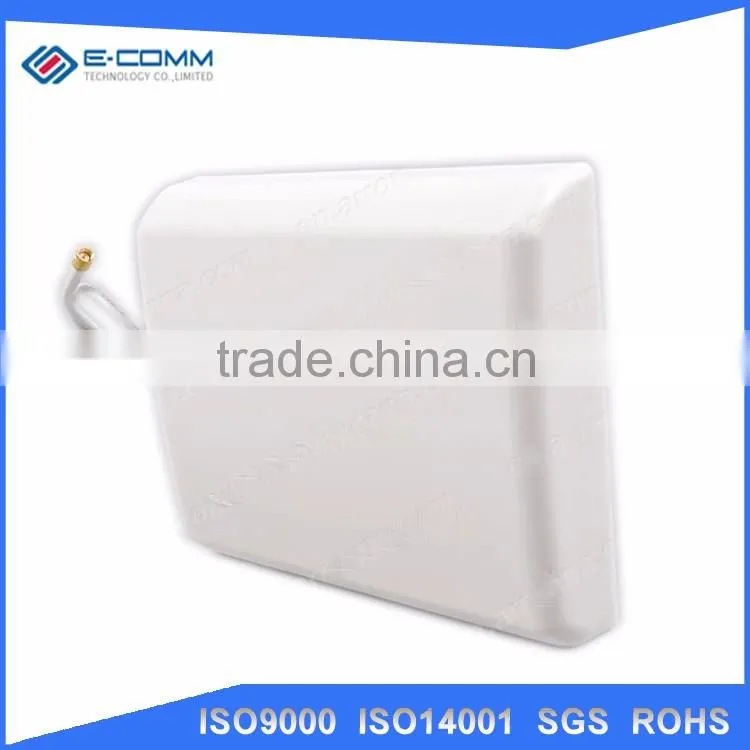

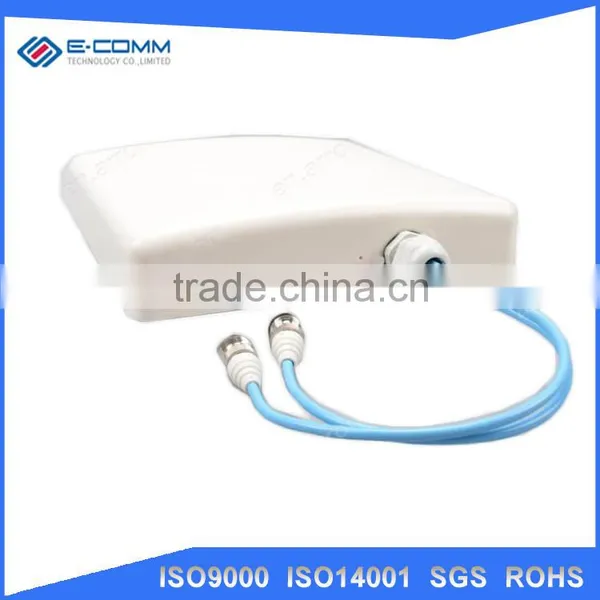

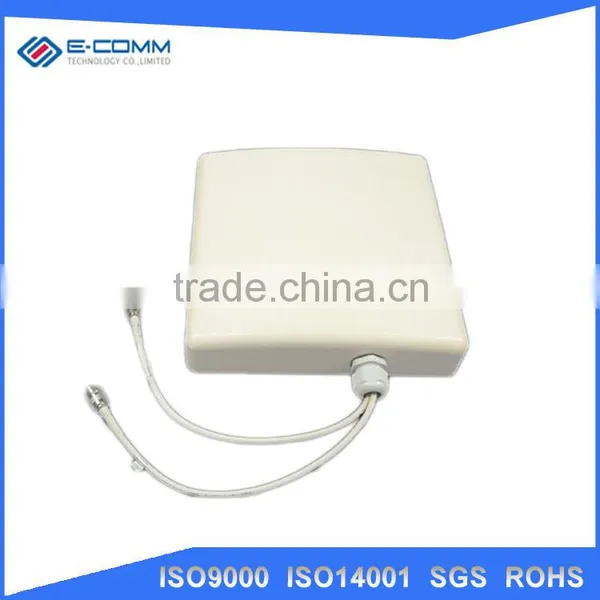

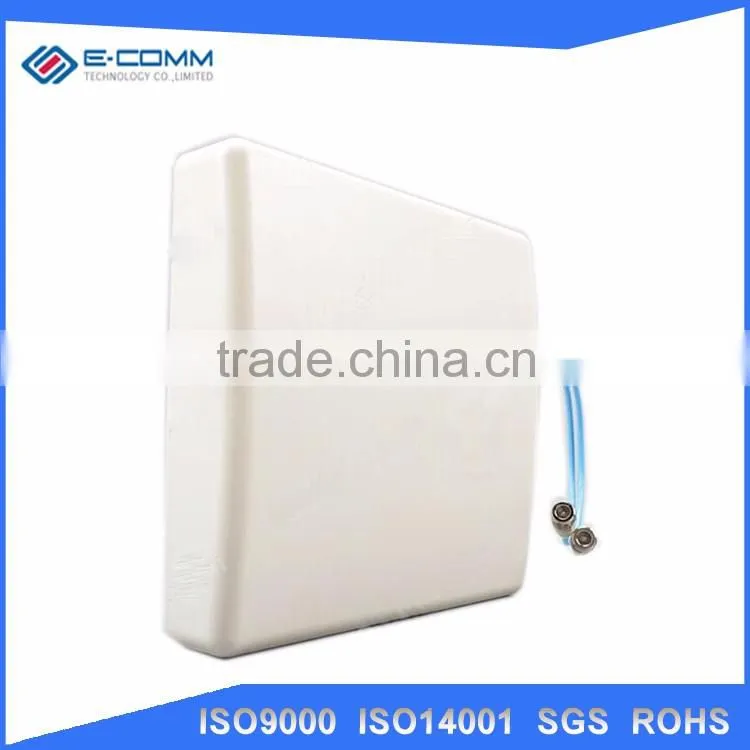

Product Shows:
