Help CenterBulk Cargo Semi Trailer for Sale
Related Products
-
Costomized Design 3 Axles Cargo TrailerUS$ 6,500 - 7,000MOQ: 1 Unit -
Costomized Design Bulk Cargo Truck TrailerUS$ 6,500 - 7,000MOQ: 1 Unit
-
Cargo Trailer Truck for SaleUS$ 6,500 - 7,000MOQ: 1 Unit
-
Above 40T Cargo Trailer for Sale (Platform Dimension is Optional)US$ 6,500 - 7,000MOQ: 1 Unit
-
Above 40T Car Carrier Trailers for Sale With Tailr-madeUS$ 6,500 - 7,000MOQ: 1 Unit
Specifications
Costomized design cargo truck trailer1)Double-reed buffered traction mechanism
2)180 degree rotation frame
3)Tailor-made
Costomized design bulk cargo semi trailer
1. Performance and application recommendation:
1 Double-reed buffered traction mechanism, having a buffered function when starting or braking the vehicle to avoid damage to the goods
2 Steering mechanisms is composed rotary by the Shanghai Machine Works (excavator hook arm rotary assembly) without fear of damage for 10 years.
3 The leading bridle can be adjusted up and down or fixed, just simplify to adjust according to different tonnage of truck traction or other tractions
4 Suspending vehicle frame, compared to the traditional hard-link (Weld), decreasing the long-term stress of vehicle’s body, longer life to use.
5. Axle automatically swing adjusted. Ensure the board level and tire force balance when on the rugged ground.
6. Front and rear wheel can be optional to equip with spring steel shock absorbers
, reducing the damage to the goods’ damage
7. Using domestic well-recognized brand constructional vehicles’ solid tires. high elasticity, abrasion resistance,
8.180 degree rotation frame, the minimum turning radius (180-degree turning on the spot)
9. Configuring with universal couplings, flexible operating.
10. Suitable for electrical appliances, plastic, metal, chemicals, light-heavy industries.
2. Instruction of parameters:
PT * A/B ** W- ** L ** S/H
PT: Rated load
A: With guardrail
B: Without guardrail
W: Platform’s width
L: Platform’s length
S/H: S: Solid tire; H: Hollow tire
3. Configuration instance:
PT15A-24W-48L-10S
(Customized different models or configurations according to customer requirements)
Model |
Tonnage(T) |
Driving Speed(KM/H) |
Specification |
Quantity and specification of tires |
Attachment |
Structure |
PT15A-24W-48L-10S |
15.0 |
20 |
2.4MX4.8M |
10: 600-9 |
Three 12th Main beam |
Dual Suspension |
1, Rated load: 15 tons
2, Height of the vehicle bearing surface: 700MM.
Size of vehicle body: 2400MMX4800MM
3, Quantity of tires: 10, Model 600-9 solid tires (Shanghai).
4, Main framework: 10th steel structure (Liuzhou steel). Main beam:20#steel
5, Surface: 4MM safety tread pattern.
6, Rotating body: 15 tons Shanghai Machine Works rotary composed.
7, Double - reed buffered traction mechanism (braking or starting buffer).
8, Suspension frame: 180 degree rotation stand.
9, Unilateral set four yards hook.
10, With a connector.
11, Barricade optional choose.

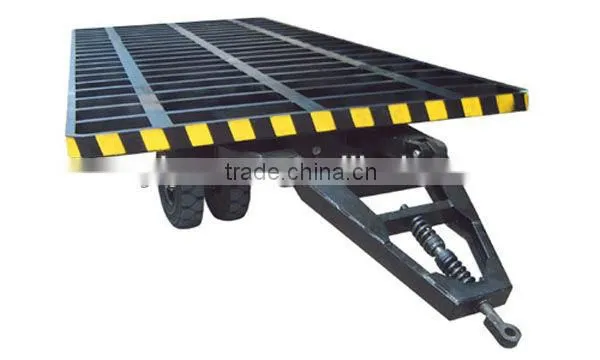

♦15T Without Barricade

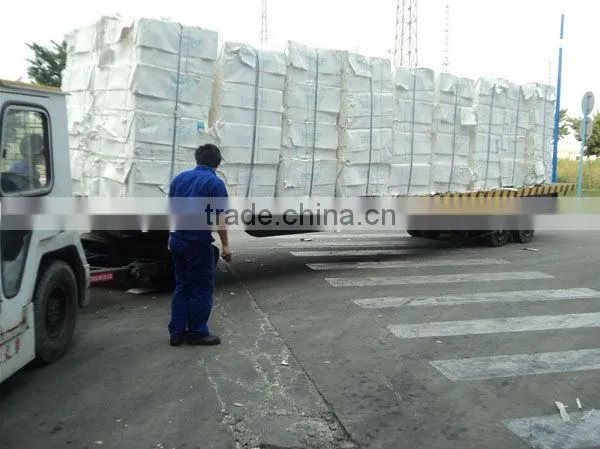

♦15T With a car
We can customized for your requirements!
The rated load
Platform dimension
Tyre amout/kind
Struction
Barricade
