Specifications

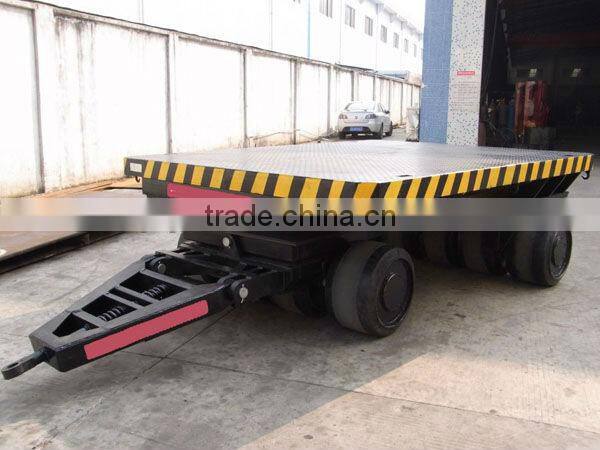

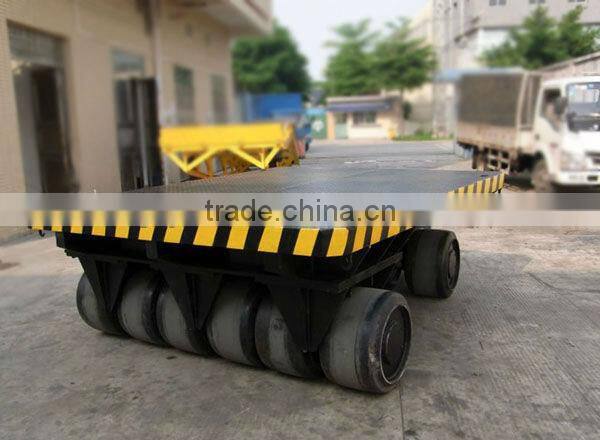

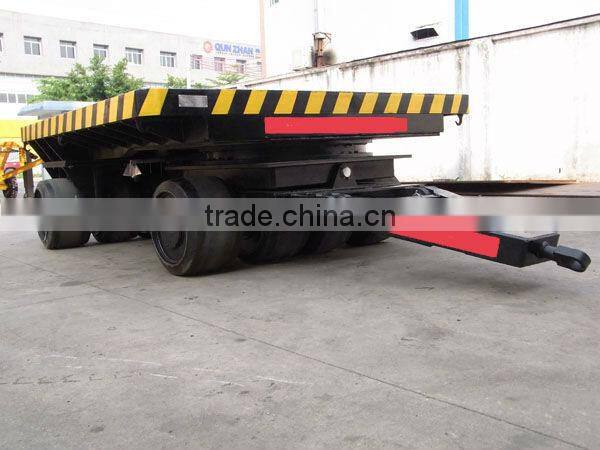

Above 40T car carrier trailers for sale1)Double-reed buffered traction mechanism
2)180 degree rotation frame
3)Tailor-made
40T car carrier trailers for sale
1. Performance and application recommendation:
1 The traction mechanism is heavier design, spring-return regulation. Optional according to customer requirements
2 Steering mechanisms is composed rotary by the Shanghai Machine Works (excavator hook arm rotary assembly) without fear of damage for 10 years.
3 The leading bridle can be adjusted up and down or fixed, just simplify to adjust according to different tonnage of truck traction or other tractions
4 Suspending vehicle frame, compared to the traditional hard-link (Weld), decreasing the long-term stress of vehicle’s body, longer life to use.
5. Axle automatically swing adjusted. Ensure the board level and tire force balance when on the rugged ground.
6. Using domestic heavy-duty trailer specialized used pressed-on solid tires, loading stronger, single tire can load 10 tons at most.
7.180 degree rotation frame, the minimum turning radius (180-degree turning on the spot)
8. Configuring with universal couplings, flexible operating.
9. Suitable for heavy goods’ short-distance transit, transfer library, assembly line and other operations.
2. Instruction of parameters:
PT * A/B ** W- ** L ** S/H
PT: Rated load
A: With guardrail
B: Without guardrail
W: Platform’s width
L: Platform’s length
S/H: S: Solid tire; H: Hollow tire
3. Configuration instance:
PT50A-25W-60L-8F
(Customized different models or configurations according to customer requirements)
Model |
Tonnage(T) |
Driving Speed(KM/H) |
Specification |
Quantity and specification of tires |
Attachment |
Structure |
PT50A-25W-60L-8F |
50.0 |
20 |
2.4MX6.0M |
8: 22-14-16 |
Three 30th Main beam |
Dual Suspension |
1, Rated load: 50 tons
2, Height of the vehicle bearing surface: 1000MM.
Size of vehicle body: 2400MMX6000MM
3, Quantity of tires: 8, Model 22-14-16solid tires (Shanghai).
4, Main framework: 12th steel structure (Liuzhou steel). Main beam:30#steel
5, Surface: 5MM safety tread pattern.
6, Rotating body: 50 tons Shanghai Machine Works rotary composed.
7, Double - reed buffered traction mechanism (braking or starting buffer).
8, Suspension frame: 180 degree rotation stand.
9, Unilateral set four yards hook.
10, With a connector.
11, Barricade optional choose.
♦50T Without Barricade
We can customized for your requirements!
The rated load
Platform dimension
Tyre amout/kind
Struction
Barricade
