Specifications

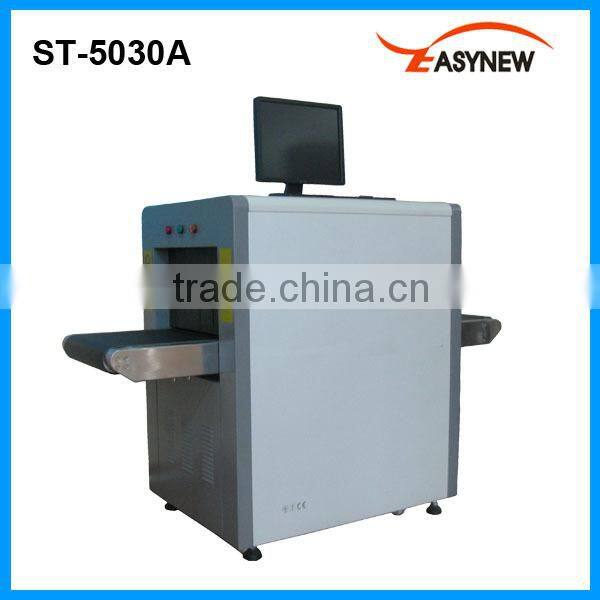

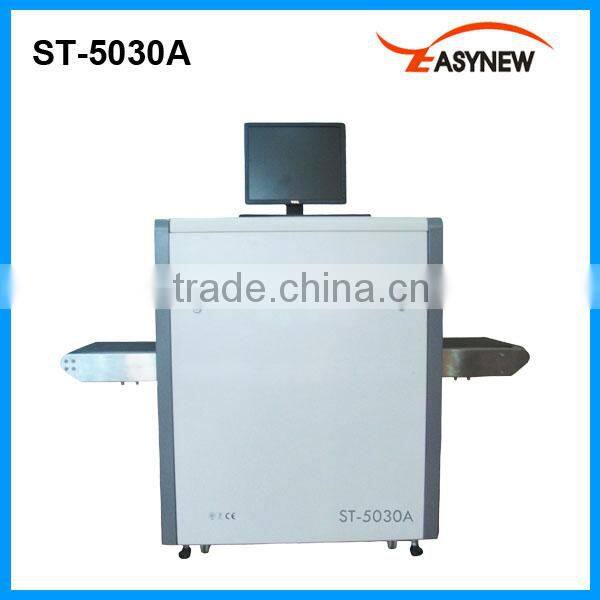

ST-5030A X ray luggage checking equipment for station airport Could be connect local area network and support multi-terminal cheST-5030A X ray luggage checking equipment for station airport
1.Basic parameters
Power consumption: |
1.0 KW (Max) |
Noise: |
<55DB |
Model size: |
L162*W77*H128cm |
Storage temperature range: |
-20°C~60°C |
Operating temperature range: |
0°C~45°C |
Humidity: |
20%~95% (Not condensing) |
X-ray tube voltage: |
80 kV(adjustable) |
Current X-ray tube: |
0.4~0.7mA(adjustable) |
Maximum leakage radiation |
<0.3µGY/H |
Monitor: |
Diagonal size - at least 19 inches,Resolution - 1920*1080 |
The management console: |
at least 4 USB ports (for keyboard, external USB-drive, mouse), 5.5 m long cable line in a metal protective casing. |
Function of recording the image |
the image recording is automatically built-in hard drive with the ability to view and copy izobrazheniyacherez USB-port on the console. |
G.W.: |
450 KGS |
2.Function
(1) Alarm by sounds & light:
Alarm by sounds and light when conform to condition.
(2) Network interface:
Could be connect local area network and support multi-terminal check baggage at same times
(3) Safety ray:
Transmit ray under automatic control, avoids the missing
(4) Image monitoring for user-friendly:
The monitor use 360° the fold, rotary system, operators adjusts the monitor position will fully
according to own need, reduces wearily.
(5) Simple operation by mouse:
Without keyboard and work table, control by mouse, save space.
(6)Turn off by a key control:
Turn off the machine only need one step revolves the key.
The equipment automatic security close-down, does not need complex many steps, is simpler.
(7) Eagle-eye:
It could be expediently observing enlargement area.
(8) Estimate malfunction by self:
It automatic estimate malfunction and prompt message, helpful for the maintenance.

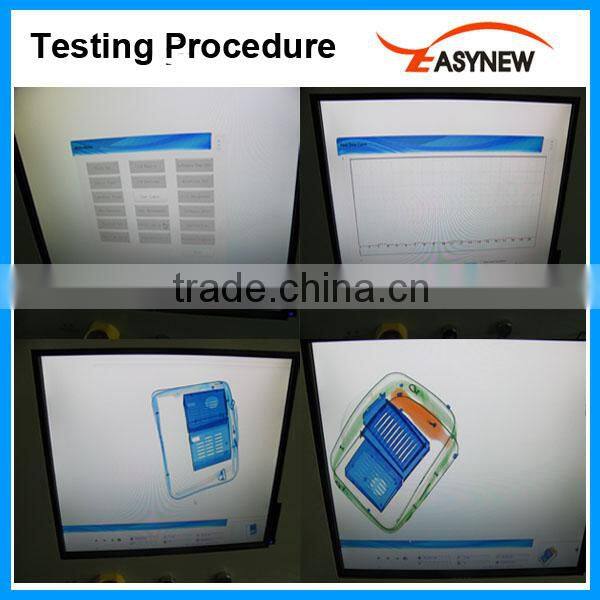

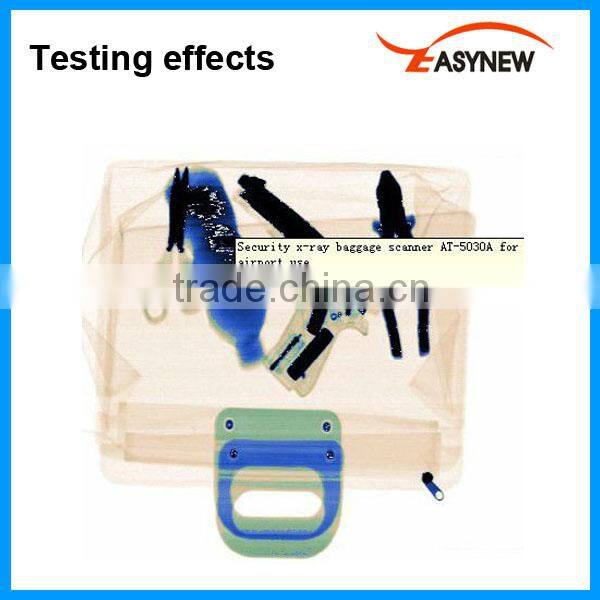

3. Testing Effect Picture
4. Our manufacturing workshop
5. CE certificate
Welcome to visit our factory!
If you have any questions ,please don't hesitate to ask us!
