Mini Nema 23 Peristaltic Pump With Small Volume
- Tianjin Beijing Guangzhou Shanghai etc...
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Chuangrui | |
| Model Number | OEM300-BJ100/DG-1 | Theory | Other, Peristaltic pump | |
| Structure | Other, Water, fluid, mixed pump | Usage | Other, Water, fluid, mixed pump | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Low Pressure | |
| Application | Other, small volume transfer |
Product Description
OEM300 Product Introduction
This product can be installed by YZ1515x,YZ2515x,DG-1 and DG-2 four kinds of pump heads, with flow rate from 0.005-30mL/min. Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers.
Typical application
1.accurate measurement and ration feedstock, it could reach highest precision
2.transfer viscous liquid
3.in food and medical care via changing the tube and material
Functions and features
1.applicable pump heads: YZ1515x,YZ2515x,DG-1 ,DG-2
2.two ways of changing flow speeds: by hand through switching knobs/ automatic control through external controller interface
3.switching knobs excel membrane keypad in reducing failure rates during the operation
4.FULL SPEED button available for filling in & emptying out
5.Memory function available in case of power off
6.Good capability price rate
7.not suitable when used in the open air
Specifications | |
Speed | 0.1 to 100 rpm, reversible |
Speed precision | 0.1rpm |
Speed control | Rotary encoded switch / full speed |
Display | 3-digit LED displays current rpm |
Analog interface | Start/stop and cw/ccw control,0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control,RS485bus |
Power supply | AC 90V-260V 50Hz/60Hz |
Power consumption | <35W |
Operating condition | Temperature 0 to 40°C, relative humidity < 80% |
Dimensions (L × W × H) | in food and medical care via changing the tube and material |
Weight | 3.98Kg. |
IP rating | IP31 |
Ordering guide
Drive | Pump heads | Tubing | Flow rates (mL/min) |
OEM300-BJ100/DG-1 | YZ1515x | 13# 14# 19# 16# 25# 17# 18# | 0.007~380 |
YZ2515x | 15# 24# | 0.17~290 | |
N*YZ1515x | 13# 14# 19# 16# 25# 17# 18# | 0.007~380 per channel | |
N*YZ2515x | 15# 24# | 0.17~290 per channel | |
DG-N(6 rollers) | 0.5×0.8,1×1 | 0.006~30 per channel | |
DG-N(10 rollers) | 2×1,2.4×0.8 | 0.005~20 per channel |
Company information
Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
Our Exhibition
Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Ella Xu
Skype ID : ella-crpump
QQ : 507183200
Wechat :ellaxu1988
Tel :15633705132

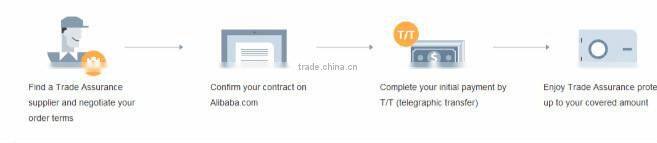

Welcome to begin the trade assurance order with us . we'll try our best to satisfy you .Let's begin !!!
