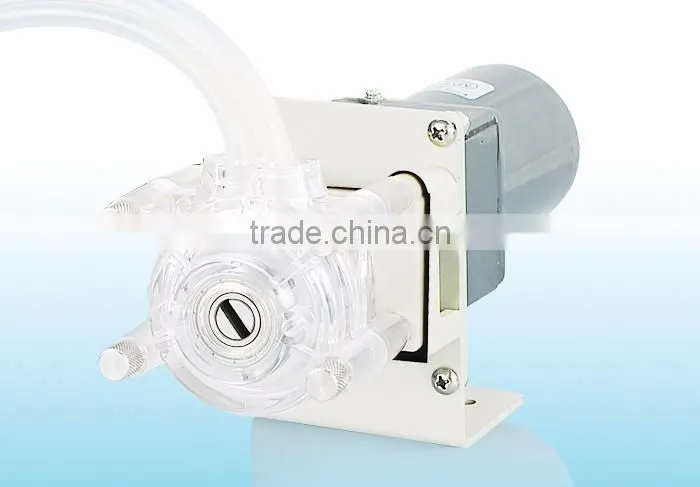

12v or 24v Motor peristaltic hydraulic pump
The OEM204 pumps have superb features built-in and flexible design to meet specific customer needs.Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic. pump a longer life.
Technical Parameterd
Pump head |
Motor |
Max Flowrate(ml/min ) |
Tube |
Max speed |
Noted |
|
OEM204-1 |
ZN25 |
DC24V |
1740 |
24# |
600 |
For ZN 25 pump head can only install one size pump , general size 16# 14# 24# 25# , need other size we can make for you . |
OEM204-2 |
DC12V |
1740 |
24# |
600 |
||
OEM204-3 |
AC220V |
1305 |
24# |
450 |
||
OEM204-4 |
AC110V |
1305 |
24# |
450 |
Ordering Guide
Tube |
ID mm |
OD mm |
Max speed(rpm ) |
Max flowrate (ml/min) |
Noted |
15# |
4.8 |
9.6 |
600 |
1020 |
16# 14# 24# 25# in stock , if you need other size pls contact us. |
24# |
6.4 |
11.2 |
600 |
1740 |
|
13# |
0.8 |
4.0 |
600 |
42 |
|
14# |
1.6 |
4.8 |
600 |
162 |
|
19# |
2.4 |
5.6 |
600 |
306 |
|
16# |
3.1 |
6.3 |
600 |
492 |
|
25# |
4.8 |
8.0 |
600 |
1020 |
|
17# |
6.4 |
9.6 |
600 |
1740 |
|
18# |
7.9 |
11.1 |
600 |
2280 |
Size Drawing :
Before to ensure the pump type , the following three question should be answered:
1.What is flowrate you need ? ml/min
2.which tube you need ?
3.what kind of liquid you will transfer ? it can flow like water ?
You can mails your answers including the above infos , then we will select the most proper pump to you !
Company information
Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
Our Exhibition
Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
We have professional support teams to assist with any questions you may have.
Some frequently asked questions can be found below.However please don't hesitate to contact us with ant specific questions.
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
