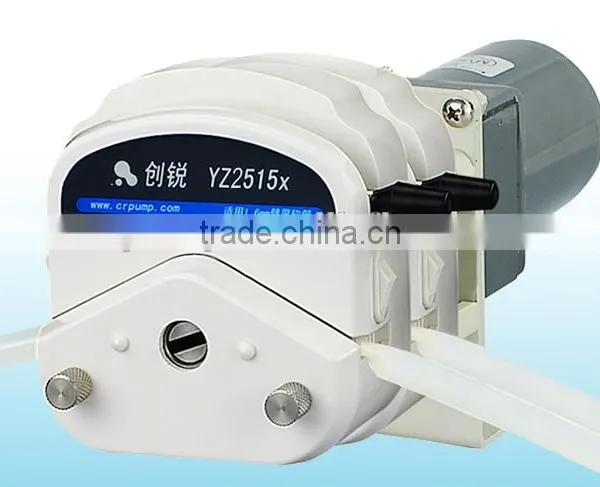

Dc24v Peristaltic Pump for Detergent OEM202/YZ2515X

Dc24v Peristaltic Pump for Detergent OEM202/YZ2515X thumbnail-1
Dc24v Peristaltic Pump for Detergent OEM202/YZ2515X photo-1
US$ 1 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Chuangrui
Model Number:
OEM202/YZ2515X
Contact Supplier Request Quote Chat Now
Baoding Chuangrui Precision Pump Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Beijing Guangzhou Tianjin etc...
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Chuangrui
Model Number OEM202/YZ2515X
Theory Other, Peristaltic pump
Structure Other, OEM peristaltic pump
Usage Other, liquid transfer
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure Low Pressure
Application Other, liquid transfer

dc24v peristaltic pump for detergent OEM202/YZ2515X

Product Description

Our peristaltic pumps, also known as squeeze-tube pumps, propel liquid with rotating rollers, attached to a motor that turns in a circular motion and that

  • Squeezes a tube or hose.
  • Creates a vacuum at the inlet end of the hose.
  • Squeezes the fluid through the hose.
  • Discharges the fluid at the outlet.
Can the pump run continuously?
Yes
What is the life expectancy?
Varies by model; the maximum is 2000 hours
Can the flow rate be varied?
The DC version’s flow rate can be varied by reducing the voltage.with speed control board
Can the pump run in either direction?
Depend on your requirement , if you need the direction control, we will add that mode on the pump
Order Guide :
dc24v peristaltic pump for detergent OEM202/YZ2515X
  Model.No. Motor speed(rpm) Flowrate (ml/min) tube note
1 OEM201-1/YZ1515x DC 24 V 600 2280 2m 17#
2 OEM201-2/YZ1515x DC 12 V 600 2280 2m 17#
3 OEM201-3/YZ1515x AC 220 V 450 1710 2m 17#
4 OEM201-4/YZ1515x AC 110 V 450 1710 2m 17#


 dc24v peristaltic pump for detergent OEM202/YZ2515X




1 OEM203-1/313D DC 24 V 600 2280 2m 17#
2 OEM203-2/313D DC 12 V 600 2280 2m 17#
3 OEM203-3/313D AC 220 V 450 1710 2m 17#
4 OEM203-4/313D AC 110 V 450 1710 2m 17#



dc24v peristaltic pump for detergent OEM202/YZ2515X




1 OEM204-1/ZN25 DC 24 V 600 1740 2m 24#
2 OEM204-2/ZN25 DC 12 V 600 1740 2m 24#
3 OEM204-3/ZN25 DC 220 V 450 1305 2m 24#
4 OEM204-4/ZN25 DC 110 V 450 1305 2m 24#



dc24v peristaltic pump for detergent OEM202/YZ2515X




Model.No.

 speed(rpm)  Flowrate (ml/min) tube note
OEM205-1/TH15



 5/10/30/60/80/100 (optional) 0-170
OEM205-2/TH15 5/10/30/60/80/100 (optional) 0-170



Tube Description





dc24v peristaltic pump for detergent OEM202/YZ2515Xdc24v peristaltic pump for detergent OEM202/YZ2515X



Functions and features

1.The OEM pumps heads are easy-to-use, offers trouble-free performance and provide flow rates for up to 6000 ml/min for continuous use

2.Small compact size and robust design

3.Trouble-free continuous tube loading in seconds

5.Automatic tube stretch for high accuracy and repetitive flow

6.Spring-loaded operation for good pressure control Four roller pumphead, low pulsation





Application
  • Surgical supplies
  • Blood analyzers
  • Water conditioning
  • Painting equipment
  • Donut making equipment
  • Condiment spreaders
  • Micro-brewing
  • Enzyme injectors/Degreasers
  • Food prep device cleaners
  • Oil skimming/Lubrication
  • Bottling
Packaging & Shipping

Packaging

dc24v peristaltic pump for detergent OEM202/YZ2515X



Shipping

dc24v peristaltic pump for detergent OEM202/YZ2515X



Company information





Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
