easy operate peristaltic fluid pump with silicon tube
- 2000 Piece / Pieces per Month
- Tianjin Beijing Guangzhou Shanghai etc...
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Chuangrui | |
| Model Number | BT300LC | Theory | Other, Peristaltic Pump | |
| Structure | Other, peristaltic pump | Usage | Other, Transmission | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | Low Pressure | |
| Application | Other, Split Charging |
Product Description
4 channels high precision peristaltic fluid pump in China
Product Introdcue
BT300LC has touch-sensitive color LCD screen to display the Run and parameter setting menu, filling parameters and flow’s display is simple and intuitive, easy operation. It also has flow calibration function, when the filling volume deviation through this calibration, in order to meet the requirements of the users of high-precision filling. With a variety of control methods, with the communication interface to provide users with communication protocol, users can request custom PC software for remote control.
Operation Panel :
Typical application
1.Quantitative add material during the chemical reflections
2.Add liquid measurement in lab
3.Transfer liquid pump in odious working environment
4 work mode
BT300LC Functions and features
- Ø TFT LCD touch screen display and intuitive control more convenient
- Ø With flow calibration function, making the flow control is more precise for quantitative transmission fluid
- Ø Large graphic LCD screen used in conjunction with the key switch, man-machine interface more friendly, more convenient for the user
- Ø Have a communication interface, can provide users with communication protocols, in accordance with user's requirements to custom the PC software
- Ø Higher cost performance
Specifications | |
Speed | 1~300rpm, reversible |
Speed precision | 0.1rpm |
Speed control | Touch screen |
Display | LCD screen |
Dimensions (L × W × H) | 202 × 160 × 239 (mm) |
External control interface | Start/stop control, cw/ccw control and speed control (0~5V, 0~10V, 4~20mA) |
Power supply | AC 90V-260V 50Hz/60Hz |
Power consumption | <35W |
Operating condition | Temperature 0 to 40 C° , Relative humidity < 80% |
Ordering guide

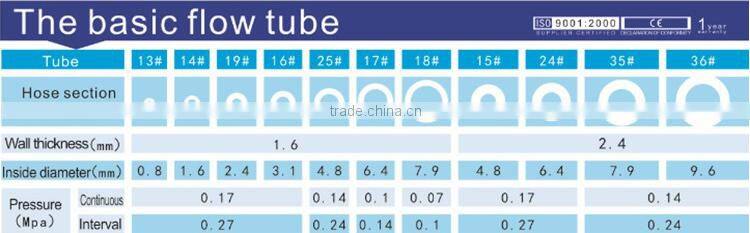

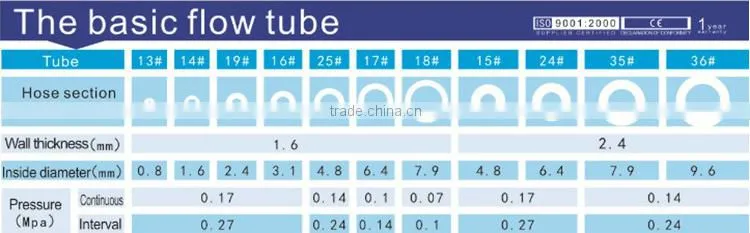

Drive | Pump heads | Tubing | Flow rates (mL/min) |
BT300LC | YZ1515x | 13# 14# 19# 16# 25# 17# 18# | 0.07~1140 |
YZ2515x | 15# 24# | 1.7~870 | |
N*YZ1515x | 13# 14# 19# 16# 25# 17# 18# | 0.07~1140 per channel | |
N*YZ2515x | 15# 24# | 1.7~870 per channel | |
DG-N(6 rollers) | 0.5×0.8,1×1 | 0.06~30 per channel | |
DG-N(10 rollers) | 2×1,2.4×0.8 | 0.05~20 per channel |
Company information
Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
Our Exhibition
Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
Baoding Chuangrui Precision Pump Co., Ltd.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Welcome to begin the trade assurance order with us . we'll try our best to satisfy you .Let's begin !!!
