Constant Flow Meterng Peristaltic Pump

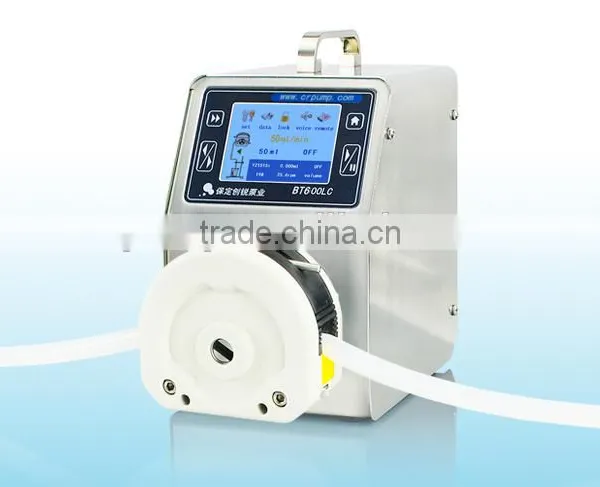

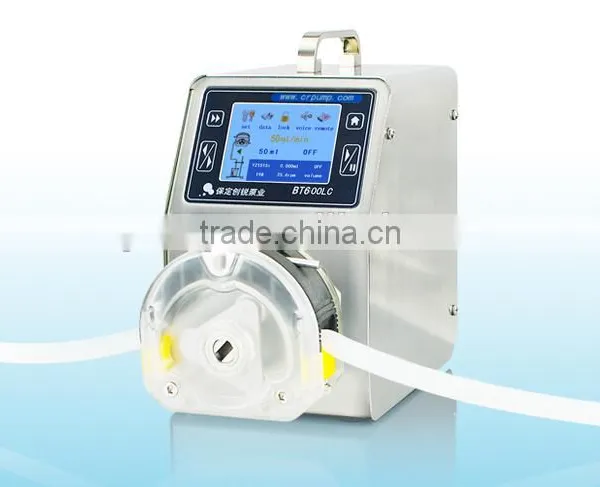

  BT600LC has touch-sensitive color LCD screen to display the Run  and parameter setting menu, filling parameters and flow’s display is simple and intuitive, easy operation. It also has flow calibration function, when the filling volume deviation through this calibration, in order to meet the requirements of the users of high-precision filling. With a variety of control methods, with the communication interface to provide users with communication protocol, users can request custom PC software for remote control.

1. Monoclonal antibody production

2. High precision transmission of intermediate

3. Transferring micro flow rates liquid with high precision

*With 3.5 inches color LCD screen, displaying English or Chinese.

*Calibration capability ensures to transfer more accurate flow rates.

*Applicable pump heads: YZ, BZ, DG series, etc.

*Various working modes: transfer mode, timing mode, quantitative mode.

*Customer data saving function: can save 9 sets of data for customers.

*Large torque, low power motor. It can be connected with several pump heads to satisfy the different applications.

*External controller supports high and low electrical level to operate the start or stop; RS485 communication interface and MODBUS communication protocol are available.

*304 stainless steel housing, corrosion protection, rust prevention, easy to be cleaning.

Before to ensure the pump type , the following three question should be answered:

1.What is flowrate you need ? ml/min

2.what is the pump will be used for ? for treasferring liquid or filling bottles ?

3.what kind of liquid you will transfer ? it can flow like water ?

You can mails your answers including the above infos , then we will select the  most proper pump to you !

Company information

Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.

Our Exhibition

Express

Our peristaltic pump with 1 year warrenty and lifetime maintenance.

We can do the OEM PERISTALTIC PUMP as your special requirements.

To help u send the right tube and motor ,before purchase ,pls confirm the details as below:

1.What flowrate you need ? ml/min

2.What kind of liquid you will transfer ? does it corrosive ?

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.

And other question, pls feel free to contact me.
