high precision & low price laboratory e liquid filling multi channel peristaltic dosing pump Quality Choice
- 2000 Piece / Pieces per Month
- Tianjin Beijing Shanghai Guangzhou etc...
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | Chuangrui | Model Number: | BT600FC |
Theory: | Other, Peristaltic Pump | Structure: | Other, peristaltic pump | Usage: | Other, culture medium filling |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | Low Pressure | Application: | Other, culture medium filling |
Product Description

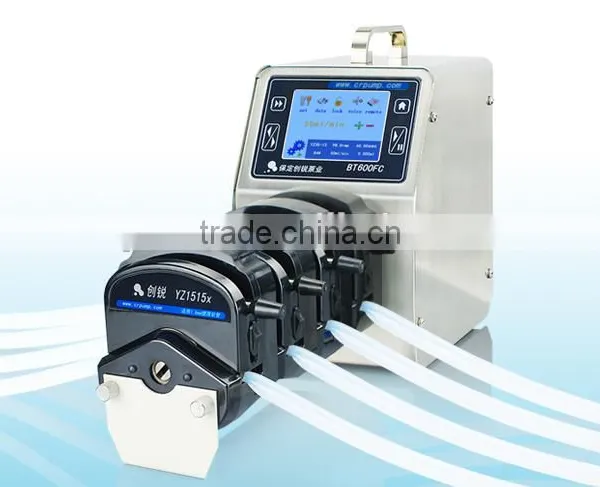

BT600FC high precision & low price laboratory peristaltic pump has touch-sensitive color LCD screen to display the Run and parameter setting menu, filling parameters and flow’s display is simple and intuitive, easy operation. It also has flow calibration function, when the filling volume deviation through this calibration, in order to meet the requirements of the users of high-precision filling. With a variety of control methods, with the communication interface to provide users with communication protocol, users can request custom PC software for remote control.
Typical application
1.Quantitative add material during the chemical reflections
2.Add liquid measurement in lab
3.Transfer liquid pump in odious working environment
Functions and features
BT600FC Specifications
Speed: 1.0 to 600.0 rpm, reversible
Speed resolution::0.1rpm(0.1~100rpm)
1rpm(100~600rpm)
- Speed control: Rotary coded switch coupled with membrane keypad

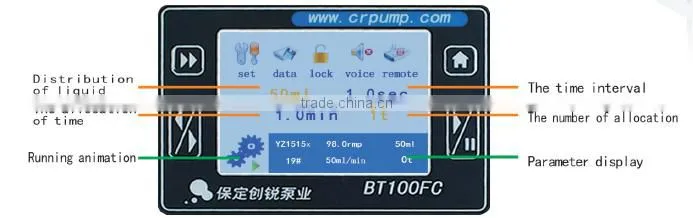

Display:: touch-sensitive color LCD screen
- Copy number: 1 to 999
- Dispense volume: 0.1 mL to 99.9 L
- Pause time: 1 to 999 s
- Back suction angle: 0 to 720°, 15° increments
- External control: Start/stop and cw/ccw control
0 to 5 V, 0 to 10 V, and 4 to 20 mA speed control
Communication interface::RS485
External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4to 20 mA speed control
Power Supply: AC 220V±10%,50Hz/60Hz(optional)
AC 110V±10%,50Hz/60Hz(optional)
Power Consumption:: <50W
Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
Dimensions (L × W × H): 202 × 160 × 239 (mm)
Drive weight: 4.7Kg
IP rating: IP31
BT600FC Functions and features
- Ø TFT LCD touch screen display and intuitive control more convenient
- Ø With flow calibration function, making the flow control is more precise for quantitative transmission fluid
- Ø Large graphic LCD screen used in conjunction with the key switch, man-machine interface more friendly, more convenient for the user
- Ø Have a communication interface, can provide users with communication protocols, in accordance with user's requirements to custom the PC software
- Ø Higher cost performance
Set pause time to realize dispensing and filling automatically |
- Display can switch between flow rates and rpm |
- Calibrate setting flow rates to acquire more accurate flow rates |
- RS485 communication interface available. Offering communication protocol to customer and customizing software according to customer's requirements. |
Ordering guide
Drive | Pump heads | Tubing | Flow rates (mL/min) |
BT600FC | YZ1515x | 13# 14# 19# 16# 25# 17# 18# | 0.07~2280 |
YZ2515x | 15# 24# | 0.29~1740 | |
N*YZ1515x | 13# 14# 19# 16# 25# 17# 18# | 0.07~2280 per channel | |
N*YZ2515x | 15# 24# | 0.29~1740 per channel | |
ZN25 | 24# | 0.29~1740 | |
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Packaging
Shipping
Welcome to begin the trade assurance order with us . we'll try our best to satisfy you .Let's begin !!!
