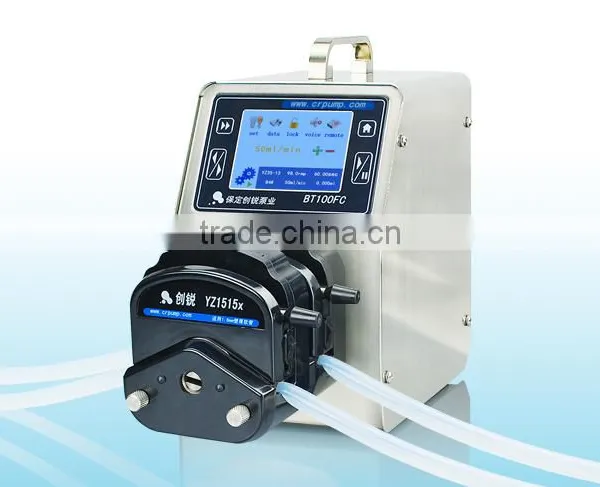

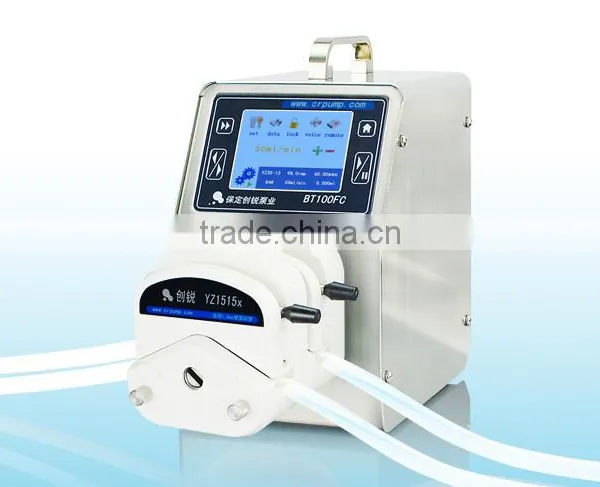

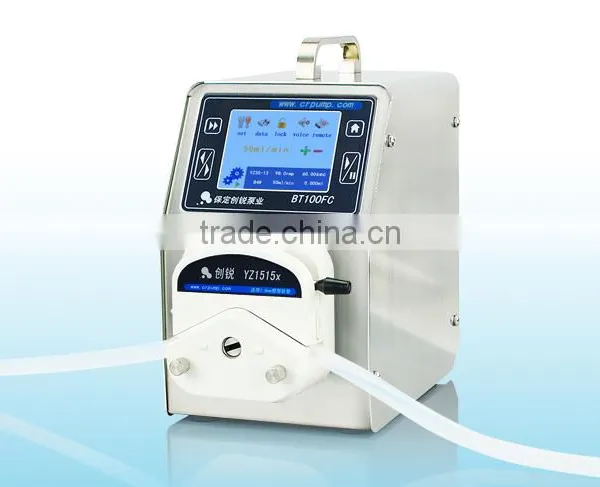

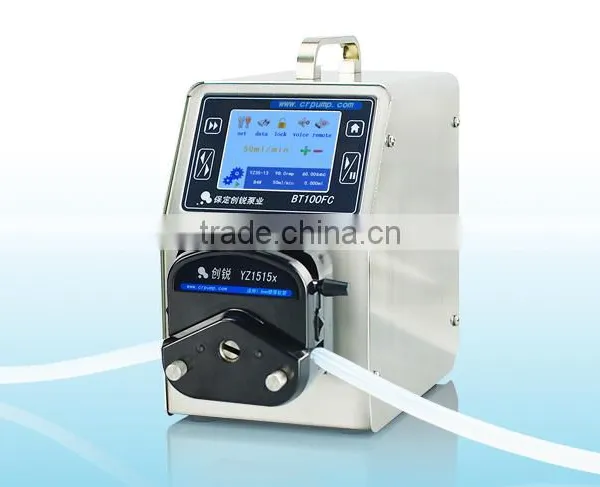

Dispensing Peristaltic Pump with Foot Pedal Control
BT100FC Dispensing Peristaltic Pump with foot pedal control has touch-sensitive color LCD screen to display ,filling parameters and flow’s display is simple and intuitive, easy operation.
The dispensing pump widely use in the comestics dispensing industry and rise the work effeciency .
It also has flow calibration function, when the filling volume deviation through this calibration, in order to meet the requirements of the users of high-precision filling.
Technical Parameters
BT100FC Specifications
Speed: 1.0 to 100.0 rpm, reversible
Speed resolution::0.1rpm(0.1~100rpm)
Display:: touch-sensitive color LCD screen
Communication interface::RS485
External Control: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, and 4to 20 mA speed control
Power Supply: AC 220V±10%,50Hz/60Hz(optional)
AC 110V±10%,50Hz/60Hz(optional)
Power Consumption:: <50W
Operating condition: Temperature 0 to 40 °C, Relative humidity < 80%
Dimensions (L × W × H): 202 × 160 × 239 (mm)
Drive weight: 4.7Kg
IP rating: IP31
Pump Head &Tubing
Typical Application
1.Quantitative add material during the chemical reflections
2.Add liquid measurement in lab
3.Transfer liquid pump in odious working environment
Function&Feature
Ø TFT LCD touch screen display and intuitive control more convenient
- Ø With flow calibration function, making the flow control is more precise for quantitative transmission fluid
- Ø Large graphic LCD screen used in conjunction with the key switch, man-machine interface more friendly, more convenient for the user
- Ø Have a communication interface, can provide users with communication protocols, in accordance with user's requirements to custom the PC software
- Ø Higher cost performance
Before to ensure the pump type , the following three question should be answered:
1.Which liquid you will transfer ?
2.Your bottle volume ? ml
3.How many bottles you want to fill in one minute ?
You can mails your answers including the above infos , then we will select the most proper pump to you !
Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
