Product Introduction

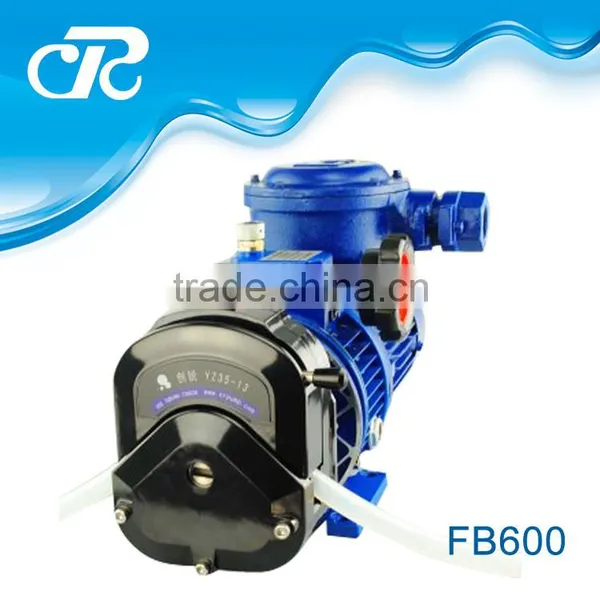

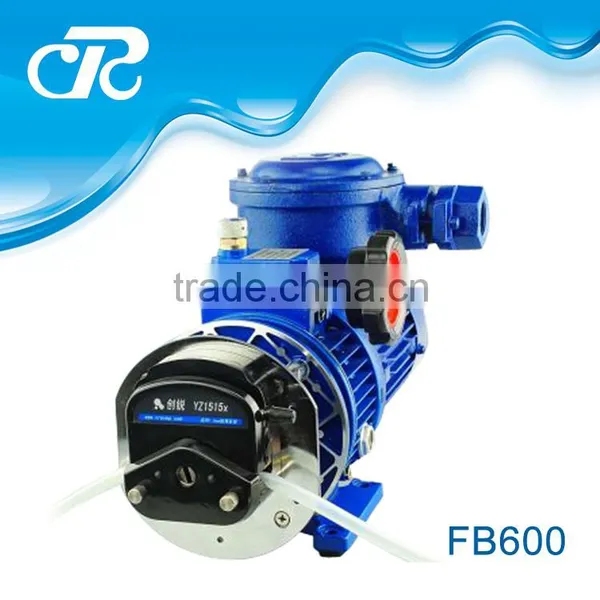

Applicable pump heads for FB600 is YZ35 (Al),YZ35-13(PPS).YZ1515x,YZ2515x. The pump delivers flow rates from 0.74 to 12 L/min. Two channels flowrates can be meet 1.4L-24L/min. The speed can be adjusted manually, Driven by AC380V motor(of) the DT600 has higher torque and can drive double pump heads.FB600 is ideal for industrial application to meet your needs for higher pressure and quick fluid transfer and . Steady flow rate, lower noise and easy to operate.Fuselage of.Staining steel is couformed to health standard.
Explosion Proof Pumps prevent internal or external explosions by enclosing parts that could ignite either the transfer media or the surrounding atmosphere. Some explosion-proof pumps are designed to move abrasive materials, acids, adhesives, chemicals, concrete and grout, coolants, hazardous materials, liquid metal, or lubricants. Other devices are rated for combustible, corrosive, high viscosity, or high temperature media. Explosion-proof pumps are also used to move gasoline, diesel fuel, and oil; ground water, potable water, salt water, and wastewater; sewage, sludge, slurry and ash slurry; gas and air; powders, solids, and rendering wastes; and a variety of liquids and liquids with solids.
Typical application
1.Oil material adding in cosmetic production
2.Vitamin adding in milk
3.Material adding in plating
Functions and features
1. Applicable pump heads: YZ35 (Al), YZ35 (PPS),YZ1515x,YZ2515x
2. Stainless steel housing of the drive is available
3. Suitable for industrial applications
4. Longer Footswitch or other external control device optional
5. Equipped with Changrui Dispensing Controller for filling function
Specifications | |
Speed |
60 to 600 rpm, reversible |
Speed Control |
10-turn potentiometer |
Analog Interface |
N/A |
Power Supply |
AC 380 V ± 10% 50/60 Hz |
Power Consumption |
<250 W |
Dimensions (L*W*H) |
325*236*193 (mm) |
Display |
Hand wheel scale |
Drive weight |
30kg |
Operating condition |
Temperature 0 to 40 C° , Relative humidity < 80% |
Ordering guide
Drive |
Pump heads |
Tubing |
Flow rates (mL/min) |
FB600 |
YZ35 |
73# 82# |
740~12000 |
YZ35*2 |
73# 82# |
740~12000 per channel |
|
YZ1515X |
13#-----18# |
7-2280 |
|
| KZ25 | 35# 36# | 10-6000 | |
Company information
Baoding chuangrui precision pump Co.,Ltd was founded in 2006,is now mainly engaged in the peristaltic pump research and development ,production ,marketing;and related fluid precision control of the stepper motor ,drives,controller of research and development ,production and sales.Enterprise covers an area of more than 1000 square meters of modern production workshop ,more than 50 sets of production equipment.At present ,we have succeeded in bringing the ARM,DSP ,FPGA,CPLD technology application in the research and development of new products ,such as improving the comprehensive performance of the product.
Our Exhibition
Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Welcome to begin the trade assurance order with us . we'll try our best to satisfy you .Let's begin !!!
