smart speed display peristaltic pump ,small volume peristaltic pump
Peristaltic pumps are typically used to pump clean/sterile or aggressive fluids because cross contamination with exposed pump components cannot occur. Some common applications include pumping IV fluids through an infusion device, aggressive chemicals, high solids slurries and other materials where isolation of the product from the environment, and the environment from the product, are critical. It is also used in heart-lung machines to circulate blood during a bypass surgery as the pump does not cause significant hemolysis.
Peristaltic pumps are also used in a wide variety of industrial applications. Their unique design makes them especially suited to pumping abrasives and viscous fluids
Drive type |
BT100M |
BT300M |
BT600M |
Tech. parameters | |||
Revolving speed range |
0.1-100 rpm |
0.1-300 rpm |
0.1-600 rpm |
Speed resolution |
0.1 rpm |
||

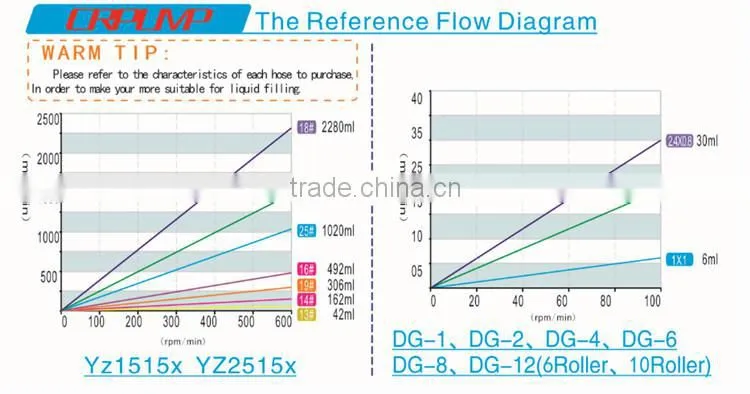

Flow rate range |
0.0015-380 ml/min |
0.0015-1140 ml/min |
0.0015-2280 ml/min |
Speed error |
<0.5% |
||

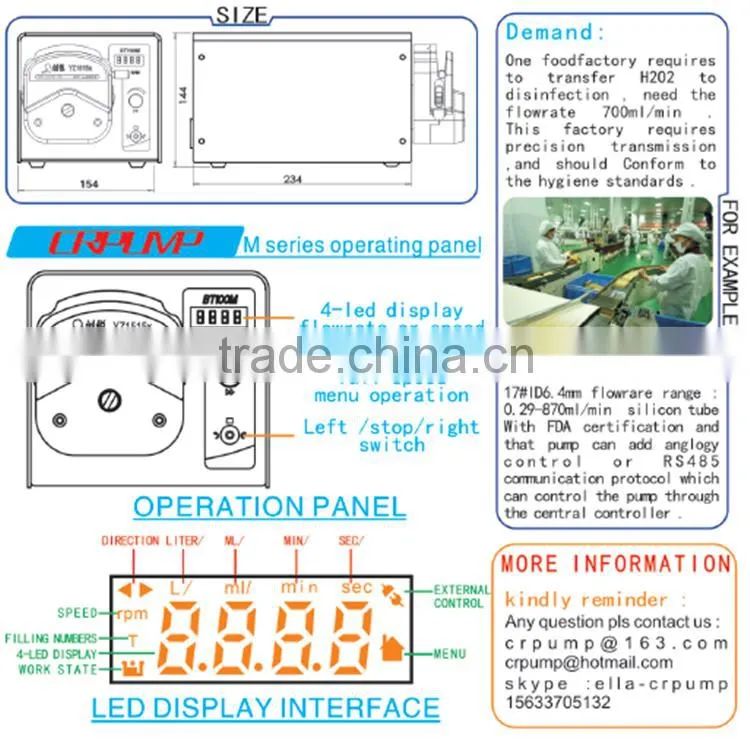

Control method |
Rotary encoder knob to adjust revolving speed |
||
Display |
4-digit LED displaying current speed or flow rate |
||
Power supply |
AC220V±10% (standard); or AC 110V±10% (optional). |
||
Power consumption |
<22W |
<35W |
<50W |
External control interface |
Start/stop control, direction control, speed control. |
||
(0-5 V, 0-10 V, 4-20 mA to be optional) | |||
RS 485 communication interface | |||
Environment temperature |
0-40℃; Relative humidity <80%; non-condensing |
||
Drive dimension |
234*144*140 (mm) |
254*184*145 (mm) |
|
Drive weight |
3.98 kg |
4.3 kg |
4.8 kg |
Protection grade |
IP 31 |
||
Ordering guide
Each Drive can run with several different pump heads .and the YZ1515x/YZ2515x can run with at most 4 channels . you can depend on your requirement to choose it.
Packaging
Shipping
Our peristaltic pump with 1 year warrenty and lifetime maintenance.
We can do the OEM PERISTALTIC PUMP as your special requirements.
To help u send the right tube and motor ,before purchase ,pls confirm the details as below:
1.What flowrate you need ? ml/min
2.What kind of liquid you will transfer ? does it corrosive ?
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Pls contact Ella Xu.0086-15633705132 or leave message to us.We will reply u asap we get it.
And other question, pls feel free to contact me.
Welcome to begin the trade assurance order with us. we'll try our best to satisfy you. Let's begin !!!
