Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Auto Compressor > Low Price Air Control Solenoid Valve 4M210-8

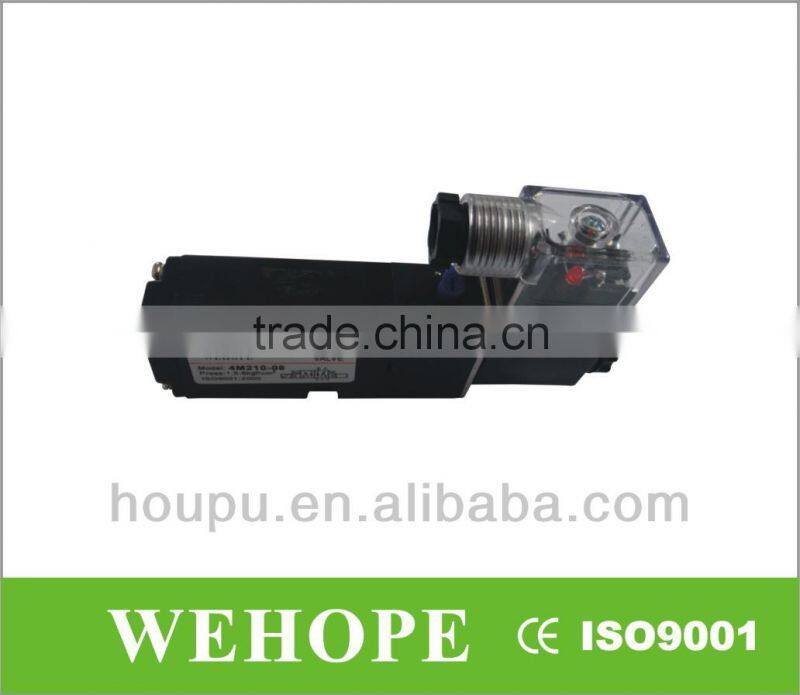

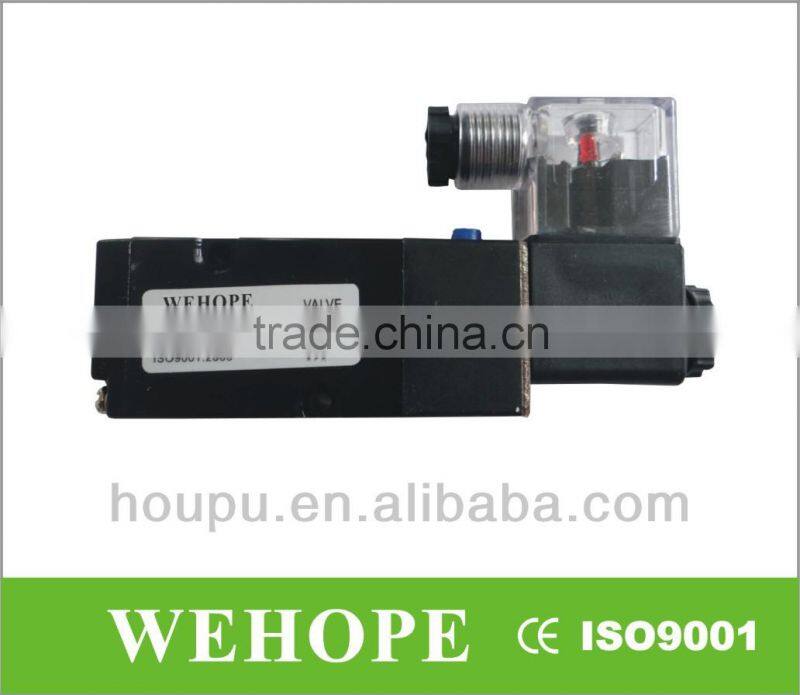

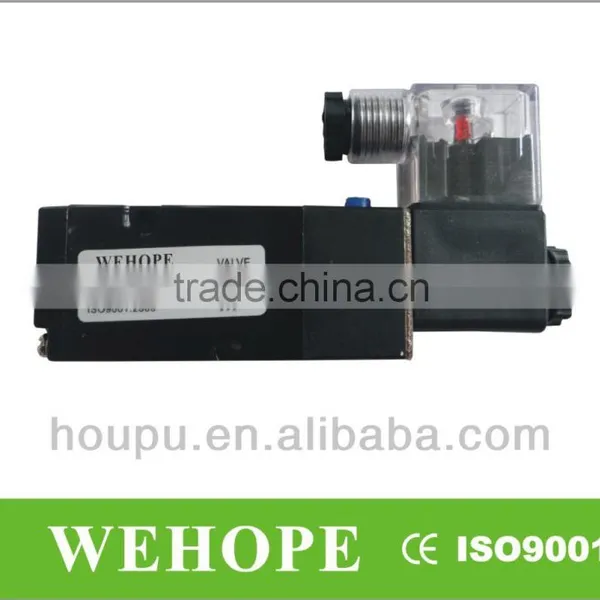

Low Price Air Control Solenoid Valve 4M210-8
US$ 2 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Other, Valves, Air control solenoid valve
Place of Origin:
Zhejiang, China
Model Number:
Air control solenoid valve 4M210-8 Namur Series
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Electric Mechanical Valve JM-02 JM SeriesUS$ 2 - 10MOQ: 10 Pieces -
Low Price Control Valve MV-08 MV SeriesUS$ 2 - 10MOQ: 10 Pieces
-
Low Price Micro Solenoid Valve Q22 XD SeriesUS$ 2 - 10MOQ: 10 Pieces
-
Low Price Pneumatic Cylinder Accessory FA/FB Type AccessoryUS$ 1 - 4MOQ: 100 Pieces
-
Low Price Pneumatic Cylinder Accessory Series CA TypeUS$ 1 - 4MOQ: 10 Pieces
Type
Other, Valves, Air control solenoid valve
Place of Origin
Zhejiang, China
Model Number
Air control solenoid valve 4M210-8 Namur Series
Brand Name
WEHOPE
Specifications
air control solenoid valve1.Many years experiences.
2.High quality , favorable price .
3.Fast delivery , best service.
Eelectric air control solenoid valve
Symbol
Specification
| Type | 4M110-M5 | 4M120-M5 | 4M110-06 | 4M120-06 | 4M210-06 | 4M220-06 | 4M210-08 | 4M220-08 | 4M310-08 | 4M320-08 | 4M310-10 | 4M320-10 | ||
| Working medium | Air (filtered by 40 m filtering net) | |||||||||||||
| Action type | Inner pilot type | |||||||||||||
| Position no. | Five-way two-position | |||||||||||||
| Effective sectional area | 5.5mm²(Cv=0.31) | 12mm²(Cv=0.67) | 14mm²(Cv=0.78) | 16mm²(Cv=0 .89) | 25mm²(Cv=1.4) | 30mm²(Cv =1.68) | ||||||||
| Pipe dia. | Air inlet=Exhaust=M5 | Air inlet=Exhaust=PT1/8 | Air inlet=Exhaust=PT1/8 | Air inlet=PT1/4 Exhaust=PT1/8 | Air inlet=Exhaust=PT1/4 | Air inlet=PT3/8 Exhaust=PT1/4 | ||||||||
| Lubricating | Not need | |||||||||||||
| Applicable pressure | 0.15~0.8MPa(21~114Psi) | |||||||||||||
| Max withstand pressure | 1.2MPa(170Psi) | |||||||||||||
| Working temperature | -5~60 (23~140 F) | |||||||||||||
| Voltage range | -15%~+10% | |||||||||||||
| Power consumption | AC: 2.5VA DC: 2.5W | AC: 3.5VA DC: 2.5W | ||||||||||||
| Thermal endurance class | B | |||||||||||||
| Protection degree | IP65(DIN40050) | |||||||||||||
| Type of electrification | Terminal type and wire outlet type | |||||||||||||
| Max action frequency* | 4 | |||||||||||||
| Excitation time | 0.05 | |||||||||||||
| Weight | 120g | 175g | 120g | 175g | 220g | 320g | 220g | 320g | 310g | 400g | 310g | 400g | ||
*Note The max action frequency is in the no-load state.
Outline Dimension
Why us
• 1. We Yueqing Houpu has best supply and favorable price.
• 2.Better cost control: Relatively cheap labor and strict quality control.
• 3.100% pre-tested; 1:1 replacement.
• 4.Various kinds of specifications can be customized.
• 5.Perfect after sale service.
If you have any interest .please kindly feel free to contact me.Thanks~
Product show:
