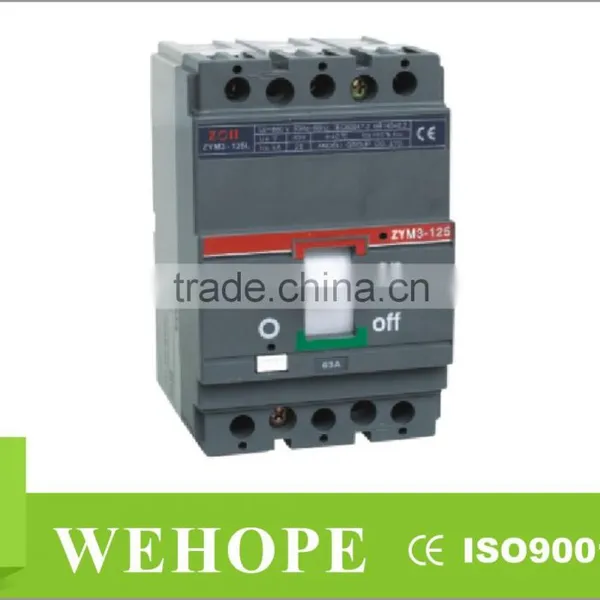

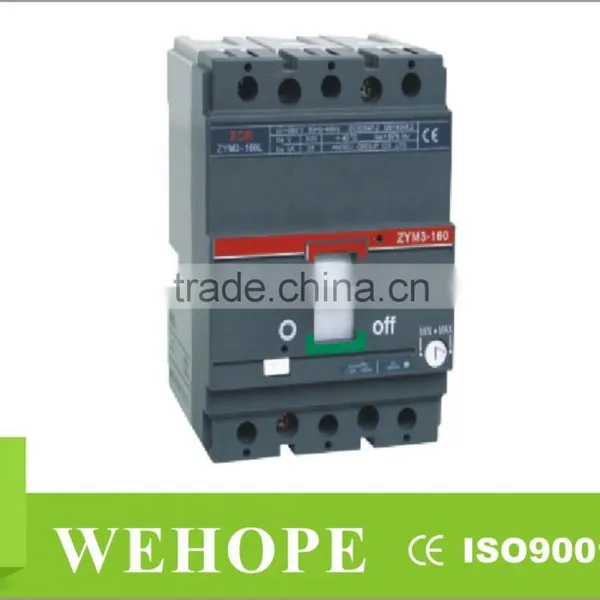

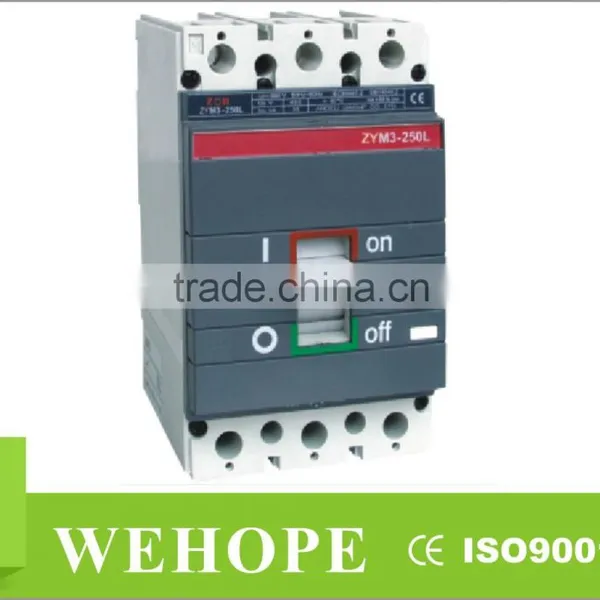

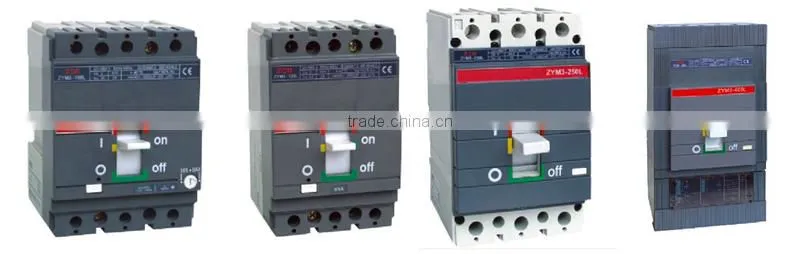

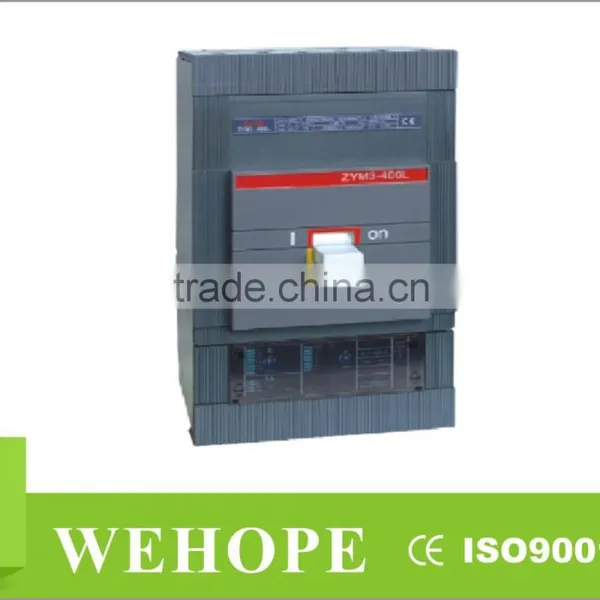

ZYM3 Moulded Case Circuit Breaker/MCCB for protection,mccb 100amp
- 1000000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WEHOPE | Model Number: | Moulded Case Circuit Breaker ZYM3 |
Type: | Moulded Case | Poles Number: | Other, 3,4 |
Product Description
Specifications
1.Competitive price2.OEM /ODM
3.High quality
4.Attentive Service
5.Customization & Personalization
Technical Data
Type | Pole Number | Rated insulating voltage (V) | Rated operating voltage (V) | Ultimate short-circuit breaking capacity Icu(kA) | Rated short-circuit servie breaking capacity Ics(%Icu) | Utilization category | |
AC380V (400) | AC660V (690) | ||||||
ZYM3-125L | 1,2,3,4 | 500 | 500 | 25 | —— | 50% | A |
ZYM3-160L | 3,4 | 690 | 690 and below | 35 | 8 | 75% | |
ZYM3-160M | 50 | 10 | 75% | ||||
ZYM3-250L | 35 | 14 | 100% | ||||
ZYM3-250M | 65 | 18 | 75% | ||||
ZYM3-250H | 85 | 20 | 75% | ||||
ZYM3-400L | 35 | 18 | 100% | ||||
ZYM3-400M | 65 | 22 | 100% | ||||
ZYM3-400H | 100 | 30 | 75% | ||||
ZYM3-630L | 35 | 20 | 100% | ||||
ZYM3-630M | 50 | 22 | 100% | ||||
ZYM3-630H | 65 | 25 | 100% | ||||
ZYM3-800L | 35 | 20 | 100% | ||||
ZYM3-800M | 50 | 22 | 100% | ||||
ZYM3-800H | 65 | 25 | 100% | ||||
ZYM3- 1250/1600L | 3 | 50 | 20 | 100% |
Application
ZYM3 series moulded case circuit breaker,it is applicable circuit of AC 50Hz(or 60Hz),rated insulation voltage 690V(ZYM3-125 500V),rated operating voltage AC 690V or below,rated operating current 12.5-1600A,for distribute energy of electric and infrequent making and breaking circuit in normal condition.The circuit-breakers are provided with the function of the protection against overload and short circuit and under-voltage.The circuit breakers comply with standard of IEC60947-2.The circuit breakers are double insulating (Inm=250A or above),the control circuit of the accessories is set apart with the main circuit,and does not need to open the cover of the circuit breaker when installing the accessories.
Tripping Characteristics
Rated current of release(A) | Thermodynamic release(ambient temp. +40 ) | Operational current of magnetic release(A) | |
1.05In(cold state) Inoperative time(h) | 1.30In(heat state) Operative time(h) | ||
In≤ 63 | ≥1 | <1 | 10-50In±20% |
63< In≤ 250 | ≥2 | <2 | 10In±20% |
25< In≤ 800 | ≥2 | <2 | 5-10In± 20% |
Rated current of release(A) | Thermodynamic release(ambient temp. La n d + 4 0℃ ) marine +45℃ | Operational current of magnetic release(A) | |||
1.0In(cold state) Inoperative time(h) | 1.20In(heat state) Operative time(h) | 1.50In (heatstate) Operative time(h) | 1.01In(heat state) Operative time(h) | ||
12.5≤ In≤ 400 | ≥2 | <2 | <4min | 2s<Tp≤10s | 12In ±20% |
Product's advantage
1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Order note
1,following items should be marked when ordering
2,product Name,model&Frame level
3,pole
4,Tripping characteristic and rated current
5,quantity
6,Ordering sample
Packaging:
The packaging of the mccb 100amp is standard export carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the mccb 100amp is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp mccb 100amp
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
