Home > Products > Miniature circuit breaker > High quality ZYL16-32 Residual Current Circuit Breaker with Overcurrent Protection

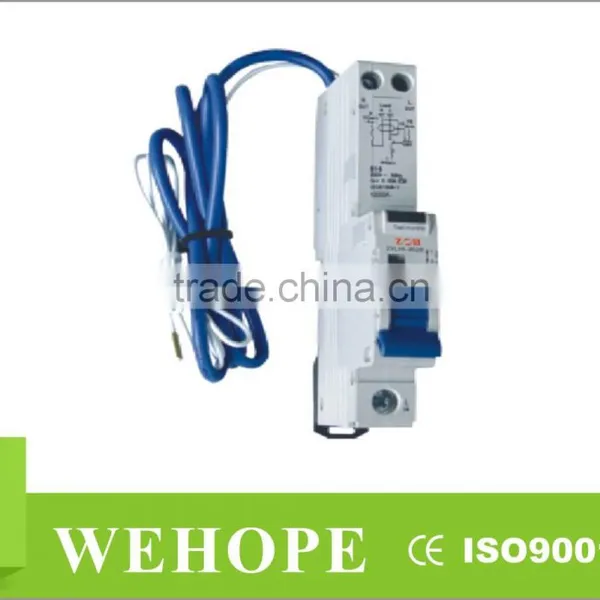

High quality ZYL16-32 Residual Current Circuit Breaker with Overcurrent Protection
- 1000000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | WEHOPE | Model Number: | Residual Current Circuit Breaker ZYL16-32 |
Type: | Other, Residual Current, Residual Current Circuit Breaker with Overcurrent Protection | Poles Number: | Other, 1P+N |
Product Description
Specifications
1.Competitive price2.OEM /ODM
3.High quality
4.Attentive Service
5.Customization & Personalization
MODEL | ZYL16-32 Residual Current Circuit Breaker with Overcurrent Protection |
Residual current characteristics | AC |
Pole No. | 1P+N |
Tripping curve | B, C |
Rated voltage | AC 240V |
Rated current | 1,2,3,4,6,10,16,20,25,32 (A) |
Rated frequency | 50/60Hz |
Rated residual operating current In(A) | 0.03, 0.1,0.3 |
Electro-mechanical endurance | 4000 CYCLES |
Connection capacity | Flexible conductor 10mm² Rigid conductor 16mm² |
Connection terminal | Pillar terminal with clamp |

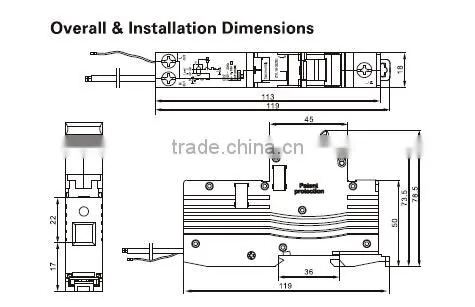

Terminal connection height | H1=19mm H2=22mm H3=18mm |
Installation | On symmetrical DIN rail 35mm Panel mounting |
Structure and Usage
1.Elegant appearance; cover and handle in arc shape make comfortable operation.
2.Contact position indicating window.
3.Transparent cover designed to carry label.
4.In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated munually.
5.RCBO handle can be locked either at ON position or at OFF position to prevent unwanted Operation of the product.
6.Provides protection against earth fault/leakage current, short-circuit and overload.
7.High short-circuit capacity.
8.Provides complementary protection against direct contact by human body.
9.Effectively protects electric equipment against insulating failure.
10.Contact position indication.
11.Provides protection against over-voltage.
Product's advantage
1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Order note
1,following items should be marked when ordering
2,product Name,model&Frame level
3,pole
4,Tripping characteristic and rated current
5,quantity
6,Ordering sample
Packaging:
The packaging of the mini circuit breaker is standard export carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the mini circuit breaker is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
