Main technical parameters for 4 position rotary switch,function of change over switch,automatic switches
The table below gives the main switch technical parameters
figure 1
| Model |
lth A |
Ui V |
Ue V |
AC-21A | AC-22A | AC-23A | AC-2 | AC-3 | AC-4 | AC-15 | DC-13 | ||||
|
Le A |
Le A |
Le A |
p kw |
Le A |
p kw |
Le A |
p kw |
Le A |
p kw |
Le A |
Le A |
||||
| LW28-20 | 20 | 660 | 440 | 20 | 20 | 15 | 7.5 | 15 | 7.5 | 11 | 5.5 | 3.5 | 1.5 | 4 | |
| 240 | 5 | 1 | |||||||||||||
| 120 | 5 | ||||||||||||||
| LW28-25 | 25 | 440 | 25 | 25 | 22 | 11 | 22 | 11 | 15 | 7.5 | 6.5 | 3 | 5 | ||
| 240 | 8 | 1.5 | |||||||||||||
| 120 | 9 | ||||||||||||||
| LW28-32 | 32 | 440 | 32 | 32 | 30 | 15 | 30 | 15 | 22 | 11 | 11 | 5.5 | 6 | ||
| 240 | 14 | 11 | |||||||||||||
| 120 | 25 | ||||||||||||||
| LW28-63 | 63 | 440 | 63 | 63 | 57 | 30 | 57 | 30 | 36 | 18.5 | 15 | 7.5 | |||
| 120 | 55 | ||||||||||||||
| LW28-125 | 125 | 125 | 125 | 125 | 100 | 45 | 100 | 45 | 50 | 22 | 18 | 12 | 90 | ||
| LW28-160 | 160 | 160 | 160 | 160 | 115 | 57 | 115 | 57 | 65 | 33 | 25 | 15 | 110 | ||
| Operating cycle | Racing | 8500 | Long-life electrical (time) |
||||||||||||
| A | 1500 | 20*104 | 6*104 | ||||||||||||
| Mechanical life (times) | |||||||||||||||
| The total | 1000 | 60*104 | |||||||||||||
The table below gives the relative size in figure 1
| Model | Panel shape | The size(mm) A B C L | A | b | d1 | d2 | |||
| LW28-20 | M1 square | 48 | 48 | 40 | 22+9.6n | 36 | 36 | φ8.5 | φ4.5 |
| M1 rectangle | 48 | 60 | 43 | 22+9.6n | 36 | 36 | φ8.5 | φ4.5 | |
| M2 square | 64 | 64 | 43 | 25+9.6n | 48 | 48 | φ10 | φ4.5 | |
| M1 rectangle | 64 | 80 | 43 | 25+9.6n | 48 | 48 | φ10 | φ4.5 | |
| LW28-25 | M1 square | 48 | 48 | 45.2 | 23+12.8n | 36 | 36 | φ8.5 | φ4.5 |
| M1 rectangle | 48 | 60 | 45.2 | 23+12.8n | 36 | 36 | φ8.5 | φ4.5 | |
| M2 square | 64 | 64 | 45.2 | 26.5+12.8n | 48 | 48 | φ10 | φ4.5 | |
| M1 rectangle | 64 | 80 | 45.2 | 26.5+12.8n | 48 | 48 | φ10 | φ4.5 | |
| LW28-32 | M2 square | 64 | 64 | 58 | 29.2+12.8n | 48 | 48 | φ10 | φ4.5 |
| M1 rectangle | 64 | 80 | 58 | 29.2+12.8n | 48 | 48 | φ10 | φ4.5 | |
| LW28-63 | M2 square | 64 | 64 | 66 | 29.2+21.5n | 48 | 48 | φ10 | φ4.5 |
| M1 rectangle | 64 | 80 | 66 | 29.2+21.5n | 48 | 48 | φ10 | φ4.5 | |
| M3 square | 88 | 88 | 66 | 29.2+21.5n | 68 | 68 | φ10 | φ4.5 | |
| M1 rectangle | 88 | 107 | 66 | 29.2+21.5n | 68 | 68 | φ10 | φ4.5 | |
| LW28-125 | M3 square | 88 | 88 | 84 | 35+26.5n | 68 | 68 | φ13 | φ6 |
| M1 rectangle | 88 | 107 | 84 | 35+26.5n | 68 | 68 | φ13 | φ6 | |
| LW28-160 | M3 square | 88 | 88 | 88 | 35+32.5n | 68 | 68 | φ13 | φ6 |
| M1 rectangle | 88 | 107 | 88 | 35+32.5n | 68 | 68 | φ13 | φ6 | |
Product introduction
LW28 series is mainly used for communication's switch 50Hz, rated voltage 440V and below, dc voltage 240V below and rated current to the electrical wiring 63A for manual less frequent switching circuit breaker or controlling and conversion, may also directly control three-phase induction motor and made to measure and control circuit. Product versatility, instead of transition state officially switch, can be used as the circuit control switch, the formal test equipment, motor control switch, switch to control switch and electric switch, and etc.
Conform to the standards
Main circuit and control switch directly with GB14048.3-2001. God makes the control switch GB14048.5-2001.
Normal working condition
1.Around air temperature no more than +40℃,within 24h, and no more than the average temperature+35℃;
2.the upper air temperature around. No more than -5℃;
3.Installing place shall not exceed altitude 2000m;
4.The highest temperature for+40℃,the air temperature is not more than 50% of the relative low, at the temperature can allow higher relative humidity, such as 20℃.to 90%. Due to temperature change of any specific measures occasionally.

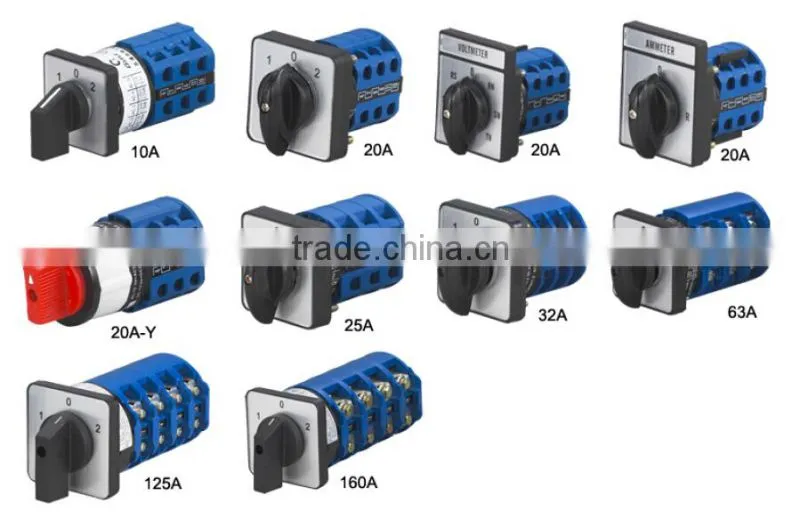

The detail of 4 position rotary switch,function of change over switch,automatic switches

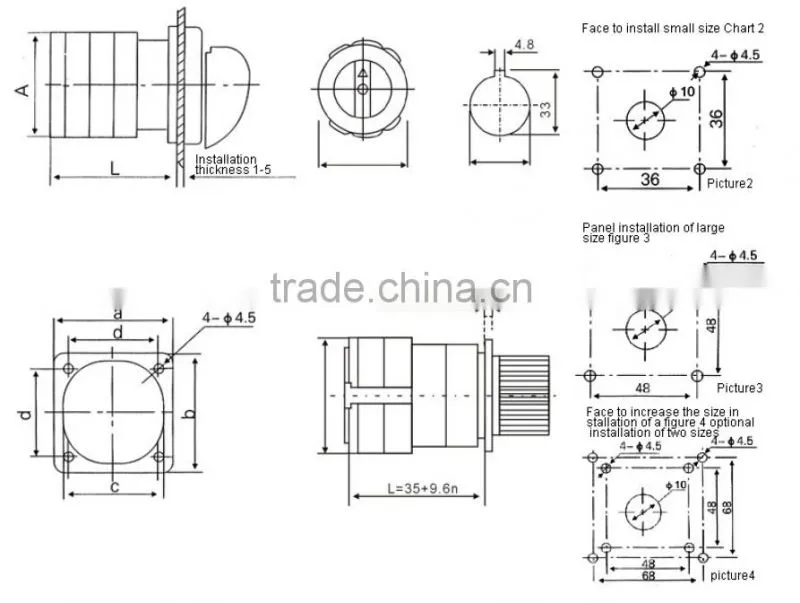

Shape dimension and installation dimensions
