Specifications
1.Competitive price2.OEM /ODM
3.High quality
4.Attentive Service
5.Customization & Personalization
|
Low voltage and low current With the white (contacts seat) |
High voltage, high current With the white (contacts seat) |
|
| Pick spots capacity | 24V 0.1A | 600V 15A |
| Contact impedance | During the early 10mΩbelow | During the early 50mΩbelow |
| Voltage | 2200VAC 1 minute | |
| Insulation impedance | 10mΩAbove 500VAC | |
| Life | Machinery:100,000Back to the above Electrical:100,000Back to the above |
|
| Operating mode | Manual reset | Automatic reset |
| Switch angles | 30°,45°,60°,90° | 45° |
| Switching number | 2-12 | 2-3 |
Use
Many stages selector switch is a multi-purpose products, from the power switch CNC control panel, can be widely used. The power switch, due to the use of high voltage, itself is high current so should use the silver contact alloy in the control panel, because of the CNC itselfis low voltage and low current so should use, due to the different gold joints shall use for products, and distinguish between pathologic will clearly marked likelihood ratio increases damage to the disciples, or contact adverse circumstances, in this company is introduced, the more suitable type, don't force, in blue and white/zone between two colors of high voltage and low voltage, high current and low current period can achieve the effect of work, and improve the service life of product.

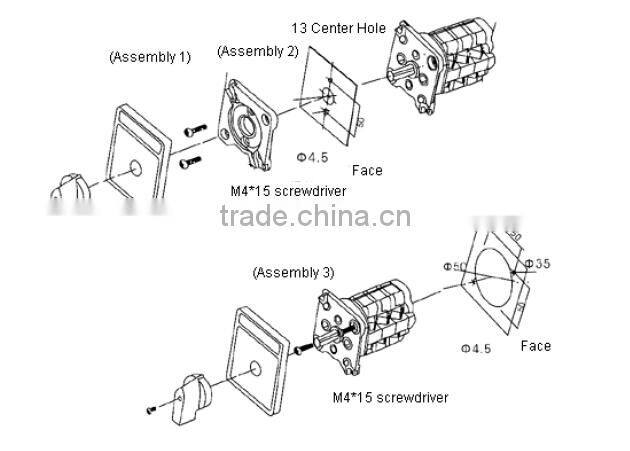

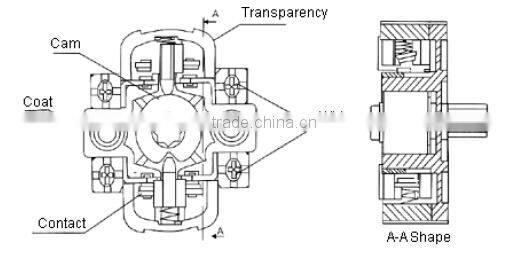

The detail of CS - 68 automatic transfer switch, rotary cam switch

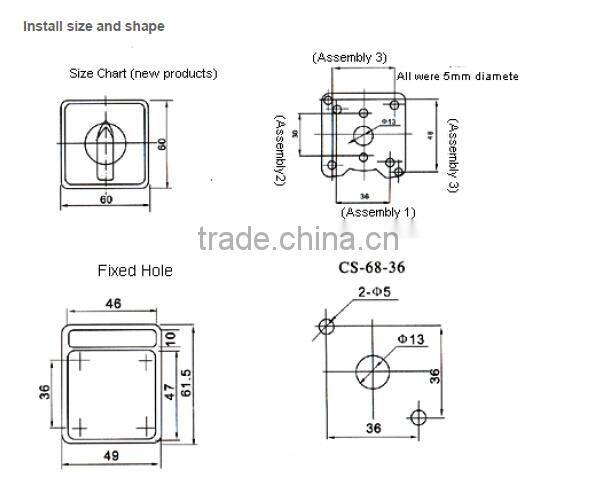

Fixed size hole
| Repeatedly | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| A/Length | 40 | 55.5 | 71.5 | 6.5 | 102 | 11 | 133 | 148 | 164 | 179 |
Product's advantage
1.our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
2.The fast and flexible production form aim at the customer require;
3.The deliveries exactly in accordance with customer orders
4.The fast transportation.
Order note
1,following items should be marked when ordering
2,product Name,model&Frame level
3,pole
4,Tripping characteristic and rated current
5,quantity
6,Ordering sample
Packaging:
The packaging of the rotary cam switch is standard export carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the rotary cam switch is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch rotary cam switch
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
