Specifications
1.Competitive price2.OEM /ODM
3.High quality
4.Attentive Service
5.Customization & Personalization
Main technical parameters for GLD11 type of bremas rotary cam switch,manual power transfer switch
| Using category | IEC/BS/VDE Rated nominal value | |||||
| Current or power |
Hot currents Lth |
Interaction load Ac21 |
Ac23 Accidentally switched motor or high inductance load |
Ac3 Direct online start motor |
||
| Switch type | 3*220-240v | 3*380-440v | 3*220-240v | 3*380-440v | ||
| GLD11-25 | 25A | 25A | 4KW | 7.5KW | 3KW | 5.5KW |
| GLD11-32 | 32A | 32A | 5.5KW | 11KW | 4KW | 7.5KW |
| GLD11-40 | 40A | 40A | 7.5KW | 15KW | 7.5KW | 11KW |
| GLD11-63 | 63A | 63A | 11KW | 22KW | 11KW | 12.5KW |
| GLD11-80 | 80A | 80A | 18.5KW | 30KW | 15KW | 22KW |
| GLD11-100 | 100A | 100A | 22KW | 37KW | 18.5KW | 30KW |
Note:
1. With adjustable axis, the length of 200mm in axis
2. This type with the ground.
3. P, N - a neutral grounding terminals, E

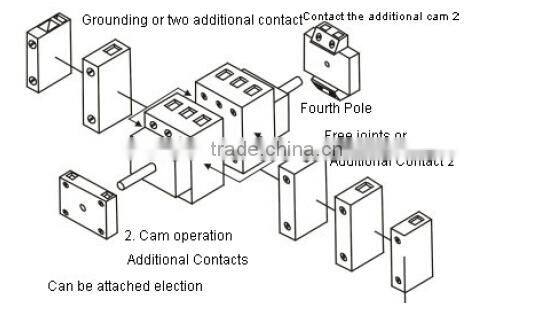

4. Above all types of free optional accessories, lateral installation additional contacts, top mounted additional contacts, active, handle, door padlock interlock, etc

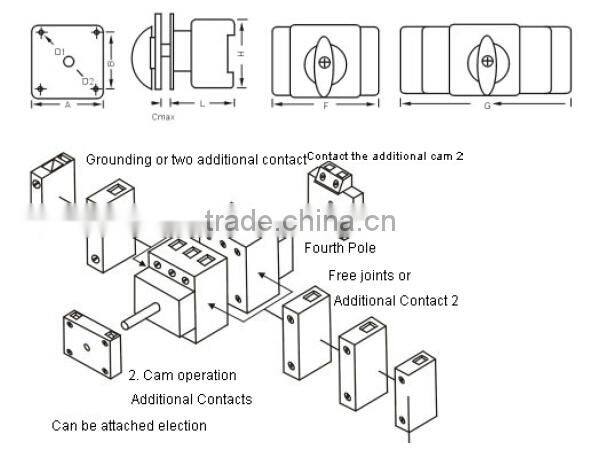

| Switch | Type | Poles | A | B | Cam | D1 | D2 | F | G | H | L |
|
GLD11-25 GLD11-32 |
On-Off On-Off On-Off On-Off |
3 extremely 4 extremely 3 extremely+N 3 extremely+N+E 6 extremely |
64 | 48 | 4 | 4 | 22 | 42 | - | 54 | 62 |
| 64 | 48 | 4 | 4 | 22 | 56 | - | 54 | 62 | |||
| 64 | 48 | 4 | 4 | 22 | 56 | - | 54 | 62 | |||
| 64 | 48 | 4 | 4 | 22 | 69 | - | 54 | 62 | |||
| 64 | 48 | 4 | 4 | 22 | 42 | 84 | 54 | 62 | |||
|
GLD11-40 GLD11-63 |
On-Off On-Off On-Off On-Off |
3 extremely 4 extremely 3 extremely+N 3 extremely+N+E 6 extremely |
64 | 48 | 4 | 4 | 22 | 5 | - | 64 | 67 |
| 64 | 48 | 4 | 4 | 22 | 66 | - | 64 | 67 | |||
| 64 | 48 | 4 | 4 | 22 | 66 | - | 64 | 67 | |||
| 64 | 48 | 4 | 4 | 22 | 82 | - | 64 | 67 | |||
| 64 | 48 | 4 | 4 | 22 | - | 100 | 64 | 67 | |||
|
GLD11-80 GLD11-100 |
On-Off On-Off On-Off On-Off |
3 extremely 4 extremely 3 extremely+N+E 6 extremely |
64 | 48 | 4 | 5.5 | 22 | 70 | - | 80 | 82 |
| 64 | 48 | 4 | 5.5 | 22 | 92 | - | 80 | 82 | |||
| 64 | 48 | 4 | 5.5 | 22 | 104 | - | 80 | 82 | |||
| 48 | 68 | 4 | 5.5 | 22 | - | 140 | 80 | 82 |
Use
GLD11 is my company imported advanced technology to develop the most reliable performance of small volume, load breakers switch suitable for air-conditioning and ventilation system, water pump, suitable for industrial equipment, safety switch and used as insulation switches, equivalent to isolate KG20 overseas distribution circuit breaker KG100 - type load switch.
Normal working condition
1.Air temperature is not around, and its +40oC,than the average temperature within 24h not exceed +35oC:
2.Around the upper air temperature is not exceed -5oC;
3.Install the location at an altitude of not more than 2000m;
4.The highest temperature for +40oC,the air, no more than 50% of relative humidity in low temperature can allow the relative humidity is high, such as 90% 20oC to 90%.when due to temperature change. Occasionally produces lon should adopt special measures.

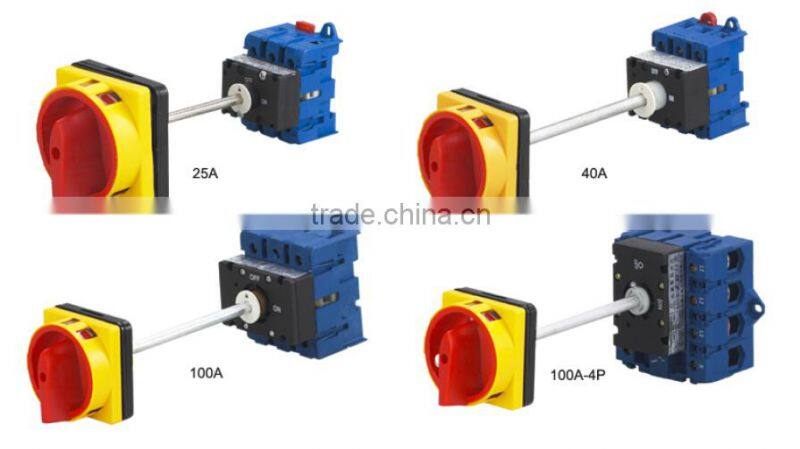

The detail of GLD11 type of bremas rotary cam switch,manual power transfer switch

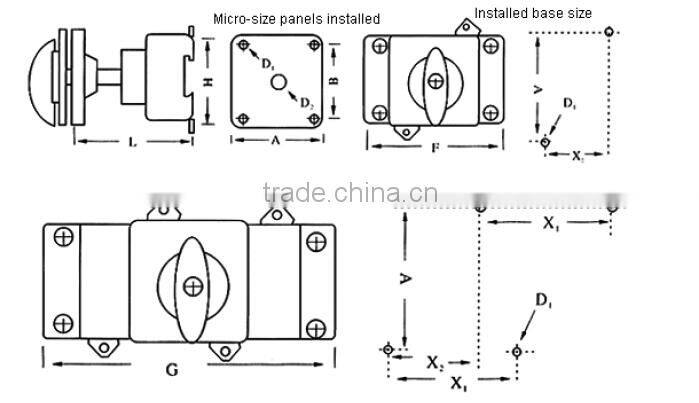

Shape and size installation dimensions
Features
1.Safety
The switch from the insulation disconnection contacts, reached 13 x 14mm VDE0113. Considerably more than the security requirements, in many cases, switch security level than the world existing electric block.
2.Flexible installation type
Switch suitable panel and can be used, installation, and base type can easily installed base and safely use screws or 35mm rail system installation, most strong flexibility and adaptability, additional contactor and neutral terminals may not remove switch and easily to increase theadditional contactor.
3.Convenient installation
Built-in screws can prevent manual operation sliding, pneumatic or power tools, ensure the best performance play during the installation and speed.
Parameters
| Switch | Type | Poles | B | D1 | F | H | L | X1 | Y |
| GLD11-25/GLD11-32 | On-Off | 3 Poles | 44 | 4 | 46 | 54 | 52 | 22 | 60 |
| GLD11-40/GLD11-63 | On-Off | 3 Poles | 45 | 4 | 53 | 64 | 59 | 25 | 70 |
| GLD11-80/GLD11-100 | On-Off | 3 Poles | 45 | 5.5 | 70 | 80 | 65 | 25 | 90 |
Packaging:
The packaging of the bremas rotary cam switch is standard export carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the bremas rotary cam switch is within 20-30 days after receiving payment.
t bremas rotary cam switch
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
