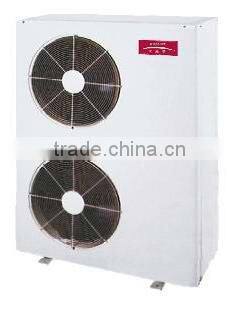

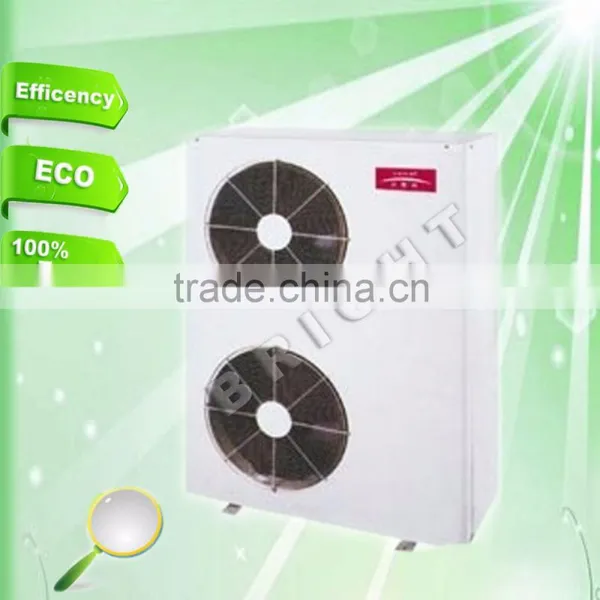

Air Cooled Condensing Units

FEATURES:

²  Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.

²  Single phase rotary compressors (mod. 5÷7) and 3-phase scroll compressors (mod.8.5÷25), with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.

²  External rotor type axial fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, provided with a protective outlet grille.

²  Coils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins, protected with flexible plastic grill.

²   EXTERNAL REGFIGERANT CONNECTION :  Screw thread connection (mod. 5÷15) and copper tube welding connection (mod.20÷25).

²   ELECTRIC PANEL  consists of:

• Compressor contactor;
• Compressor breaker;
• Compressor overheat protection;
• Fan motor breaker;
• Fan motor capacitor;
• Control panel breaker;
• Phase sequence relay (mod.8.5÷25 only);
• Fan speed regulator (mod. 12.5÷25 only)
• Programmable microprocessor controller;

Product shows:
