FEATURES:
² 7 sizes available ranging from 17600 to 55500 Btu/h cooling capacity. Cooling only version.
² Quiet top air discharge.
² Fully exposed refrigerant connections and a single control panel cover make servicing easy.
² Operating sounds are minimized through upward discharge air flow.
² Secured, re-usable service valves are standard equipment on both the liquid and vapor sweat connections for ease of evacuating and recharging
Specifications:
| Mode | CTF018NW2B | CTF024NW2B | CTF030NW2B | CTF036NW2B |
| Dimensions (inch) | 24*22(1/2)*22(1/2) | 24*22(1/2)*22(1/2) | 28*22(1/2)*22(1/2) | |
| Net weight (kg) | 50 | 56 | 68 | 72 |
| Rated cooling capacity (Btu/h) | 17600 | 22600 | 28600 | 34500 |
| Seer (Btu/h-W) | 10 | |||
| Voltage | 208~230V/ 1Ph / 60 Hz | |||
| Minimum Circuit Ampacity (A) | 10.3 | 15.4 | 17 | 20.3 |
| Maximum Circuit Breaker (A) | 20 | 25 | 30 | 35 |
| Power Input Watts (W) | 1910 | 2530 | 3150 | 3750 |
| Compressors | ||||
| LRA (A) | 47 | 52 | 66 | 76.5 |
| RLA (A) | 8.1 | 12.7 | 13.6 | 16.5 |
| Fan Size (inch) | Φ20 | |||
| Motor Amps (A) | 1.3 | |||
| Motor power input(W) | 1.88 | |||
| Liquid Quantity(R22)ml | 1700 | 1800 | 2100 | 2300 |
* The performance values refer to the following conditions:
Outdoor temperature DB 35°C (95F), WB 24°C (75F).
** Seer: rated in accordance with ARI 210-895 and D.O.E. Test Standards.

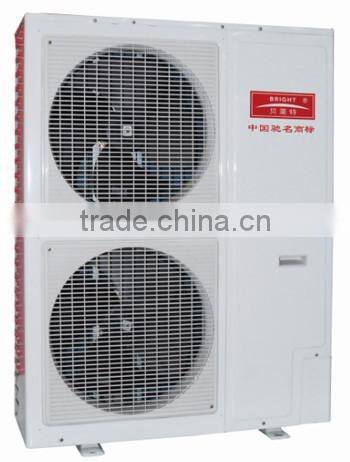

Product shows:
Factory shows:
A total area of 600,000 square meters and 200,000 square meters for workshop
Inside workshop:
Featured products:
