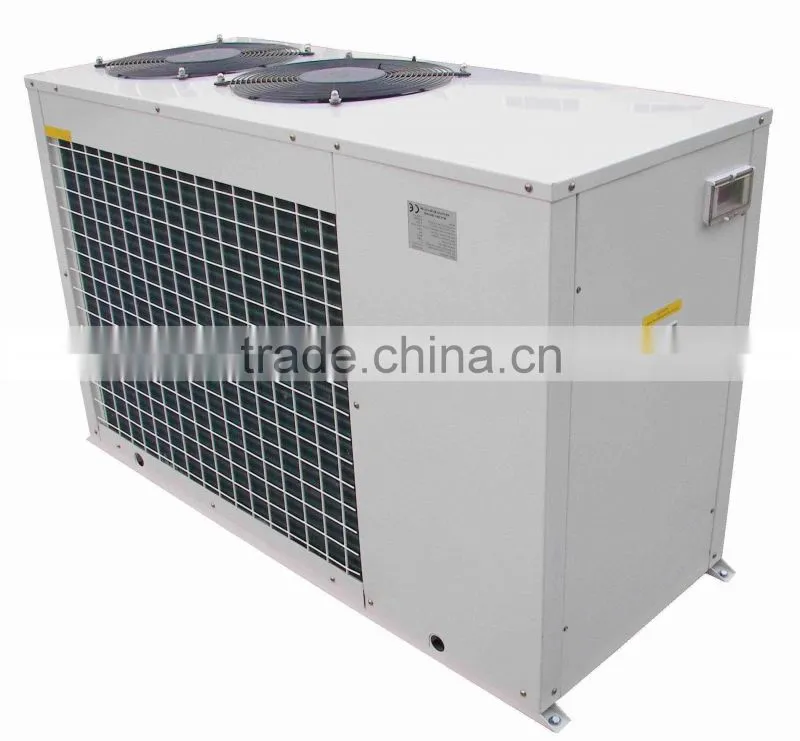

Help CenterAir Source Heat Pump With Heat Recovery
Related Products
-
Modular Type Water Source Heat Pump ( With Scrow Compressor),NegotiableMOQ: 1 Unit -
Muti-function Type Water Source Heat PumpNegotiableMOQ: 1 Piece
-
Packaged Water to Air Water Source Heat PumpNegotiableMOQ: 1 Set
-
Ceiling Type Packaged Water to Air Water Source Heat PumpUS$ 2,000 - 20,000MOQ: 1 Set
-
Packaged Ground Water Source ChillerUS$ 2,000 - 20,000MOQ: 1 Set
Specifications
Model : H(R)CF 5-30HCooling capacity: 5.2-29.3 kW
Heating capacity: 5.8-34 kW
Heat recovery: 1.4-7.6 kW
FEATURES STRUCTURE Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSORS Single phase (mod. 5÷10) and 3-phase scroll compressor (mod.8.5÷30), with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
AXIAL FANS External rotor type axial fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, provided with a protective outlet grille.
EVAPORATOR High efficiency plate type, factory insulated with flexible close cell material.
CONDENSER Coils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins, protected with flexible plastic grill.
DESUPERHEATER High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material.
REFRIGERANT CIRCUIT Copper tube connection with charge valve, filter, sight glass, gas-liquid separator, thermostatic expansion valve, low pressure switch with automatic reset, high pressure switch with manual reset. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
HYDRONIC CIRCUIT Built with air vent valve, water drain connection, and female-threaded hydraulic connectors.
ELECTRIC PANEL
consists of:
Compressor contactor;
Compressor protection breaker;
Fan motor protection breaker; C
ontrol circuit protection breaker;
Phase sequence relay (only for 3-phase power supplied units);
Programmable microprocessor controller
OPTIONAL
Additional electric heater embedded in the coils for defrosting in low temperature ambient. It must be factory installed.
