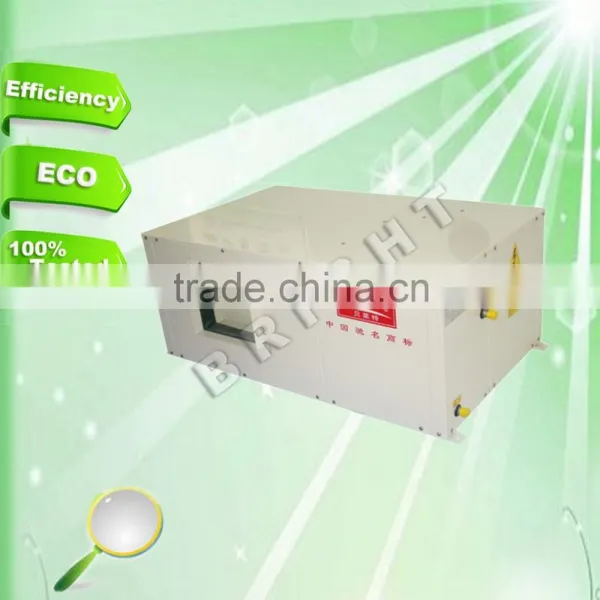

Help CenterCeiling Type Packaged Water to Air Water Source Heat Pump
Related Products
-
Packaged Ground Water Source ChillerUS$ 2,000 - 20,000MOQ: 1 Set -
Packaged Water to Air Water Source Heat Pump Ceiling TypeUS$ 2,000 - 20,000MOQ: 1 Set
-
R22 and R134a (280kW~3800kW )Flooded Type Water Cooled Heat PumpUS$ 2,000 - 20,000MOQ: 1 Set
-
Ultra-high Temperature Ground Source Heat PumpUS$ 2,000 - 20,000MOQ: 1 Set
-
Ground Source Heat PumpNegotiableMOQ: 1 Set
FEATURES:
² CENTRIFUGAL FAN
High efficiency, double inlet centrifugal fan Protection level IP44. Low noise, low speed, big air flow and high ESP
² WATER SIDE HEAT EXCHANGER:
High efficiency coaxial heat exchanger, factory insulated with flexible close cell material
² REFRIGERANT CIRCUIT
Copper tube connection with charge valves, filter, capillary for mod. 10÷60(except Model 70 and above models, which use expansion valve) ; high pressure switch and low pressure switch. The heat pump units are complete also with 4-way valve
and one way valve
Specifications:
Model |
WLF20ZDG |
WLF50ZDG |
WLF100ZDG |
|
Power supply |
220V/1pH/50Hz |
220V/1pH/50Hz (380V/3pH/50Hz) |
380V/3pH/50Hz |
|
Cooling Capacity (kW) |
4.76 |
12.74 |
29.5 |
|
|
||||
Fan motor power (W) |
165 |
460 |
1100 |
|
|
Compressor power input (kW)
|
Cooling |
1.014 |
3.09 |
6.73 |
Heating |
1.064 |
3.27 |
7.11 |
|
Air flow (m³/h) |
High |
980 |
2500 |
5100 |
Medium |
780 |
2000 |
-- |
|
Low |
580 |
1500 |
-- |
|
water flow (m³/h) |
0.97 |
2.75 |
6.24 |
|
Noise level dB(A) |
42 |
47 |
51 |
|
Dimensions(mm) |
970*734*410 |
1370*864*530 |
1540*934*685 |
|
Net weight (kg) |
68 |
160 |
270 |
|
Compressor Brand |
Hanbell/ Fusheng/ Bitzer |
|||
Performance values refer to the following conditions:
*Nominal Cooling capacity test condition:
Water side water inlet/outlet temperature 30ºC/35ºC, Indoor temperature DB 27 ºC, WB 19 ºC"
**Nominal Heating capacity test condition:
Water side water inlet 20ºC/, Indoor temperature DB 20 ºC, WB 15 ºC "
*** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in a dear field
Product shows:

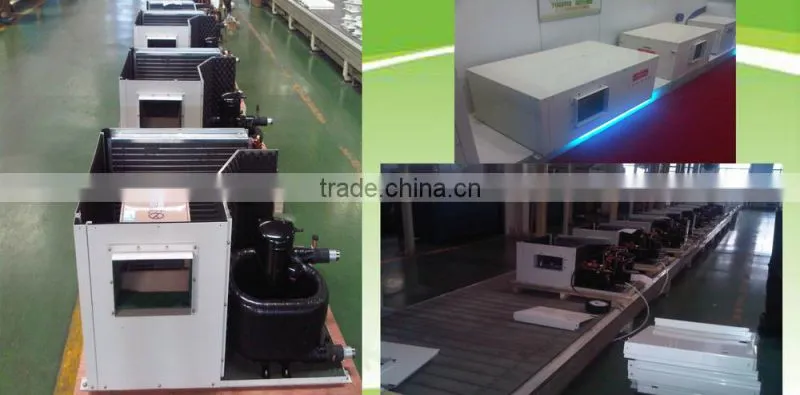

Factory shows:
A total area of 600,000 square meters and 200,000 square meters for workshop
Inside workshop:
Established in 1987, BRIGHT has specialized in air conditioner, HVAC system & parts as a the leader in north of china.
BRIGHT is provided with Quality certification according to ISO 9001:2000 and ISO14001:2004.
Featured products:
