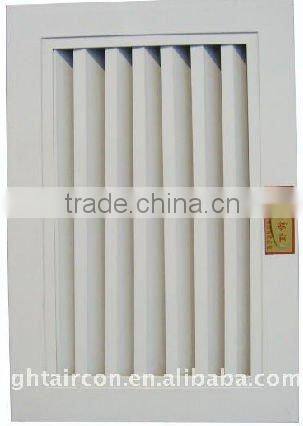

Ceiling mounted type Fan coil unit, Air discharge outlet

Specifications

Ducted fan coil unit (ceiling type air conditioner)
Air discharge outlet
Air Flow: 1600m3/h -- 16000m3/h

Air discharge outlet

Ducted fan coil unit (ceiling type air conditioner)
Air Flow: 1600m3/h -- 16000m3/h

 Ducted fan coil unit (ceiling type air conditioner)
Air Flow: 1600m3/h -- 16000m3/h



 This series ductable fan coil units are designed in 3 types installation: vertical, horizontal and ceiling mounted, to meet the varied requirements of zone cooling or heating using chilled water or hot water, suitable for cooling/heating, dehumidifying of air conditioning environment. This range is widely used in industrial and commercial buildings, such as shopping centre, textile factories, electronic factories and hospitals where need air treatment.



FEATURES



PRACTICAL INSTALLATION

The structure is made with galvanized steel, and aluminum profiles for ceiling mounted type. Pre-painted double-shell steel panels (sandwich type) internally insulated with polyurethane material.

HEATING COIL

The coils are made of seamless tubes expanded into aluminum fins in continuous block. All coils are tested for leakage.

FAN DECK

External rotor type centrifugal fan motor for vertical and horizontal units, and belt-drive type for ceiling mounted units, low noise.

The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.

FILTER

The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame. Three types pull-out method: up, left and right as request.



DRIP TRAY

The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents.



ELECTRICAL CONNECTION BOX

All electric wires are connected to enclosed electrical terminal block.



OPTIONAL

Additional heating coil

Additional electric heater

Wet deck type humidifier

Spray type humidifier (air washer)

Steam humidifier
