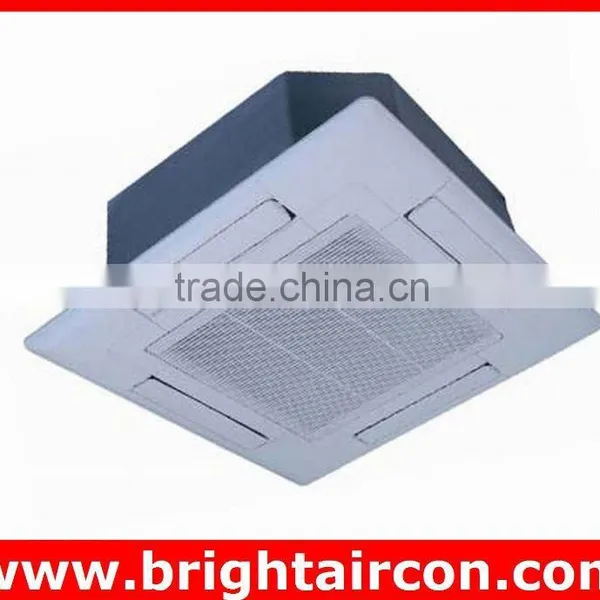

Help CenterWater Chilled 4-Way Cassette Fan Coil Units (2 Pipe and 2 Rows)
Related Products
-
Water Chilled Fan Coil Units (4 Pipe and 3+1rows)NegotiableMOQ: 1 Set -
Water Chilled Fan Coil Units (2 Pipe and 4rows)NegotiableMOQ: 2 Sets
-
Water Chilled Fan Coil Units (2 Pipe and 3rows)NegotiableMOQ: 5 Sets
-
Fan Coil Units for Duct InstallationNegotiableMOQ: 5 Sets
-
Water Chilled 4-Way Cassette Fan Coil Units (4 Pipe and 2 Rows)NegotiableMOQ: 5 Sets
Specifications
Fan coil can be applied to two or four pipe systems to satisfy the requirements of a wide variety of of air conditioning.Available in 9 models. The whole range is designed for
suspended ceiling installation.
Compact design, suitable for strict space installation.
Centrifugal fan with backward vanes, driven by a
three-speed motor, statically and dynamically balanced,
low noise.
Three-speed electric motors with thermal protector for
windings, with a low number of revolutions.
Luxury shape and ABS panel. External and internal
sound and heat insulation layer--20mm thickness
insulation cabinet made with EPS inside unit and 5mm
insulation material out side unit cabinet. Inside the panel
adhered with EPS polystyrene foamed material.
The coils are made of seamless tubes expanded into
aluminum fins in continuous block. The connections have
brass headers with female fittings and provided with
easily accessible vent and drainage valve.
The easily removable filter is made of filtering honeycomb
polypropylene fabric and supported by a plastic frame.
The drip tray is complete with a drain pump for draining
the condensate water.
All electric wires are connected to enclosed electrical
terminal block.
Remote controller is standard; Normal line controller or
LCD line controller is optional.
2 pipes and 2 rows type as standard
