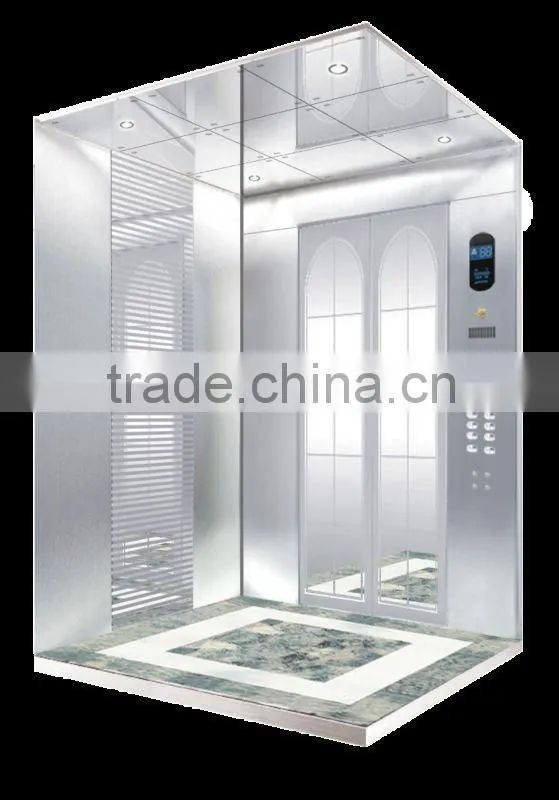

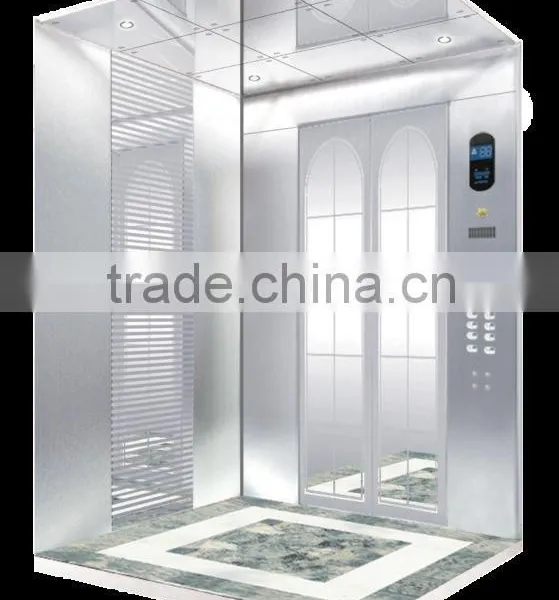

Help CenterPassenger Elevator (EC1-126)
Related Products
-
Passenger Elevator Machine-roomless Type(EC1-116)US$ 15,000 - 30,000MOQ: 1 Unit -
Passenger Elevator Machine-roomless Type(EC1-102)US$ 15,000 - 30,000MOQ: 1 Unit
-
Passenger Elevator Machine-roomless Type(EC1-103)US$ 15,000 - 30,000MOQ: 1 Unit
-
Passenger Elevator Machine-roomless Type(EC1-111)US$ 15,000 - 30,000MOQ: 1 Unit
-
Passenger Elevator Machine-roomless TypeUS$ 15,000 - 30,000MOQ: 1 Unit
Adopting the advance high speed gearless magnetic synchronized traction machine, its control driving system is VVVF compensated by auto high speed moment to achieve lowest noise.
Advance CAN micro computers network control system, with main board BT304 from Germen Edunburgh as its core, can control 16 elevators as a group. The advance double 32 bits CPU in the world, can achieve duplex or group control with only simply connecting one CAN communication interface controller without separate group control cabin
Option: remote monitoring system and charge function of IC cards.
Option: energy return device, wireless information transmitting and analyzing system.
Large car: with max capacity of 21 persons, can meet the speed request between 1.75m/s-4.0m/s
| Rated load | Persons | Rate speed |
Net Dimension of Car |
Car height |
Dimension of hoistway |
Dimension of Door Opening |
Over head | Pit Depth |
| kg | V(m/s) | AA×BB | AH×BH | JJ×HH | OH | PD | ||
| 1000 | 13 | 2 | 1600×1500 | 2500/2600 | 2300×2300 | 900×2200(2300) |
4600/4700 | 1750/1750 |
| 2.5 | 4800/4900 | 1900/1900 | ||||||
| 3 | 2450×2350 | 5200/5300 | 3100/3100 | |||||
| 3.5 | 5500/5600 | 3300/3300 | ||||||
| 4 | 5900/6000 | 3750/3750 | ||||||
| 1250 | 16 | 1.75 | 2000×1400 |
2350/2438 /2500/2600 |
2500×2100 |
1100× 2100(2200)(2300) |
4300/4300 /4300/4400 |
1700/1700 /1700/1700 |
| 2 | 2500/2600 | 2800×2200 |
1100× 2200(2300) |
4600/4700 | 1750/1750 | |||
| 2.5 | 4800/4900 | 1900/1900 | ||||||
| 3 | 2900×2300 | 5200/5300 | 3100/3100 | |||||
| 3.5 | 5500/5600 | 3300/3300 | ||||||
| 4 | 5900/6000 | 3750/3750 | ||||||
| 1350 | 18 | 1.75 | 2000×1500 |
2350/2438 /2500/2600 |
2500×2200 |
1100× 2100(2200)(2300) |
4300/4300 /4300/4400 |
1700/1700 /1700/1700 |
|
4600/4600 /4600/4600 | ||||||||
| 2 | 2500/2600 | 2800×2300 |
1100× 2200(2300) |
4600/4700 | 1750/1750 | |||
| 4700/4700 | ||||||||
| 2.5 | 4800/4900 | 1900/1900 | ||||||
| 5100/5100 | ||||||||
| 3 | 2900×2400 | 5200/5300 | 3100/3100 | |||||
| 3.5 | 5500/5600 | 3300/3300 | ||||||
| 4 | 5900/6000 | 3750/3750 |
Shanghai Edunburgh Elevator Inc. is an integrated supplier and producer in R&D, production, distribution, installation and maintenance of elevator, escalator, and mechanic parking system and is extending its business into the integrated energy-saving environmental building equipment of building intellectual system, low-voltage apparatus, energy-saving LEC and fire extinguishing system. Our headquarter is located in Caohejing Hi-tech Park with a floor space of 87,000m2, an R&D office building of 30,000 m2, modern manufacturing base of 30,000 m2, an logistics center of 20,000 m2, a group control elevator test tower of 110m, automatic manufacturing lines and advanced detection and test equipments. Our products are sold domestic as well Europe, Middle East and Southeast Asia.
Shanghai Edunburgh Elevator Inc. is the first elevator company that wins the elevator energy efficiency certificate and wins a series of honors, the first preferred brand of government procurement.Edunburgh also wins a series of honors, such as “Contract-Honoring Enterprise”, “high- and new-tech enterprises of Shanghai”, “Certificate of Contract Credit (AAA)” and “Famous Trademark of Shanghai”. Edunburgh possesses more than 80 national and international patents and awarded as model company of intellectual property of Shanghai. Its products are granted to be famous brand of Shanghai and certificated by Shanghai Science and Technology Ministry to be key new products of Shanghai.
Shanghai Edunburgh Elevator Inc. cooperates with many European suppliers such as MCE (America), MEILLER (Germany), PFEIFER (Germany), WITTUR (Germany) and CT (UK) and also engages into the R&D of hi-tech, electric energy-saving and high-safety elevator with Jiaotong University and Huazhong Technology University. Edunburgh is acknowledged in the international elevator industry as an initiator of elevator safety technology, a pioneer of energy-saving technology and the best practitioner of humanity hi-tech service technology.
From 2005 Edunburgh has been serving the 2010 EXPO Shanghai and is the only elevator supplier of EXPO Commander Office Building, Administration Center Building and Media Center Building.
“Customer Satisfaction” has been Edunburgh People’s consistent pursuit and Quality Management is Edunburgh’s foothold. In the process of production quality control, installation and service Edunburgh sticks strictly to ISO9001-2000, ISO14000, OHSAS18000 and related international standard management systems. In order to provide our customers with the most comprehensive service and support, Edunburgh establishes a professional installation and service team, 24 hours free hotline and a national spreaded service network and quick responded spare parts supply system. |
|
