Specifications

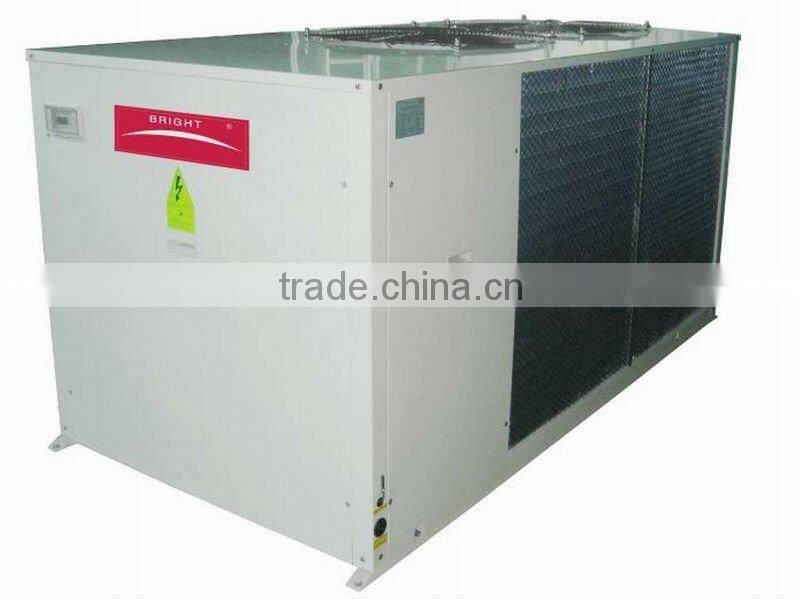

Air-cooled Water Chiller and Heat Pump, Precision air conditionerMini Chiller R410a
H(R)AF 40-50
Cooling capacity: 37.4-50KW
Air source heat pump
Air-cooled Water Chiller and Heat Pump, Precision air conditioner
H(R)AF 40-50
Cooling capacity: 37.4-50 KW
Heating capacity: 41.5-55.6 KW
Air source heat pump with axia fans ,scroll compressors and storage tank,stable function, high efficiency.
FEATURES:
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSORS
Three phase scroll compressor, with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
AXIAL FANS
External rotor type axial fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, provided with a protective outlet grille.
EVAPORATOR
High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Coils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins, protected with flexible plastic grill.
REFRIGERANT CIRCUIT
Copper tube connection with charge valve, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, low pressure switch with automatic reset, high pressure switch with manual reset.
The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
HYDRONIC CIRCUIT
Built with air vent valve, water drain connection, male-threaded hydraulic connectors and water storage tank .
ELECTRIC PANEL
consists of:
Compressor contactor;
Compressor protection breaker;
Fan motor protection breaker;
Control circuit protection breaker;
Phase sequence relay
Programmable microprocessor controller;
Heat recovery functions
