Specifications

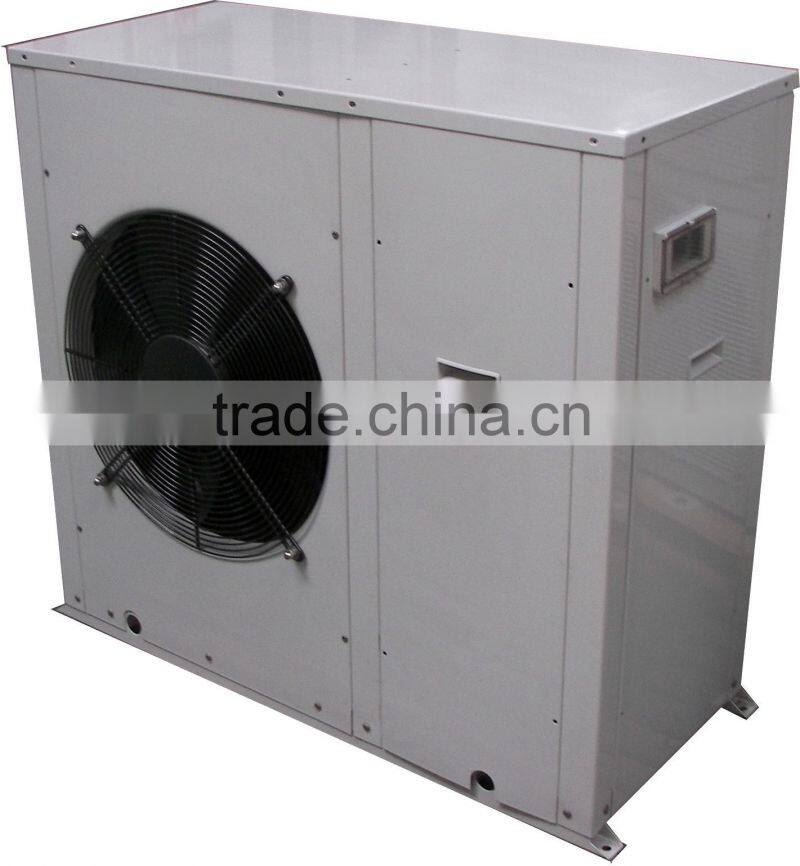

Air-cooled mini chiller and heat pump, Precision HVAC with Scroll Compressor R410aH(R)AF 05-30
Cooling capacity: 5.8-26.3 KW
Air-cooled mini chiller and heat pump, Precision HVAC
Air-cooled Water Chiller and Heat Pump with Scroll Compressor R410a
Air source heat pump
H(R)AF 05-30
Cooling capacity: 5.8-26.3 KW
Heating capacity: 6.3-31.2 KW
Air source heat pump with axia fans ,scroll compressors and storage tank,stable function, high efficiency.
FEATURES:
STRUCTURE
Panels and base frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
HERMETIC COMPRESSORS
Single phase(mod.05-10) compressors, 3-phase scroll compressor (mod.12.5-30), with thermal overload cut-out and crankcase heater mounted on rubber vibration isolators.
Models 7-10 are available also with 3-phase scroll compressor and mod.12.5 with single phase scroll compressor.
AXIAL FANS
External rotor type axial fans, equipped with single phase direct drive motors, low noise 6 poles, protection level IP54, provided with a protective outlet grille.
EVAPORATOR
High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material.
CONDENSER
Coils are consisting of seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins, protected with flexible plastic grill.
REFRIGERANT CIRCUIT
Copper tube connection with charge valve, filter drier (filter for 0.5-8.5), gas-liquid separator, thermostatic expansion valve (expansion capillary tubes for mod. 0.5-8.5), low pressure switch with automatic reset, high pressure switch with manual reset.
The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
HYDRONIC CIRCUIT
Built with air vent valve, water drain connection, water circuit safety valve, water pump, differential pressure switch, expansion vessel, male-threaded hydraulic connectors and inertial water storage tank .
ELECTRIC PANEL
consists of:
Compressor contactor;
Water pump contactor;
Compressor protection breaker;
Water pump protection breaker
Fan motor protection breaker;
Control circuit protection breaker;
Phase sequence relay (only for 3-phase power supplied units);
Fan speed regulator (Optional);
Programmable microprocessor controller;
