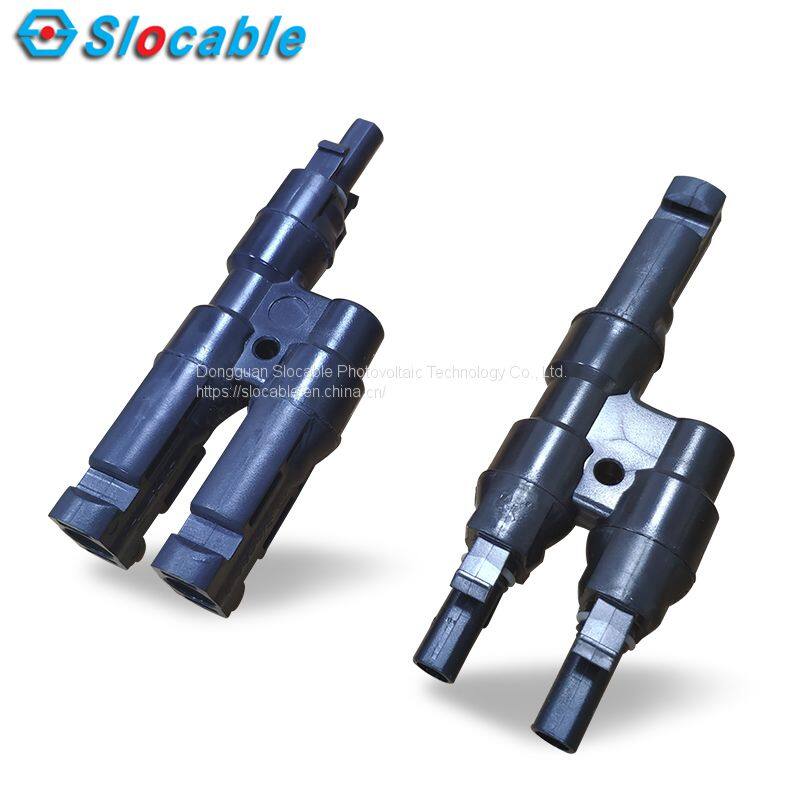

Split connector for MC4
1.CE approved
2. Protection:IP2*/IP67
3.Contact material:Copper,Silver plated
4.MOQ:200set

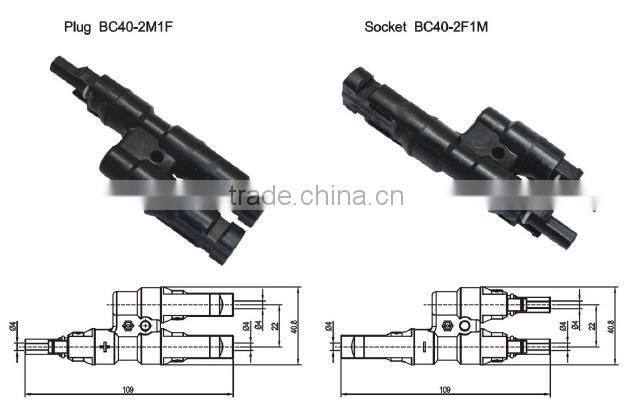

Split connector for MC4
Detail information of Split connector for MC4 :
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High current carrying capacity
·CE approved
Split connector for MC4 Technical Data | |
Rated current : 30A(2.5-6mm²) |
Degree of protection: IP2*/IP67 |
Retaed voltage: 1000V DC |
Flame class : UL94-V0 |
Test voltage: 6000V(50Hz,1min) |
Safety class: II |
Overvoltage category:CATIII |
Temperature range: -40~+110 |
Contact resistance of plug connector: 1mΩ |
Insertion force/withdrawal force: ≤50N/≥50N |
Contact material: Copper,Silver Plated |
|
Insulation material : PPO |
|
Slocable company is a professional design,production,operation in a modern management enterprise.Our main products including PV cable ,PV connectors and PV junction box, having been certifided by TUV approved.We are according to customer demand-oritended,relying on a stronge R&D team, perfect test for detection equipment and scientific management system.We are providing economicsafeefficienthign-quality solution and the best competitive advantage for component manufacture,system installation.
Company strictly according to ISO9001-2000 quality management system operation, all the products from improting material,processing ,assembly to shipping and other links are subject to rigrous control to mobilize, to buil customer satifided products.
Qing dao Railway Station ,Wei hai Civic Square,Hohhot East Railway Station ,Shenzhen Vanke group office building, Guangzhou New TV Tower and other projects using our related products.
