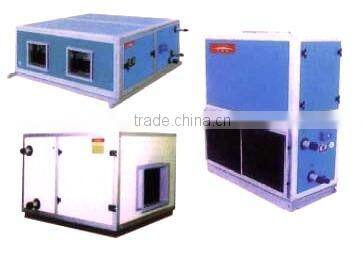

Ductable Fan Coil Unit, Air Handling Unit--Horizontal Type

Specifications

Horizontal Air Handling Unit

Ductable Fan Coil unit, Horizontal type Air conditioner
WSP 2-40
Air flow: 2000-40000 m3/h

PRACTICAL INSTALLATION

The structure of horizontal and vertical units is made with galvanized steel, and aluminum profiles for ceiling mounted type. Pre-painted double-shell steel panels (sandwich type) internally insulated with polyurethane material.

HEATING COIL

The coils are made of seamless tubes expanded into aluminum fins in continuous block. All coils are tested for leakage.

FAN DECK

External rotor type centrifugal fan motor for vertical and horizontal units, and belt-drive type for ceiling mounted units, low noise.

The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.

FILTER

The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame. Three types pull-out method: up, left and right as request.

DRIP TRAY

The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents.

ELECTRICAL CONNECTION BOX

All electric wires are connected to enclosed electrical terminal block.

OPTIONAL

Additional heating coil

Additional electric heater

Wet deck type humidifier

Spray type humidifier (air washer)

Steam humidifier
