Specifications
Air Handling UnitDuctable Fan Coil unit, Vertical type Air conditioner
LSP 2-40
Air flow: 2000-40000 m3/h
Air Handling Unit

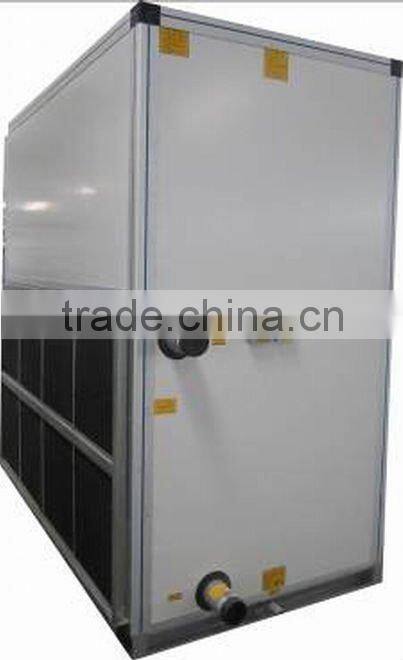

Ductable Fan Coil unit, Vertical type Air conditioner
LSP 2-40
Air flow: 2000-40000 m3/h
PRACTICAL INSTALLATION
The structure of horizontal and vertical units is made with galvanized steel, and aluminum profiles for ceiling mounted type. Pre-painted double-shell steel panels (sandwich type) internally insulated with polyurethane material.
HEATING COIL
The coils are made of seamless tubes expanded into aluminum fins in continuous block. All coils are tested for leakage.
FAN DECK
External rotor type centrifugal fan motor for vertical and horizontal units, and belt-drive type for ceiling mounted units, low noise.
The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.
FILTER
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame. Three types pull-out method: up, left and right as request.
DRIP TRAY
The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents.
ELECTRICAL CONNECTION BOX
All electric wires are connected to enclosed electrical terminal block.
OPTIONAL
Additional heating coil
Additional electric heater
Wet deck type humidifier
Spray type humidifier (air washer)
Steam humidifier
