High Quality Fire Tube Cheap Oil Boiler

High Quality Fire Tube Cheap Oil Boiler thumbnail-1
High Quality Fire Tube Cheap Oil Boiler thumbnail-2
High Quality Fire Tube Cheap Oil Boiler photo-1
High Quality Fire Tube Cheap Oil Boiler photo-2
US$ 1,000 - 69,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Qingdao Tonghai Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao TianJin ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure Low Pressure
Style Horizontal
Fuel Oil-fired
Place of Origin Shandong, China
Brand Name TONG HAI
Model Number WNS
Output Steam
Dimension(L*W*H) Customization
Weight Customziation
Certification ISO CE ASME TUV
After-sales Service Provided Engineers available to service machinery overseas
Product Description
High quality fire tube cheap oil boiler
 WNS series boiler is full automatic oil(gas) fired steam boiler; adopting horizontal internal micro positive pressure combustion, full wetback design, high efficiency spirally corrugated tubes, fuel economizer and reasonable insulation package; the thermal efficiency can reach more than 93%. Its novel design, rational structural and nice performance achieved perfect quality and nice performance.

Main Features:

1, Honor patented technology: 100% completely butt welding, mini stress and reliable quality.

2. Large diameter corrugated furnace: Combustion chamber is composed by large diameter full corrugation furnace, big combustion space.

3, High steam quality: Large steam space volume and enough height of the net distance between steam water interface and steam outlet.

4, Advanced automatic control: Boiler controller use Siemens/Delixi electrical element.

5, Multifunction safety explosion proof equipment: Boiler rear panel is equipped with explosion proof equipment which connected with furnace.



a.Boiler Rated output :0.5-100t/h

b.Boiler Rated steam pressure:0.7-7.5Mpa

c.Boiler Steam temperature:184-350degree

d.Boiler Thermal efficiency: ≥93 %

h.Apply fuel:light or heavy oil, natural gas or town gas, coke oven gas

k.Adjustment method: automatic

 Technical specifications:

Item

Technical Specification

Capacity:

2t/h

3t/h

4t/h

5t/h

6t/h

8t/h

   10t/h

12t/h

Rated steam pressure:

1.0Mpa

1.0Mpa

1.0Mpa

1.0Mpa

1.25Mpa

1.25Mpa

1.25Mpa

1.25Mpa

Feed water temperature:

20℃

20℃

20℃

20℃

  105℃

105℃

105℃

105℃

Steam temperature:

184℃

184℃

184℃

184℃

194℃

194℃

194℃

194℃

Fuel Type:

Natural gas, light diesel, heavy oil, LPG

Efficiency:

Above 93%

Boiler Weight:

9649kg

10457kg

11840kg

15220kg

  17976kg

22657kg

25720kg

32000kg

Boiler Size:

2170*3750*2486mm

2170*4810*2620mm

2420*5110*2900mm

2516*4900*3014mm

2750*5660*3290mm

2940*5760*3482mm

2920*6630*3490mm

3000*6820*3482mm

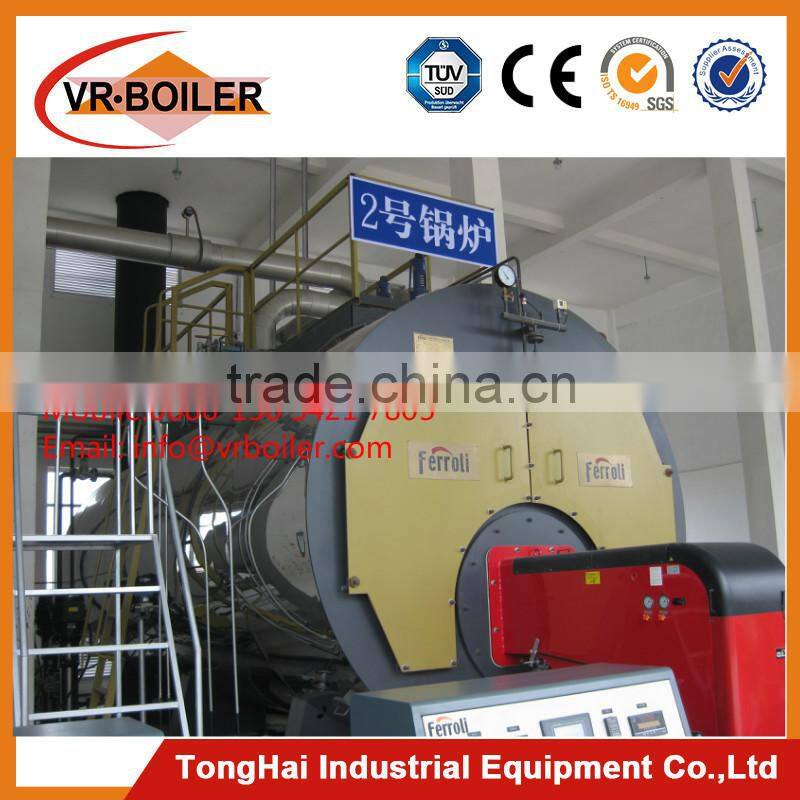

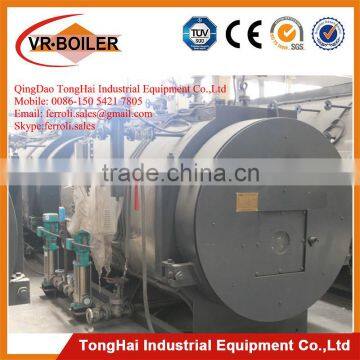

The boiler for export:

High quality fire tube cheap oil boiler

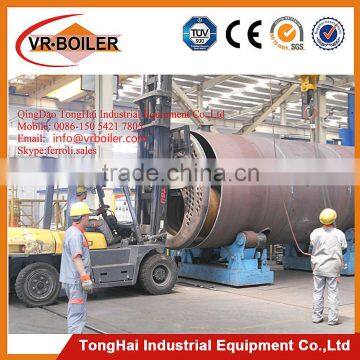

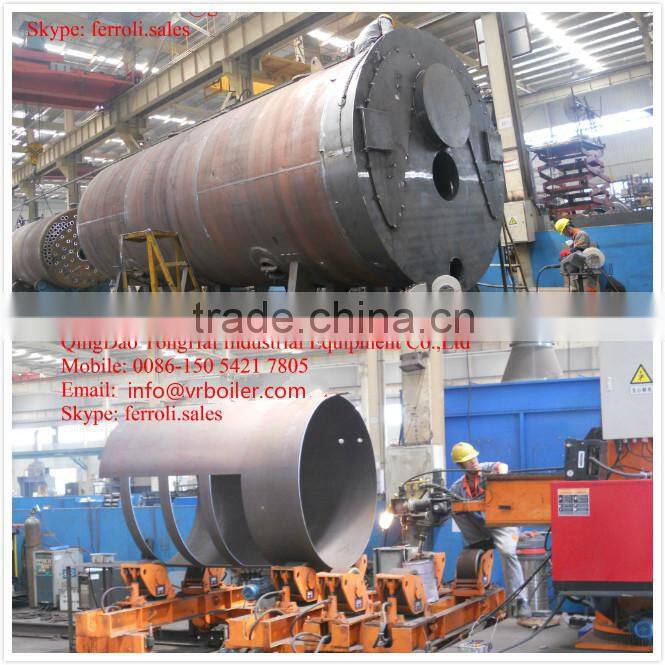

working shop:

High quality fire tube cheap oil boiler

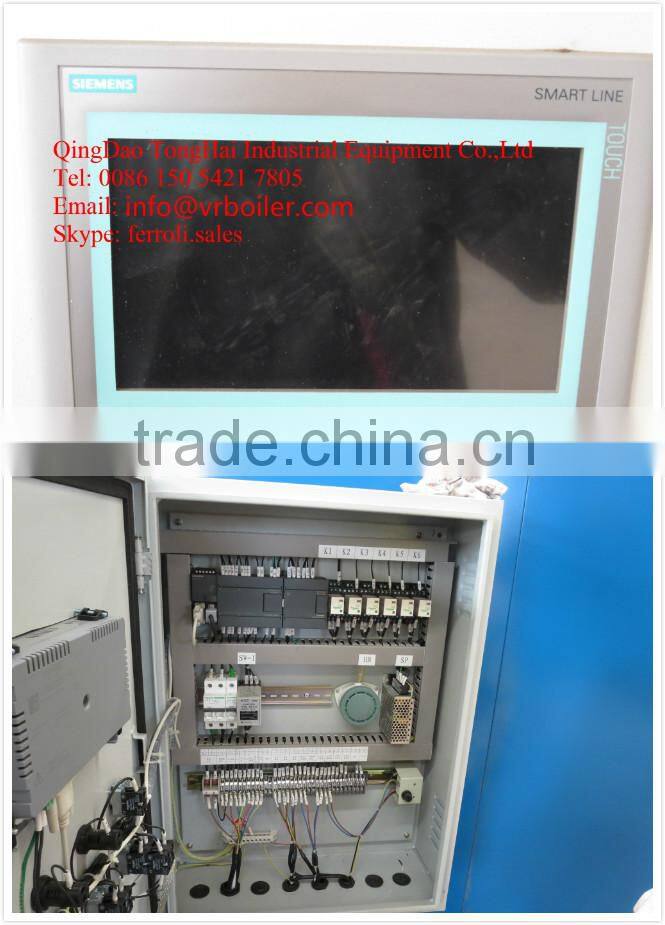

Germay SIMENS PLC control:

High quality fire tube cheap oil boiler

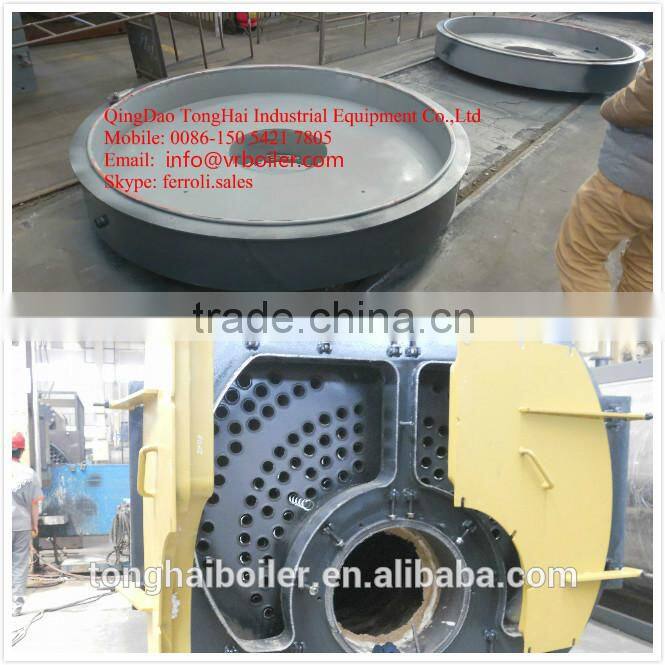

Movable doors for easy inspection & maintenance of boiler

High quality fire tube cheap oil boiler



Quality Guarantee



Strength calculation report with applied materials information;



100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;



100% X-ray inspection report (welding seam): to ensure the quality of the entire boiler;



Hydraulic test report: ensure the standard working pressure and safety;



Our Services



1, Boiler body warranty 3 years.



2, Study the needs of customers, help customers decision.



3, Provide the completely design drawing and technical training   service.



4, Supply all spare parts in boiler working life.



5, Installation and commissioning service.





FAQ

How much steam capacity do you want ?

Answer: 0.5Ton/hr to 100Ton/hr

How much working pressure it the boiler ?

Answer: 4bar ~ 75bar

What kind of fuel do you prefer ?

Answer: L.P.G., Natural Gas, Light Diesel, Heavy Oil etc

what are the electric conditions in your market ? Voltage, HZ etc

Answer: 380V, 50HZ, 3Phase

Which burner our boiler use?

Answer: WEISHAUPT burner, RIELLO burner,UNIGAS burner,BALTUR burner.
