Used Low Pressure Coal Fired Steam Boiler

Used Low Pressure Coal Fired Steam Boiler thumbnail-1
Used Low Pressure Coal Fired Steam Boiler thumbnail-2
Used Low Pressure Coal Fired Steam Boiler photo-1
Used Low Pressure Coal Fired Steam Boiler photo-2
US$ 2,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Qingdao Tonghai Industrial Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao or TianJin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure Low Pressure
Style Horizontal
Fuel Coal-fired
Place of Origin Shandong, China
Brand Name TongHai
Model Number DZL
Output Steam
Dimension(L*W*H) 10*4.8*3.5m
Weight 30t
Certification ASME, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

coal fired steam boiler:



1.The boiler adopt single drum.

2.monolayer arrangement,

pact structure, sufficient output,

4.operational safety, short construction period, and low installation cost .

5.long boiler life more than 20 years.

6. The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas. At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness, as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.

 service



Boiler body and auxiliary boiler:

Used low pressure coal fired steam boiler



 technical specifications



Model/Parameter/Item

DZL

2-0.7-AII

DZL

2-1.25-AII

DZL

4-1.25-AII

DZL

4-1.6-AII

DZL

6-1.25-AII

Rated capacity

t/h

2

2

4

4

6

Operation pressure

Mpa

0.7

1.25

1.25

1.6

1.25

Steam temperature

C

169.6

194

194

203

194

Water-inlet temperature

C

20

20

20

60

20

Heating efficiency

%

77.4

77.4

81

81

77.4

Area of stoker

m2

3.04

3.2

5.4

5.4

7.48

Steam valve diameter

mm

PN1.6

DN80

PN1.6

DN80

PN1.6

DN100

PN2.5

DN100

PN1.6

DN125

Water inflow valve

diameter

mm

PN1.6

DN40

PN1.6

DN40

PN1.6

DN50

PN2.5

DN50

PN1.6

DN50

Fuel

Coal available



II type bitumite,lcv:17700-21000KJ/kg

Consumption

kg/h

290

290

580

580

960

Dimension of biggest parts for shipment

(LxWxH)

m

5.82*2.1*3.22

5.82*2.1*3.22

6.5*2.66*3.52

6.5*2.66*3.52

7.1*3*3.65

Weight of biggest

parts for shipment

t

18

19

27

29

32

Overall dimension of

Assembled boiler

(LxWxH)

m

6.5*4.0*3.7

6.5*4.0*3.7

7.2*4.5*4.0

7.2*4.5*4.0

7.9*4.5*4.1

Water supply

Model



11/2GC-5*4

1 1/2GC-5*4

11/2GC-5*7

1 1/2GC-5*7

2GC-5*6

Motor power

kw

3

7.5

7.5

11

15

Blast

fan

Model



G6-41-13No

5.4A

G6-41-13No

5.4A

G6-41-13No

6.4A

G6-41-13No

6.4A

G6-41-13No

7.1A

Flow

m3/h

4358-2310

4358-2310

7358-3596

7358-3596

10354-5349

Pressure

Pa

994-1254

994-1254

1436-1181

1436-1181

2270-1697

Motor power

kw

3

3

5.5

5.5

7.5





boiler package:

Used low pressure coal fired steam boiler



 Auxiliaries:







 boiler parts packages:

Used low pressure coal fired steam boiler

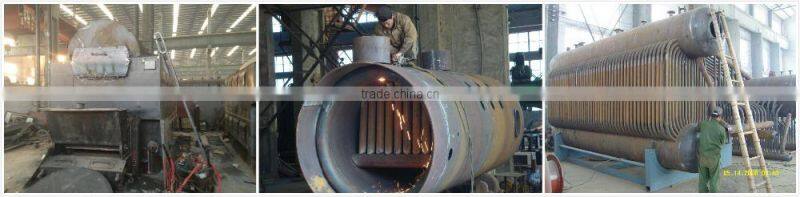

 working shop:

Used low pressure coal fired steam boiler

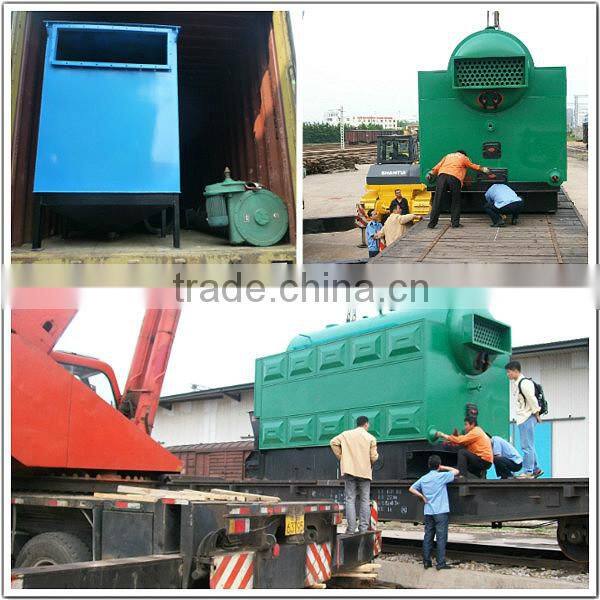

 shipping:

Used low pressure coal fired steam boiler





Horizontal automatic coal fired steam boiler main purpose is to provide high quality steam and motive power for industrial production, such as textile, papermaking, rubber, food, hospital and other industries.

Compared with the other domestic capacity products ,we have the advantages of reasonable and compact structure and low steel consumption.






Our Services



1,We can help design and manufacture boilers according to customers’ special requirements.



2,Engineers are available service overseas



3,Ferroli boiler body warranty 3 years



4,Engineers 24hours online













FAQ







---   How much capacity do you want ?



---   How much working pressure it the boiler ?



---   And, what are the electric conditions in your market ? Voltage, HZ etc
